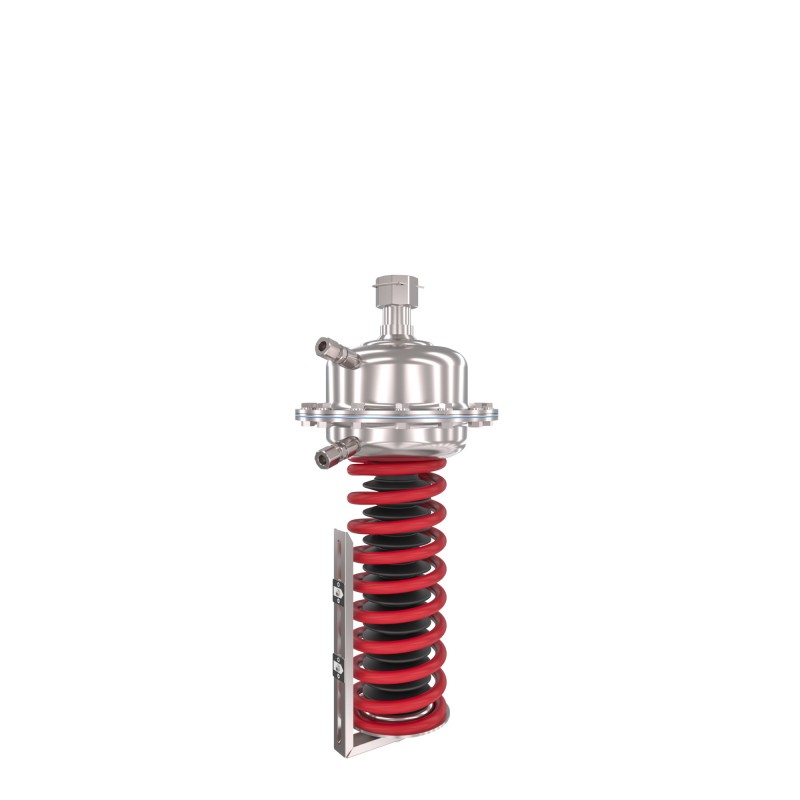

003G5634 DANFOSS HEATING AFD 2 PN40 8-16 32cm2 black
003G5634
DANFOSS HEATING
AFD 2 PN40 8-16 32cm2 black
AFD 2, PN 40, 8 bar - 16 bar, 32 cm²
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Pressure reduction actuator
Product details
| Gross weight | 13.5 Kilogram |
| Net weight | 12.3 Kilogram |
| Volume | 52.2 Liter |
| EAN | 5710104523200 |
| Type | AFD 2 |
| Product group | Actuators - Pressure Flow |
| Gross weight | 13.5 Kilogram |
| Net weight | 12.3 Kilogram |
| Volume | 52.2 Liter |
| EAN | 5710104523200 |
| Type | AFD 2 |
| Product group | Actuators - Pressure Flow |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 32 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | Pressure reduction actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 16 bar |
| Differential pressure setting [bar] [Min] | 8 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 40 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 40 |
| Pressure controller | Press. reduction controller |
| Pressure nominal [bar] | 40 bar |
| Pressure setting range [bar] [Max] | 16 bar |
| Pressure setting range [bar] [Min] | 8 bar |
| Setting Type | Adjustable |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 32 cm² |
| Application | District heating and cooling |
| Body material | Steel, mat. No. 1.0345, zinc plated |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | Pressure reduction actuator |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 65 mm |
| Differential pressure setting [bar] [Max] | 16 bar |
| Differential pressure setting [bar] [Min] | 8 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 40 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 40 |
| Pressure controller | Press. reduction controller |
| Pressure nominal [bar] | 40 bar |
| Pressure setting range [bar] [Max] | 16 bar |
| Pressure setting range [bar] [Min] | 8 bar |
| Setting Type | Adjustable |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003G5634 003G5634 EN_003G5624.pdf | 2 Mbytes |
|
