ABBTertiary / Industrial2CSR275080R1324 ABB I.com.DS200M 1p+N C 32A AC 15kA 30mA

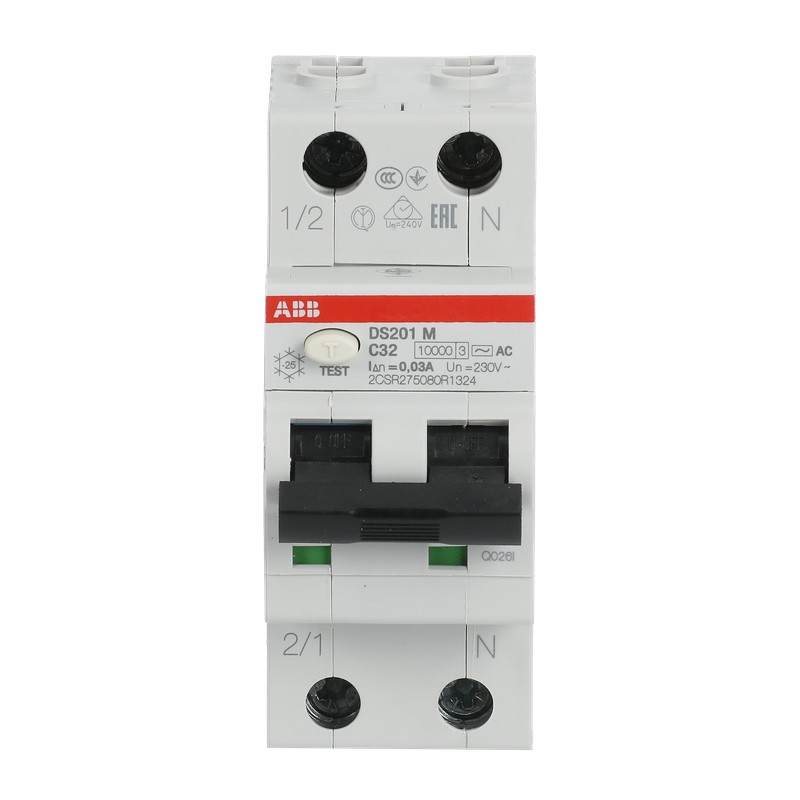

ABB 2CSR275080R1324 2CSR275080R1324 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSR275080R1324 ABB I.com.DS200M 1p+N C 32A AC 15kA 30mA

Reference: 2CSR275080R1324

Manufacturer: ABB

Description:

I.com.DS200M 1p+N C 32A AC 15kA 30mA
Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 32 A - C - Type AC

Categories:

  • Circuit breakers and fuses > Earth leakage circuit breaker
  • ABB > Tertiary / Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 92,15 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108470A2163
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 75.20 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
UL 2799 Zero Waste To Landfill Validation available
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %
Recycled Paper - 00 %
Chemically Recycled Polymer - 00 %
Extended Product LifetimeProduct Durability
End Of Life Disassembling Instructions9AKK108469A2268
Environmental Product Declaration - EPD9AKK108468A5756
Technical
Type of Residual CurrentType AC
Test Voltage (Ut)Minimum 170 V
Maximum 264 V
Dielectric Test Voltage2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)15 kA
Rated Residual Breaking Capacity (IΔm)EN 61009-1 6000 A
IEC 61009-1 4500 A
Rated Service Short-Circuit Breaking Capacity (Ics)11.2 kA
Maximum Surge Current0 kA
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail2
Fault IndicationBlue Flag on Toggle
Operating CharacteristicInstantaneous
Position of Neutral TerminalsRight
Tightening Torque2.8 N·m
Accessory TypeAuxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device
Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions
Housing TypeInsulation group I - II, RAL 7035
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Accessories AvailableYes
Number of Batteries0
Connecting CapacityBusbar 10 ... 10 mm²
Stranded 0.75 ... 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Wire Stripping Length12 mm
Terminal TypeScrew Terminals
Electrical
Tripping CharacteristicC
Rated Operational Voltageacc. to IEC 60898-1 240 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)32 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity10 kA
Rated Conditional Short-Circuit Current (Inc)15 kA
Rated Frequency (f)50 / 60 Hz
Power LossAverage per Pole 5.0 W
Phase Pole 6.4 W
Neutral Pole 3.5 W
Total 9.9 W
Overvoltage CategoryIII
Material Compliance
RoHS Declaration9AKK106713A5588
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20211115
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -25 … 55 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
IP40
Pollution Degree2
Environmental Conditions28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
Environmental Information2CSC422002K2701
Dimensions
Width in Number of Modular Spacings2
Product Net Width35 mm
Product Net Height85 mm
Product Net Depth / Length69 mm
Product Net Weight200 g
Built-In Depth (t2)69 mm
Engineering
EPLAN Data9AAC554444_EPLAN
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight225 g
Certificates and Declarations
ABS Certificate9AKK107991A2823
CB Certificate9AKK107492A6064
9AKK107492A6065
CCC Certificate9AKK107492A6069
Declaration of Conformity - CE9AKK106713A5588
DNV GL Certificate9AKK107680A3457
9AKK107680A3456
EAC Certificate9AKK107492A6071
9AKK107991A7755
GOST Certificate9AKK107992A1640
IMQ Certificate9AKK107492A6075
ÖVE Certificate9AKK107492A6086
RMRS Certificate9AKK107680A3454
9AKK107680A3455
Installation
Instructions and Manuals9AKK107492A6006
Mounting TypeDIN-Rail
Mounting PositionAny
Popular Downloads
Data Sheet, Technical Information9AKK107492A6187
External Classifications and Standards
ETIM 9EC000905 - Earth leakage circuit breaker
ETIM 10EC000905 - Earth leakage circuit breaker
UNSPSC39121601
eClassV11.0 : 27142207
Object Classification CodeF
StandardsIEC/EN 61009-1, IEC/EN 61009-2-1
