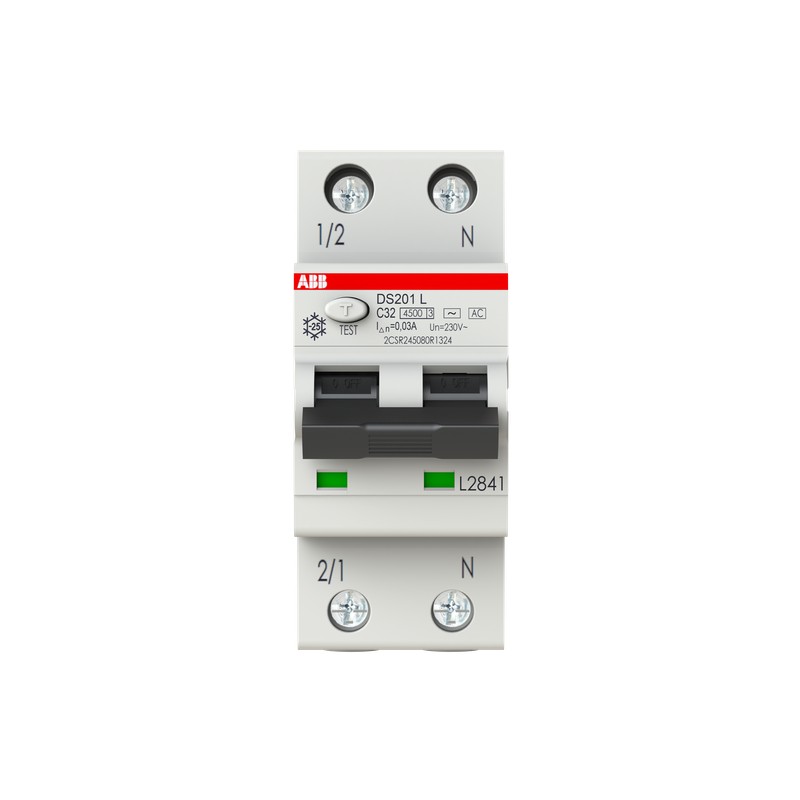

ABB 2CSR245080R1324 2CSR245080R1324 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSR245080R1324 ABB I.com.DS200L 1p+N C 32A AC 6kA 30mA

Reference: 2CSR245080R1324

Manufacturer: ABB

Description:

I.com.DS200L 1p+N C 32A AC 6kA 30mA
The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).

Categories:

  • Circuit breakers and fuses > Earth leakage circuit breaker
  • ABB > Tertiary / Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 70,24 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

b'

General Information

Extended Product Type:
DS201 L C32 AC30
Product ID:
2CSR245080R1324
EAN:
8012542637615
Catalog Description:
DS201 L C32 AC30 - RCBO
Long Description:
The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
\n

Technical

Standards:
IEC/EN 61009-1, IEC/EN 61009-2-1
Type of Residual Current:
AC type
Number of Poles:
2
Number of Protected Poles:
1
Rated Current (In):
32 A
Rated Current Sensitivity:
0.03 A
Rated Voltage (Ur):
230 V
Rated Insulation Voltage (Ui):
500 V
Overvoltage Category:
III
Pollution Degree:
2
Test Voltage (Ut):
170 … 264 V
Rated Frequency (f):
50 … 60 Hz
Rated Short-Circuit Capacity (Icn):
4.5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
4.5 kA
Rated Residual Breaking Capacity (IΔm):
EN 61009-1 4500 A

IEC 61009-1 4500 A
Primary Rated Impulse Withstand Voltage:
4 kV
Dielectric Test Voltage:
2.5 kV
Tripping Characteristic:
C
Energy Limiting Class:
3
Housing Type:
Insulation group I - II, RAL 7035
Actuator Type:
Toggle - Insulation group II, Black RAL 9005,sealable in ON-OFF positions
Contact Position Indication:
Red ON / Green OFF
Fault Indication:
Blue flag on toggle
Electrical Endurance:
10000 cycle
Mechanical Endurance (Nendu):
20000 cycle
Degree of Protection:
Terminals IP20

Housing IP40
Resistance to Shock acc. to IEC 60068-2-27:
25g / 2 shocks / 13 ms
Resistance to Vibrations acc. to IEC 60068-2-6:
0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
Environmental Conditions:
28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %
Reference Ambient Air Temperature:
30 °C
Terminal Type:
Screw Terminals
Screw Terminal Type:
Failsafe Bi-directional Cylinder-lift Terminal
Cable Size:
25 mm²
Connecting Capacity:
Busbar 10/10 mm²

Stranded 0.75 … 25 mm²

Flexible with Ferrule 0.75 … 16 mm²

Flexible 0.75 … 16 mm²
Tightening Torque:
2.8 N·m
Wire Stripping Length:
12 mm
Mounting Type:
on DIN rail EN 60715 (35mm) by means of mounting clip
Mounting Position:
Any
Power Supply Connection:
Arbitrary
Position of Neutral Terminals:
Right
Power Loss:
6.4 W
Number of Modular Spacings per DIN Rail:
2
Accessory Type:
Auxiliary contact

Signal contact / auxiliary contact

Shunt trip

Auxiliary contact for bottom fitting

Undervoltage release

Overvoltage release

Motor operating device

Environmental

Ambient Air Temperature:
Operation -25...55 °C

Technical UL/CSA

Short-Circuit Current Rating (SCCR):
0.03 A

Dimensions

Product Net Width:
0.035 m
Product Net Height:
0.085 m
Product Net Depth / Length:
0.069 m
Product Net Weight:
0.200 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
40 mm
Package Level 1 Height:
106 mm
Package Level 1 Depth / Length:
80 mm
Package Level 1 Gross Weight:
225 g
Package Level 1 EAN:
8012542637615
Package Level 2 Units:
5 piece
Package Level 2 Width:
200 mm
Package Level 2 Height:
106 mm
Package Level 2 Depth / Length:
80 mm
Package Level 2 Gross Weight:
1125 g
Package Level 2 EAN:
8012542566816

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363030

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n9AKK106713A5588
Environmental Information:\n2CSC422002K2701
Instructions and Manuals:\n9AKK107492A6006
RoHS Information:\n2CSC422002K2701

Popular Downloads

Data Sheet, Technical Information:\n9AKK107492A6187
Instructions and Manuals:\n9AKK107492A6006

Classifications

Object Classification Code:
Q
ETIM 6:
EC000905 - Earth leakage circuit breaker
ETIM 7:
EC000905 - Earth leakage circuit breaker
\n
'

ETIM for 2CSR245080R1324 Circuit breakers and fuses (EC000905)

Feature nameNumber of poles (total) (EF008618)
Feature value2
Feature nameNumber of protected poles (EF005548)
Feature value1
Feature nameRated voltage (EF000228)
Feature value240 V
Feature nameRated insulation voltage Ui (EF001366)
Feature value500 V
Feature nameRated impulse withstand voltage Uimp (EF011980)
Feature value4 kV
Feature nameRated current (EF000227)
Feature value32 A
Feature nameRated fault current (EF002358)
Feature value0.03 A
Feature nameLeakage current type (EF002560)
Feature valueAC
Feature nameCurrent limiting class (EF002568)
Feature value3
Feature nameRated short-circuit breaking capacity according to EN 61009 (EF012628)
Feature value4.5 kA
Feature nameRated short-circuit breaking capacity according to IEC 60947-2 (EF006065)
Feature value6 kA
Feature nameRated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981)
Feature value4.5 kA
Feature nameDisconnection characteristic (EF012587)
Feature valueUndelayed
Feature nameSurge current capacity (EF002564)
Feature value0 kA
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameFrequency (EF005455)
Feature value50/60 Hz
Feature nameRelease characteristic (EF000889)
Feature valueC
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueYes
Feature nameWith interlocking device (EF007385)
Feature valueNo
Feature nameOver voltage category (EF002569)
Feature value3
Feature namePollution degree (EF002570)
Feature value2
Feature nameAmbient temperature during operating (EF007515)
Feature value-25 °C
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameBuilt-in depth (EF000218)
Feature value69 mm
Feature nameAnti-nuisance tripping version (EF009497)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value0.75 mm²

DATASHEET - PDF

Title
Size
Type
2CSR245080R1324 2CSR245080R1324 EN_2CSR245080R1324.pdf
501 Kbytes
PDF MINIATURE CIRCUIT BREAKERS EN
37 Mbytes
