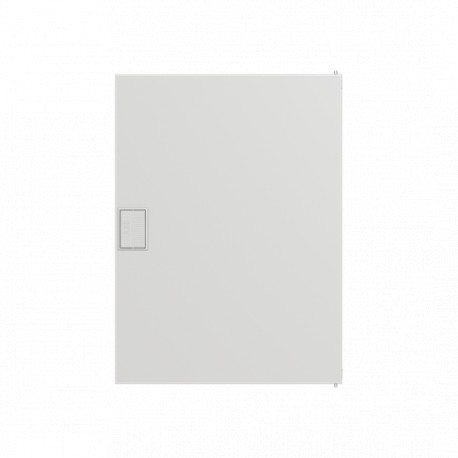

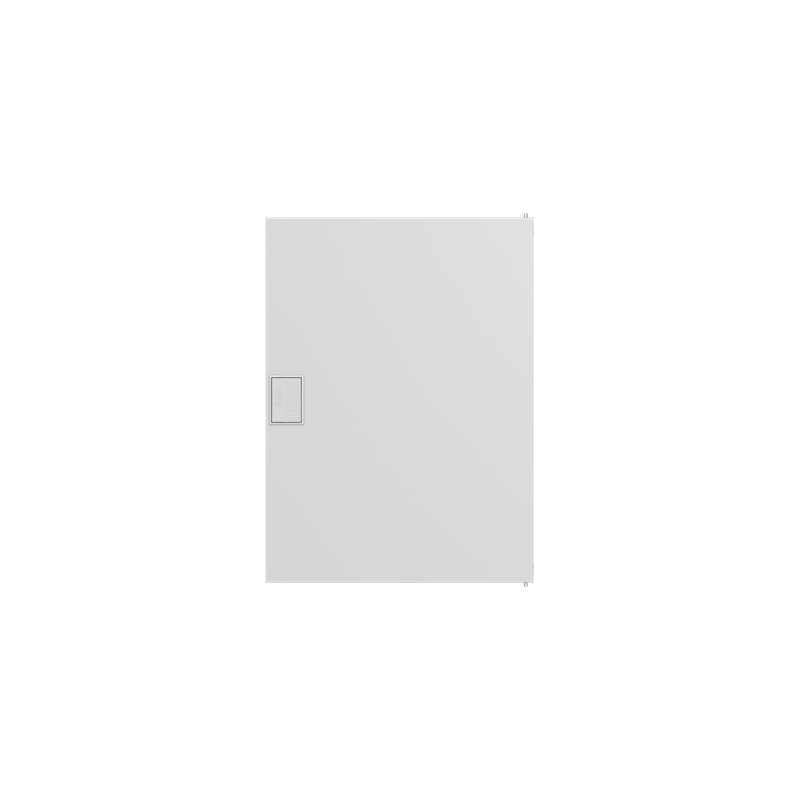

ABB 2CPX031150R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX031150R9999 ABB AZT620 AK600 Door 2F RAL 9016

Code: 2CPX031150R9999

Manufacturer: ABB

Description:

AZT620 AK600 Door 2F RAL 9016
Enclosure accessories UK600 / AK600 accessories, 24 modules, 2 row(s), IP40, Door: Single, Steel Sheet, Dimensions: 425 mm x 311 mm x 13 mm

Categories:

  • Cabinet enclosures > Door/operating panel (switchgear cabinet)
  • ABB > Residential boxes

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 18,84 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical
Model NumberProtective door
Number of Rows2
Accessory Typedoor
Enclosure TypeEnclosure accessories
Door TypeSingle
Accessories AvailableYes
DIN Place Units24
Design
Surface FinishingPowder-coated
Materialsheet steel
Door MaterialSteel Sheet
ColorTraffic white
Number of Modules24
Material Compliance
RoHS Declaration2CPC100018X0201
2CPC100022X0202
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903;20230921
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Business
Environmental
Degree of ProtectionIP40
Protection ClassIsolated (Class II)
Dimensions
Product Net Width311 mm
Product Net Height425 mm
Product Net Depth / Length13 mm
Product Net Weight1.137 kg
Section Width1
Dimension Diagram2CPC000010D0201
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight1.182 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100018X0201
2CPC100022X0202
Installation
Instructions and Manuals2CPC140003M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 10EC000747 - Door/operating panel (enclosure/cabinet)
eClassV11.0 : 27182204
Object Classification CodeU

ETIM for 2CPX031150R9999 Cabinets and enclosures (EC000747)

Feature nameModel (EF000010)
Feature valueProtective door
Feature nameVersion as glazed door (EF006966)
Feature valueNo
Feature nameVersion as door for disconnecting switch interlocking (EF006967)
Feature valueNo
Feature nameWidth (EF000008)
Feature value311 mm
Feature nameHeight (EF000040)
Feature value425 mm
Feature nameDepth (EF000049)
Feature value13 mm
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameColour (EF000007)
Feature valueWhite
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40

DATASHEET - PDF
