ABBRack "Megamax-Emax"1SDA121090R1 ABB E4.2S/E10 3200 Ekip Dip LSI 3p FHR

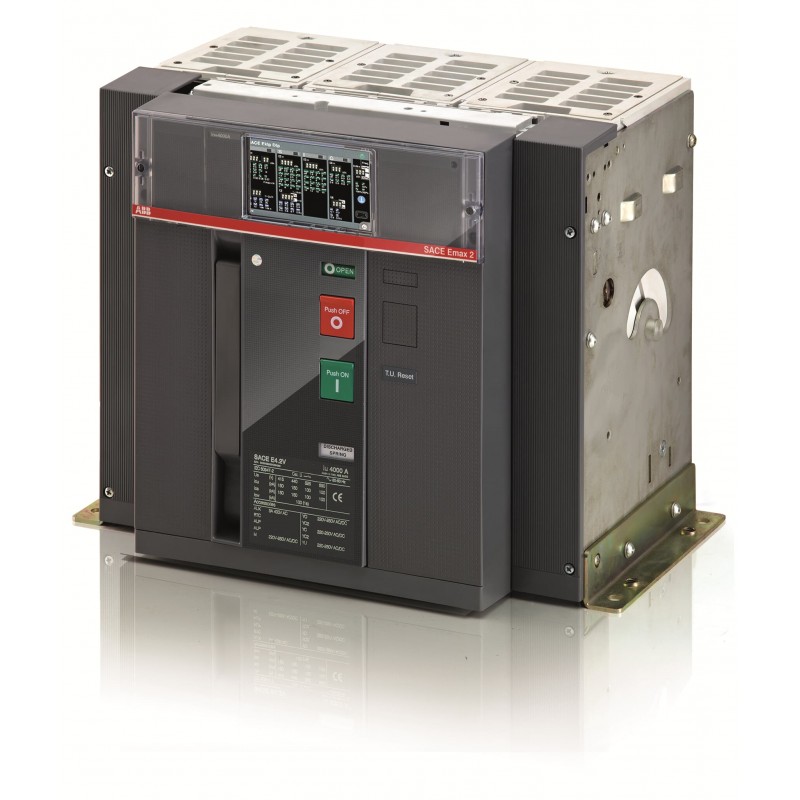

ABB 1SDA121090R1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA121090R1 ABB E4.2S/E10 3200 Ekip Dip LSI 3p FHR

Code: 1SDA121090R1

Manufacturer: ABB

Description:

E4.2S/E10 3200 Ekip Dip LSI 3p FHR
CIRCUIT BREAKER SACE EMAX2 E4.2S/E10 3200 FIXED THREE-POLE 1000V WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 3200A FITTED WITH: 4 AUXILIARY CONTACTS AND REAR HORIZONTAL TERMINALS

Categories:

  • Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
  • ABB > Rack "Megamax-Emax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 13.076,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Extended Product Type:
    E4.2S/E10 3200 Ekip Dip LSI 3p FHR
  • Product ID:
    1SDA121090R1
  • EAN:
    8056221156820
  • Catalog Description:
    E4.2S/E10 3200 Ekip Dip LSI 3p FHR
  • Long Description:
    CIRCUIT BREAKER SACE EMAX2 E4.2S/E10 3200 FIXED THREE-POLE 1000V WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 3200A FITTED WITH: 4 AUXILIARY CONTACTS AND REAR HORIZONTAL TERMINALS

Circular Value

Environmental

Ordering

  • EAN:
    8056221156820
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362090

Dimensions

  • Product Net Width:
    384mm
  • Product Net Height:
    371mm
  • Product Net Depth / Length:
    270mm
  • Product Net Weight:
    56kg

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    515 mm
  • Package Level 1 Height:
    600 mm
  • Package Level 1 Depth / Length:
    785 mm
  • Package Level 1 Gross Weight:
    95 kg
  • Package Level 1 EAN:
    8056221156820

Additional Information

  • Current Type:
    AC
  • Electrical Durability:
    Ue = 1000 V 1000 cycle
    10 cycles per hour
  • Mechanical Durability:
    20000 cycle
    60 cycles per hour
  • Number of Poles:
    3
  • Power Loss:
    425 W
  • Product Main Type:
    SACE Emax 2
  • Product Name:
    Air Circuit Breaker
  • Product Type:
    Air Circuit Breaker
  • Rated Current (In):
    3200 A
  • Rated Voltage (Ur):
    1000 V
  • Rated Impulse Withstand Voltage (Uimp):
    15 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V AC
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (800 V AC) 50 kA
    (1000 V AC) 50 kA
  • Rated Short-time Withstand Current Low Voltage (Icw):
    for 1 s 50 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (800 V AC) 50 kA
    (1000 V AC) 50 kA
  • Rated Uninterrupted Current (Iu):
    3200 A
  • Release:
    Ekip Dip LSI
  • Release Type:
    EL
  • Remarks:
    E10
  • Short-Circuit Performance Level:
    S
  • Standards:
    IEC
  • Sub-type:
    E4.2
  • Terminal Connection Type:
    Rear flat Horizontal
  • Version:
    F

Certificates and Declarations

Classifications

  • ETIM 7:
    EC000228 - Power circuit-breaker for trafo/generator/installation protection
  • ETIM 8:
    EC000228 - Power circuit-breaker for trafo/generator/installation protection
  • ETIM 9:
    EC000228 - Power circuit-breaker for trafo/generator/installation protection
  • Object Classification Code:
    Q
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)
