SIEMENSVARIADORESSINAMICS G120X6SL3220-3YH68-1CF0 SIEMENS SINAMICS G120X Rated power: 630 kW at 135% 3 s or 110% 60 s, 100% 240 s RFI suppr..

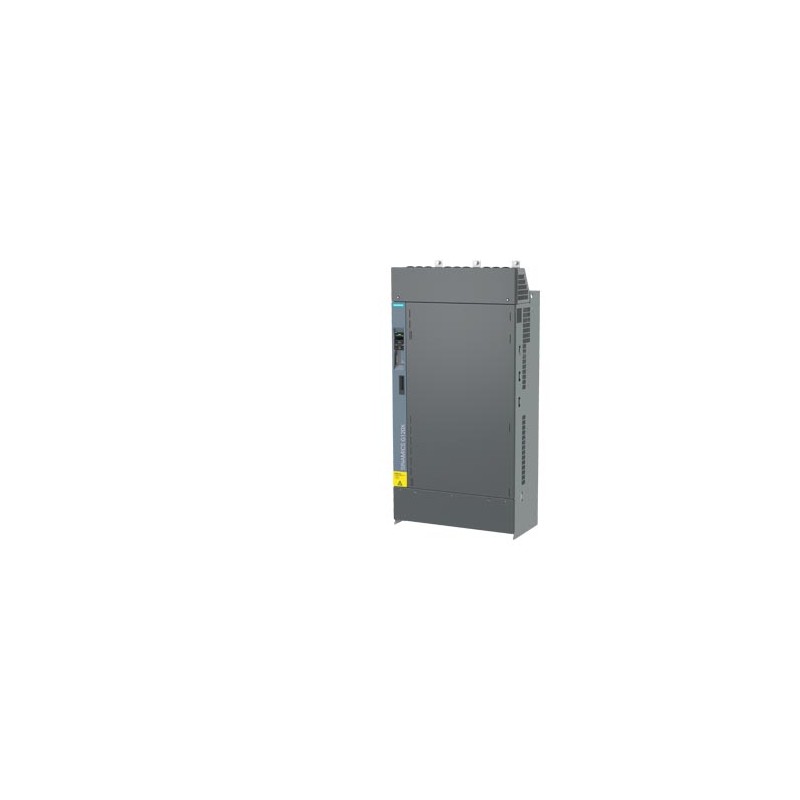

SIEMENS 6SL3220-3YH68-1CF0 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

6SL3220-3YH68-1CF0 SIEMENS SINAMICS G120X Rated power: 630 kW at 135% 3 s or 110% 60 s, 100% 240 s RFI suppr..

Código: 6SL3220-3YH68-1CF0

Fabricante: SIEMENS

Descrição:

SINAMICS G120X Rated power: 630 kW at 135% 3 s or 110% 60 s, 100% 240 s; RFI suppression filter for category C3 3AC500-690V+10/-20% 47-63Hz Ambient temperature 0 to +45 °C Size: FSJ Degree of protection IP20 / UL open type With Intelligent Operator Panel With IO expansion Fieldbus integrated: PROFINET PN, Ethernet IP
SINAMICS G120X Potência nominal: 630 kW a 135% 3 s ou 110% 60 s, 100% 240 s; Filtro de supressão de RFI para categoria C3 3AC500-690V+10/-20% 47-63Hz Temperatura ambiente 0 a +45 °C Tamanho: FSJ Grau de proteção IP20 / UL tipo aberto com operador inteligente pan. Nenhuma possibilidade de reembolso ou cancelamento.

Categorias:

  • SIEMENS > VARIADORES > SINAMICS G120X

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

  • Mais informação
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 46.580,33 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 10-15 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

MAIS INFORMAÇÃO

Dados adicionais

Product
Article Number (Market Facing Number)6SL3220-3YH68-1CF0
Product DescriptionSINAMICS G120X Rated power: 630 kW at 135% 3 s or 110% 60 s, 100% 240 s; RFI suppression filter for category C3 3AC500-690V+10/-20% 47-63Hz Ambient temperature 0 to +45 °C Size: FSJ Degree of protection IP20 / UL open type With Intelligent Operator Panel With IO expansion Fieldbus integrated: PROFINET PN, Ethernet IP
Product familySINAMICS G120X infrastructure converters for HVAC/Water/Wastewater
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group357 / 357
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99H
Standard lead time ex-works25 Day/Days
Net Weight (kg)246,000 Kg
Packaging Dimension1857,00 x 1200,00 x 800,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515674580
UPC195125003514
Commodity Code85044088
LKZ_FDB/ CatalogIDD31.5
Product Group4R53
Group CodeR220
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 11.03.2020
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereof

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

1,2-Benzenedicarboxylic acid, di-C7-11-branched and linear alkyl esters (DHNUP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-02-31-01
eClass7.127-02-31-01
eClass827-02-31-01
eClass927-02-31-01
eClass9.127-02-31-01
ETIM5EC001857
ETIM6EC001857
ETIM7EC001857
ETIM8EC001857

DATASHEET - PDF

Título
Tamanho
Tipo
6SL3220-3YH68-1CF0 PT_6SL3220-3YH68-1CF0.pdf
104 Kbytes
PDF CATALOGUE SIEMENS EN
120 Mbytes
PDF CATALOGUE SIEMENS EN
104 Mbytes
