SIEMENSAUTOMAÇÃOPC SIMATIC RACK / BOX6ES7517-3FP00-0AB0 SIEMENS SIMATIC S7-1500F, CPU 1517F-3 PN/DP, Central processing unit with Work memory 3 M..

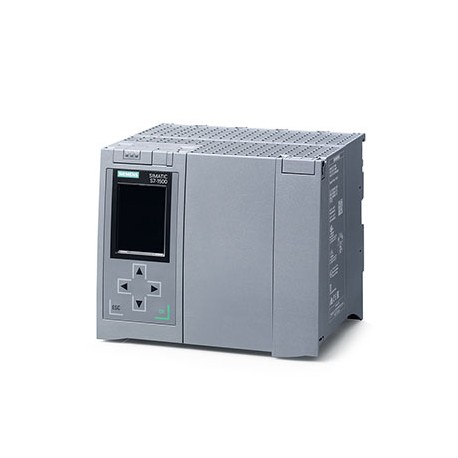

SIEMENS 6ES7517-3FP00-0AB0 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

6ES7517-3FP00-0AB0 SIEMENS SIMATIC S7-1500F, CPU 1517F-3 PN/DP, Central processing unit with Work memory 3 M..

Código: 6ES7517-3FP00-0AB0

Fabricante: SIEMENS

Descrição:

SIMATIC S7-1500F, CPU 1517F-3 PN/DP, Central processing unit with Work memory 3 MB for Program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required
SIMATIC S7-1500F, CPU 1517F-3 PN/DP, módulo central com memória principal de 3 MB para programa e 8 MB para dados, Intefaces: 1. PROFINET IRT com switch de 2 portas, 2. ETHERNET, 3. PROFIBUS, 2 NS Bit-performance, Cartão de Memória SIMATIC é necessário

Categorias:

  • SIEMENS > AUTOMAÇÃO > PC SIMATIC Rack / Box

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

  • Mais informação
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 8.103,62 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 4-6 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

Dados adicionais

Product
Article Number (Market Facing Number)6ES7517-3FP00-0AB0
Product DescriptionSIMATIC S7-1500F, CPU 1517F-3 PN/DP, Central processing unit with Work memory 3 MB for Program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required
Product familyCPU 1517F-3 PN/DP
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group216 / 216
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99H
Standard lead time ex-works110 Day/Days
Net Weight (kg)2,072 Kg
Packaging Dimension19,80 x 22,30 x 15,90
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047623403944
UPC887621836221
Commodity Code85371091
LKZ_FDB/ CatalogIDST73
Product Group4526
Group CodeR152
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 21.07.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-22-07
eClass7.127-24-22-07
eClass827-24-22-07
eClass927-24-22-07
eClass9.127-24-22-07
ETIM5EC000236
ETIM6EC000236
ETIM7EC000236
ETIM8EC000236
IDEA43565
UNSPSC1532-15-17-05

Dados ETIM

ETIM: EC000236 - Unidade base de PLC

Valor Unidade


DATASHEET - PDF

Título
Tamanho
Tipo
6ES7517-3FP00-0AB0 EN_6ES7517-3FP00-0AB0.pdf
284 Kbytes
PDF CATALOGUE SIEMENS EN
120 Mbytes
PDF CATALOGUE SIEMENS EN
104 Mbytes
