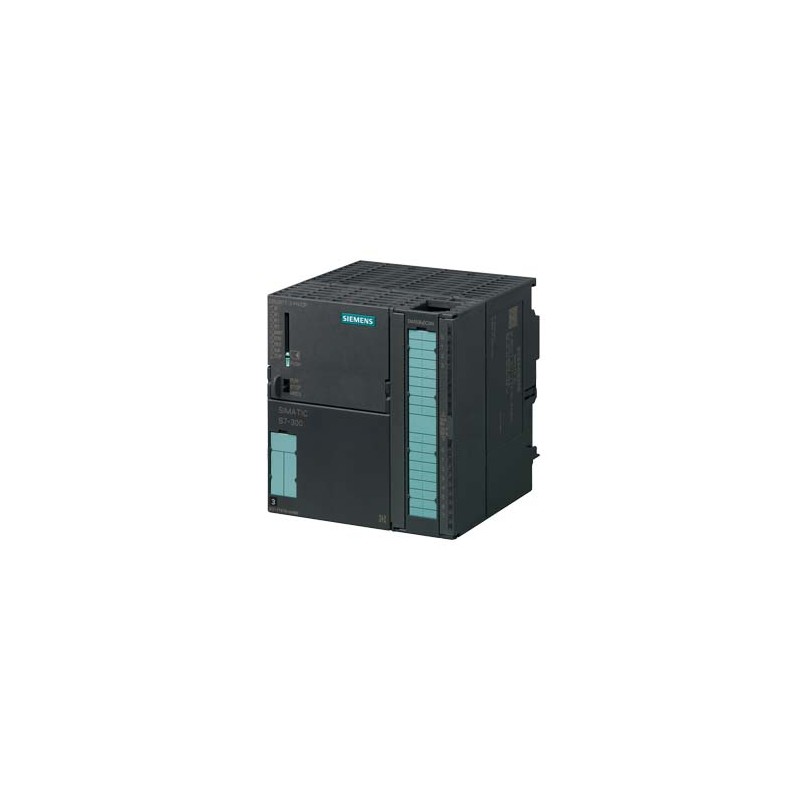

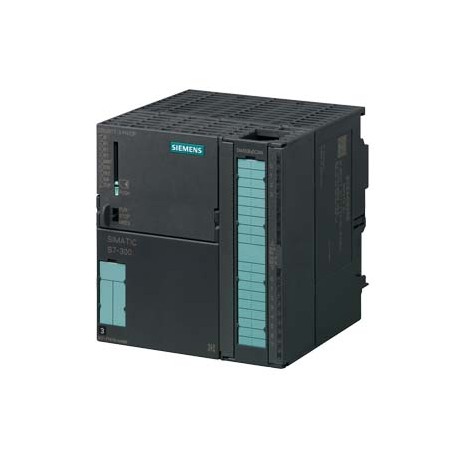

6ES7317-7TK10-0AB0 SIEMENS SIMATIC S7-300, CPU 317T-3 PN/DP, Central processing unit for PLC and technology .. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

6ES7317-7TK10-0AB0 SIEMENS SIMATIC S7-300, CPU 317T-3 PN/DP, Central processing unit for PLC and technology ..

6ES7317-7TK10-0AB0

SIEMENS

SIMATIC S7-300, CPU 317T-3 PN/DP, Central processing unit for PLC and technology tasks, 1024 KB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface DP (drive), 3rd interface Ethernet PROFINET with 2-port switch, Integr. I/O for technology, Front connector (1x 40-pole) and Micro Memory Card min. 8 MB required

SIMATIC S7-300, CPU 317T-3 PN/DP, CPU para PLC e tarefas tecnológicas. memória principal 1024 KByte, Interface 1 MPI/DP 12MBIT/S, Interface 2 DP(DRIVE), Interface 3 Ethernet/PROFINET com switch de 2 portas. Requer periferia adicional para tecnologia. Conector frontal (1 x 40 polos) e cartão de memória micro de 8 MB

Mais detalhes


AUTOMAÇÃO > SIMATIC - Produto S7 descontinuado

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


Dados adicionais

Product
Article Number (Market Facing Number)6ES7317-7TK10-0AB0
Product DescriptionSIMATIC S7-300, CPU 317T-3 PN/DP, Central processing unit for PLC and technology tasks, 1024 KB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface DP (drive), 3rd interface Ethernet PROFINET with 2-port switch, Integr. I/O for technology, Front connector (1x 40-pole) and Micro Memory Card min. 8 MB required
Product familyCPU 317T-3 PN/DP
Product Lifecycle (PLM)PM300:Active Product
PLM Effective DateProduct phase-out since: 01.10.2023
Price data
Region Specific PriceGroup / Headquarter Price Group230 / 230
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99H
Standard lead time ex-works70 Day/Days
Net Weight (kg)0,713 Kg
Packaging Dimension13,10 x 15,10 x 13,10
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4025515082545
UPC887621409296
Commodity Code85371091
LKZ_FDB/ CatalogIDST73
Product Group4030
Group CodeR132
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 28.05.2013
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Perfluorobutane sulfonic acid (PFBS) and its salts

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-22-07
eClass7.127-24-22-07
eClass827-24-22-07
eClass927-24-22-07
eClass9.127-24-22-07
ETIM5EC000236
ETIM6EC000236
ETIM7EC000236
ETIM8EC000236
IDEA43565
UNSPSC1443-20-15-03
UNSPSC1532-15-17-05

Dados ETIM

ETIM: EC000236 - Unidade base de PLC

Valor Unidade



Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
6ES7317-7TK10-0AB0 6ES7317-7TK10-0AB0 PT_6ES7317-7TK10-0AB0.pdf 265 Kbytes 6ES7317-7TK10-0AB0 6ES7317-7TK10-0AB0 PT_6ES7317-7TK10-0AB0.pdf
