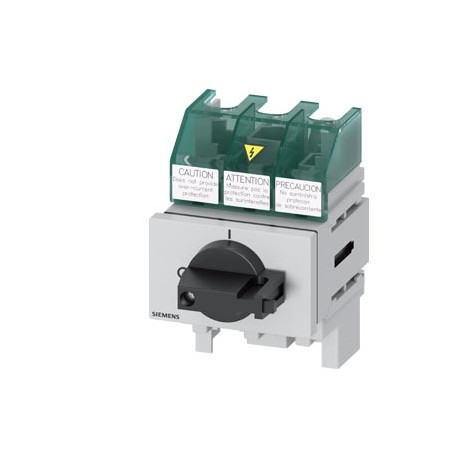

SIEMENS 3LD5000-0TK11 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

3LD5000-0TK11 SIEMENS SENTRON, Molded case switch 3LD5 UL, Main switch, 3-pole, certified according to UL489..

Código: 3LD5000-0TK11

Fabricante: SIEMENS

Descrição:

SENTRON, Molded case switch 3LD5 UL, Main switch, 3-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 30A, SCCR 50kA at 480VAC, Operating power at 480VAC 3-phase: 20hp, IEC: 32A, Operating power at AC-23A at 400V: 15kW, floor mounting with direct handle, black, incl. terminal covers for the infeed side
SENTRON, 3LD5 UL switch-disconnector, interruptor principal, 3 polos, aprovado de acordo com UL 489, UL 60947-4-1 e IEC 60947-3, UL: 30 A, SCCR 50 kA a 480 V AC, potência operacional a 480 V AC trifásica: 20 cv, IEC: 32 A, potência operacional com 23 A AC a 400 V: 15 kW, fixação baseada em unidade direta, preta, inclui tampas de cobertura para o lado da alimentação. Nenhuma possibilidade de reembolso ou cancelamento.

Categorias:

  • SIEMENS > Protecção Baixa Tensão > Seccionadores e disjuntores

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

  • Mais informação
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 146,35 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 4-6 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

Dados adicionais

Product
Article Number (Market Facing Number)3LD5000-0TK11
Product DescriptionSENTRON, Molded case switch 3LD5 UL, Main switch, 3-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 30A, SCCR 50kA at 480VAC, Operating power at 480VAC 3-phase: 20hp, IEC: 32A, Operating power at AC-23A at 400V: 15kW, floor mounting with direct handle, black, incl. terminal covers for the infeed side
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12R / 1CL
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,334 Kg
Packaging Dimension93,00 x 80,00 x 70,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869575384
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5887
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directivenot available
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM5EC000216
ETIM6EC000216
ETIM7EC000216
ETIM8EC000216

DATASHEET - PDF
