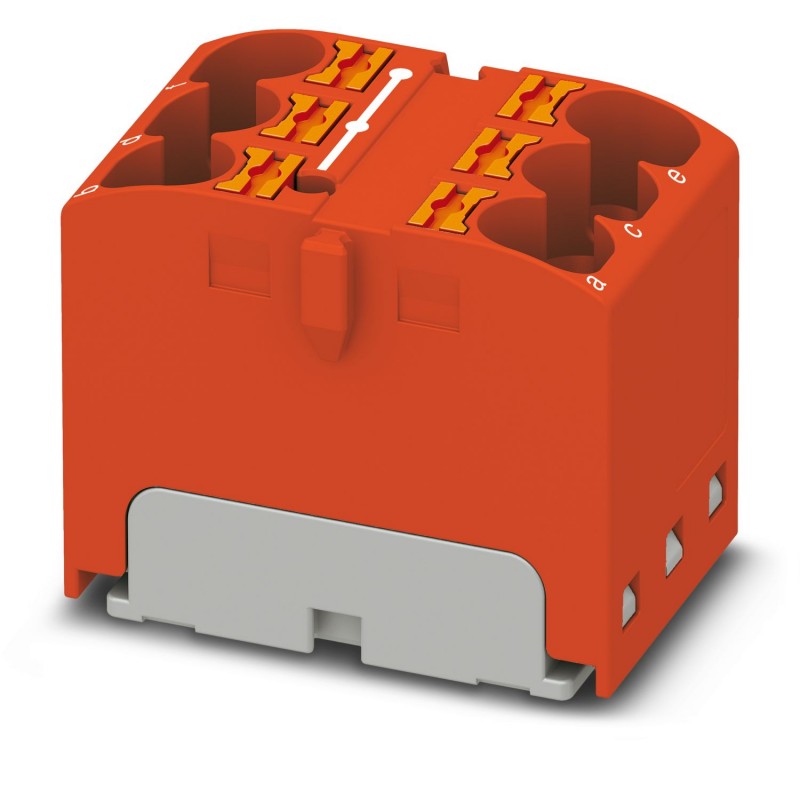

PTFIX 6X4 RD 3273794 PHOENIX CONTACT Bloco de distribuição

Referência: PTFIX 6X4 RD

Código: 3273794

Fabricante: PHOENIX_CONTACT

Descrição:

Bloco de distribuição
Bloco de distribuição, interligado internamente, tensão nominal: 450 V, corrente nominal: 32 A, número de ligações: 6, tipo de ligação: Ligação push-in, secção transversal: 0,2 mm² - 6 mm², tipo de montagem: adaptador de calha de bloqueio, Montagem direta com flange, Antena, cor: vermelho
Distribution block, bridged internally, nom. voltage: 450 V, nominal current: 32 A, number of connections: 6, connection method: Push-in connection, cross section: 0.2 mm2 - 6 mm2, mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: red

Categorias:

  • Blocos de terminais > Terminal de conexão de passagem
  • PHOENIX_CONTACT > Sistema de bloco FIX

Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço total: 37,33 €

Preço unitário: 3,733 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 2-3 semanas.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

Dados técnicos

Notes
Notes on operationthe blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories
General
NoteThe maximum load current of a single clamping unit must not be exceeded.

Product properties
Product typeDistributor terminal block
Number of connections6
Number of rows1
Potentials1
Data management status
Article revision01
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3

Electrical properties
Rated surge voltage6 kV
Maximum power dissipation for nominal condition1.02 W

Connection data
Number of connections per level6
Nominal cross section4 mm²
Rated cross section AWG12
Stripping length10 mm ... 12 mm
Internal cylindrical gageA4
Connection in acc. with standardIEC 60998-2-2
Conductor cross section rigid0.2 mm² ... 6 mm²
Cross section AWG24 ... 10 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.2 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.2 mm² ... 4 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)0.5 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Nominal current32 A
Maximum load current41 A (with 6 mm² conductor cross section)
Maximum total current63 A
Nominal voltage450 V
Connection cross sections directly pluggable
Conductor cross section rigid0.5 mm² ... 6 mm²
Conductor cross section, rigid [AWG]20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.75 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.5 mm² ... 4 mm²

Dimensions
Width18.5 mm
Height28.6 mm
Depth21.7 mm

Material specifications
Colorred (RAL 3001)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Mechanical properties
Mechanical data
Open side panelNo

Mechanical tests
Attachment on the carrier
ResultTest passed
NoteWhen aligning several blocks, it is recommended to either place a DIN rail adapter underneath the connection point or a flange element between the blocks.
For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block.
When using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half.

Environmental and real-life conditions
Needle-flame test
Time of exposure30 s
ResultTest passed
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2018-05
SpectrumService life test category 2, bogie-mounted
Frequencyf1= 5 Hz to f2= 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2018-05
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and regulations
Connection in acc. with standardIEC 60998-2-2

Mounting
Mounting typefor snapping onto a DIN rail adapter
Direct mounting with flange
Free-hanging
