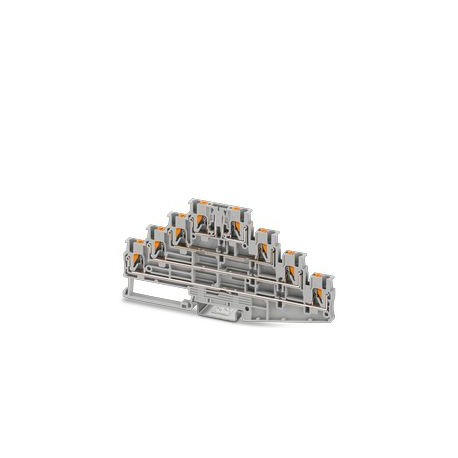

PT 2,5-L/L/L/TG 1336395 PHOENIX CONTACT Bloco Terminal Multi-Andar
PT 2,5-L/L/L/TG
1336395
PHOENIX_CONTACT
50
Bloco Terminal Multi-Andar
Disconnect terminal block, nom. voltage: 500 V, Thermal continuous current Ith: 18 A, connection method: Push-in connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2 - 4 mm2, mounting: NS 35/7,5, NS 35/15, color: gray
Terminais
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Related products
▲Mais informação
▲Dados técnicos
Notes
| General | |
| Note | The max. load current must not be exceeded by the total current of all connected conductors. |
Product properties
| Product type | Disconnect terminal block |
| Number of positions | 4 |
| Number of connections | 8 |
| Number of rows | 4 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 6 kV |
Connection data
| Number of connections per level | 2 |
| Nominal cross section | 2.5 mm² |
| Cross section AWG | (converted acc. to IEC) |
| Stripping length | 8 mm ... 10 mm |
| Internal cylindrical gage | A3 |
| B3 | |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.14 mm² ... 4 mm² |
| Cross section AWG | 26 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.14 mm² ... 4 mm² |
| Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Thermal continuous current Ith | 18 A (with a 2.5 mm² conductor cross section) |
| Maximum load current | 20 A (with 4 mm² conductor cross-section) |
| Nominal voltage | 500 V |
| Nominal cross section | 2.5 mm² |
| Connection cross sections directly pluggable | |
| Conductor cross section rigid | 0.34 mm² ... 4 mm² |
| Conductor cross section, rigid [AWG] | 20 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 2.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 2.5 mm² |
Dimensions
| Width | 5.2 mm |
| End cover width | 2.2 mm |
| Height | 142.4 mm |
| Depth on NS 35/7,5 | 68.6 mm |
| Depth on NS 35/15 | 76.1 mm |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Electrical tests
| Surge voltage test | |
| Test voltage setpoint | 6 kV |
| Result | Test passed |
| Temperature-rise test | |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Result | Test passed |
| Short-time withstand current 2.5 mm² | 0.3 kA |
| Result | Test passed |
| Power-frequency withstand voltage | |
| Test voltage setpoint | 1.89 kV |
| Result | Test passed |
Mechanical properties
| Mechanical data | |
| Open side panel | Yes |
Mechanical tests
| Mechanical strength | |
| Result | Test passed |
| Attachment on the carrier | |
| DIN rail/fixing support | NS 32/NS 35 |
| Result | Test passed |
| Test for conductor damage and slackening | |
| Rotation speed | 10 (+/- 2) rpm |
| Revolutions | 135 |
| Conductor cross section/weight | 0.14 mm² / 0.2 kg |
| 2.5 mm² / 0.7 kg | |
| 4 mm² / 0.9 kg | |
| Result | Test passed |
Environmental and real-life conditions
| Aging | |
| Temperature cycles | 192 |
| 192 | |
| Result | Test passed |
| Test passed | |
| Needle-flame test | |
| Time of exposure | 30 s |
| Result | Test passed |
| Oscillation/broadband noise | |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
| DIN EN 50155 (VDE 0115-200):2022-06 | |
| DIN EN 50155 (VDE 0115-200):2022-06 | |
| Spectrum | Service life test category 1, class B, body mounted |
| Service life test category 2, bogie-mounted | |
| Service life test category 1, class B, body mounted | |
| Frequency | f1= 5 Hz to f2= 150 Hz |
| f1= 5 Hz to f2= 150 Hz | |
| f1= 5 Hz to f2= 150 Hz | |
| ASD level | 0.964 (m/s²)²/Hz |
| Acceleration | 0.964g |
| 0.58g | |
| Test duration per axis | 5 h |
| 5 h | |
| 5 h | |
| Test directions | X-, Y- and Z-axis |
| X-, Y- and Z-axis | |
| X-, Y- and Z-axis | |
| Result | Test passed |
| Test passed | |
| Test passed | |
| Shocks | |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
| DIN EN 50155 (VDE 0115-200):2022-06 | |
| DIN EN 50155 (VDE 0115-200):2022-06 | |
| Pulse shape | Half-sine |
| Half-sine | |
| Half-sine | |
| Acceleration | 5g |
| 5g | |
| 5g | |
| Shock duration | 30 ms |
| 30 ms | |
| 30 ms | |
| Number of shocks per direction | 3 |
| 3 | |
| 3 | |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| X-, Y- and Z-axis (pos. and neg.) | |
| X-, Y- and Z-axis | |
| Result | Test passed |
| Test passed | |
| Test passed | |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and regulations
| Connection in acc. with standard | IEC 60947-7-1 |
Mounting
| Mounting type | NS 35/7,5 |
| NS 35/15 |
