NBC-M8MSD/10,0-93C/R4AC
1423714
PHOENIX_CONTACT
1

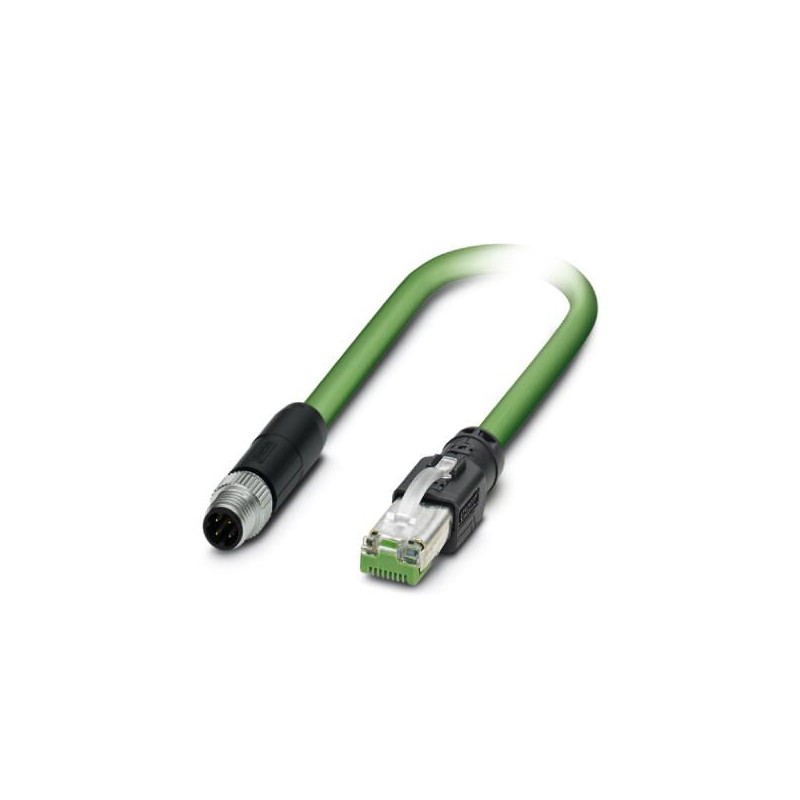

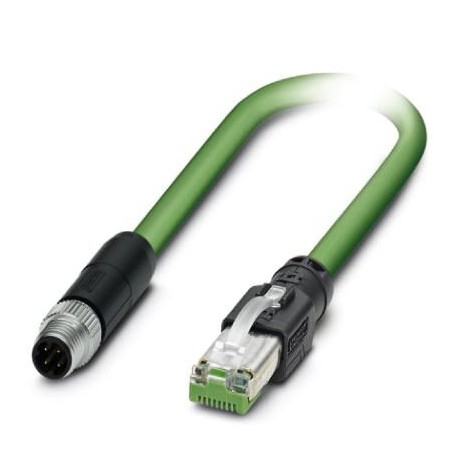

Cabo de rede, PROFINET CAT5 (100 Mbps), EtherCAT
Network cable, PROFINET CAT5 (100 Mbps), EtherCAT
Material de instalação de redes de telecomunicações DNT / FNT > Cabo de conexão de cobre
Cabos, sensores e atuadores
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Obrigado pelo seu interesse nos nossos artigos, esperamos que o prazo indicado seja conveniente para si.
Durante a preparação do pedido pode seleccionar o tipo de envío que melhor se adapte ás suas necessidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Chave de encomenda | 1423714 |
---|---|
Quantidade de embalagem | 1 UNID |
Observação | Produzido sob encomenda (sem devolução) |
Página de catálogo | Página 395 (C-2-2019) |
GTIN (EAN) | 4055626569277 |
Peso por unidade (exclusive embalagem) | 568,080 g |
Número do imposto alfandegário | 85444290 |
País de origem | DE (Alemanha) |
Degree of protection | IP65 (M12 connector) |
---|---|
IP67 (M12 connector) | |
IP20 (RJ45 connector) | |
Ambient temperature (operation) | -25 °C ... 90 °C (M12 connector) |
-25 °C ... 80 °C (RJ45 connector) |
Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) |
---|---|
Rated current at 40°C | 1 A |
Rated voltage | 48 V AC |
60 V DC | |
Number of positions | 4 |
Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
EtherCAT®CAT5 (IEC 11801), 100 Mbps | |
Standards/regulations | M8 connector IEC 61076-2-114 |
Head type | Plug straight M8 / IP67 |
---|---|
No. of positions (pin connector pattern) | 4 |
Coding | D (Data) |
Color | black |
Material (component) | CuSn (Contact) |
Ni/Au (Contact surface) | |
PA 6.6 (Contact carriers) | |
TPU, hardly inflammable, self-extinguishing (Grip) | |
Brass, nickel-plated (Screw connection) | |
Shielded | yes |
Insulation resistance | ≥ 100 MΩ |
Insertion/withdrawal cycles | ≥ 100 |
Torque | 0.2 Nm |
Ambient temperature (operation) | -25 °C ... 90 °C |
Head type | Plug straight RJ45 / IP20 |
---|---|
No. of positions (pin connector pattern) | 4 (8) |
Color | black |
Material (component) | CuSn (Contact) |
Ni/Au (Contact surface) | |
PA (Contact carriers) | |
PA (Housing) | |
Insertion/withdrawal cycles | ≥ 750 |
Ambient temperature (operation) | -25 °C ... 80 °C |
Product labeling | "sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7 Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED (UL) CAT 5E PATCH CABLE FRNC * (Cable printing cable supplier) |
---|---|
Cable type | PROFINET drag chain CAT5 |
Cable type (abbreviation) | 93C |
Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
EtherCAT®CAT5 (IEC 11801), 100 Mbps | |
Cable structure | 1x4xAWG22/7; SF/TQ |
Conductor cross section | 4x 0.34 mm² |
AWG signal line | 22 |
Conductor structure signal line | 7x 0.25 mm |
Core diameter including insulation | 1.5 mm |
Wire colors | White, yellow, blue, orange |
Overall twist | Star quad |
Shielding | Aluminum-coated foil, tinned copper braided shield |
Optical shield covering | 85 % |
External sheath, color | green RAL 6018 |
Outer sheath thickness | approx. 0.9 mm |
External cable diameter D | 6.5 mm ±0.2 mm |
Minimum bending radius, fixed installation | 5 x D |
Minimum bending radius, flexible installation | 7.5 x D |
Number of bending cycles | 3000000 |
Bending radius | 100 mm |
Traversing path | 10 m |
Traversing rate | 4 m/s |
Acceleration | 4 m/s² |
Torsion force | ± 30 °/m |
Tensile strength GRP | ≤ 150 N |
Cable weight | 61 kg/km |
Outer sheath, material | PUR |
Material, inner sheath | FRNC |
Material conductor insulation | PE |
Conductor material | Tin-plated Cu litz wires |
Insulation resistance | ≥ 500 MΩ*km |
Loop resistance | ≤ 120.00 Ω/km |
Wave impedance | 100 Ω ±15 Ω (at 1 ... 100 MHz) |
Near end crosstalk attenuation (NEXT) | 80 dB (with 1 MHz) |
76 dB (at 4 МHz) | |
70 dB (at 10 MHz) | |
65 dB (at 16 MHz) | |
63 dB (at 20 МHz) | |
60 dB (at 31.25 МHz) | |
55 dB (at 62.5 МHz) | |
50 dB (at 100 MHz) | |
Attenuation | 2.1 dB (with 1 MHz) |
4 dB (at 4 МHz) | |
6.3 dB (at 10 MHz) | |
8 dB (at 16 MHz) | |
9 dB (at 20 МHz) | |
11.4 dB (at 31.25 МHz) | |
16.5 dB (at 62.5 МHz) | |
21.3 dB (at 100 MHz) | |
Signal speed | 0.66 c |
Signal runtime | 5.3 ns/m |
Coupling resistance | ≤ 20.00 mΩ/m (at 10 MHz) |
Nominal voltage, cable | 600 V (UL rating) |
Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
Test voltage Core/Shield | 2000 V (50 Hz, 1 min.) |
Special properties | Electrical properties according to EN 50288-2-2 |
Flame resistance | according to IEC 60332-1-2 |
Halogen-free | yes |
Resistance to oil | in accordance with DIN EN 60811-2-1 |
Other resistance | UV resistant |
Ambient temperature (operation) | -40 °C ... 70 °C (cable, fixed installation) |
-40 °C ... 70 °C (cable, flexible installation) | |
Ambient temperature (installation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -50 °C ... 70 °C |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
