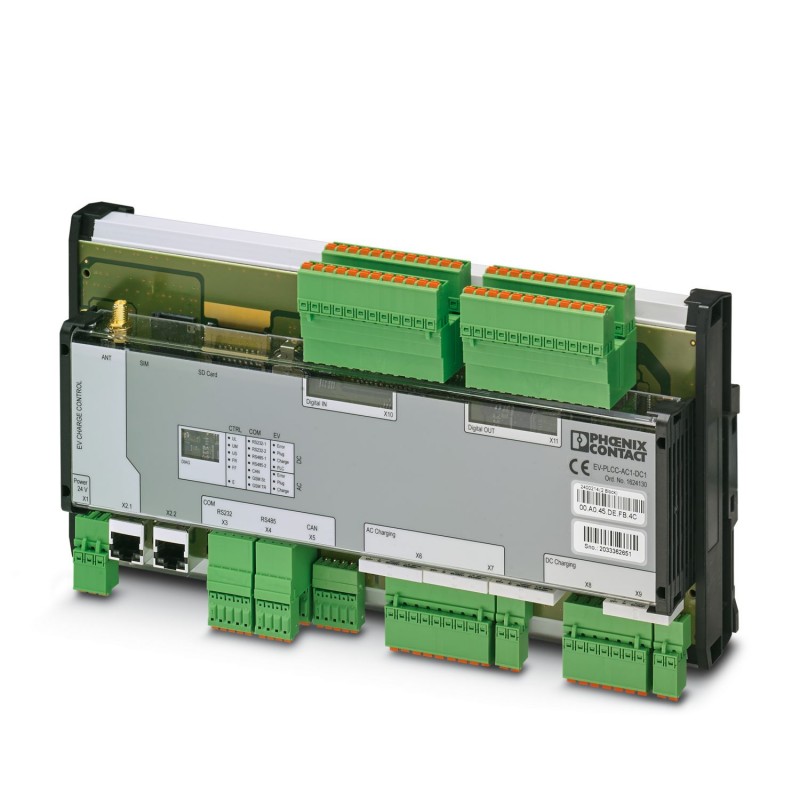

EV-PLCC-AC1-DC1 1624130 PHOENIX CONTACT Programável controlador de carga para CC e CA de carregamento de veí..
EV-PLCC-AC1-DC1
1624130
PHOENIX_CONTACT
Programável controlador de carga para CC e CA de carregamento de veículos eléctricos em conformidade com a norma IEC 61851-1,-23, DIN SPEC 70121 integrado com redes móveis 3G modem de rede
Controle de carga programável para carregamento DC e AC de veículos elétricos de acordo com IEC 61851-1,-23, DIN SPEC 70121, CHAdeMO com modem de rádio móvel integrado
Programmable charging controller for DC and AC charging of electric vehicles in accordance with IEC 61851-1,-23, DIN SPEC 70121 with integrated 3G mobile network modem
Dispositivos de encaixe industriais e especiais > Sistema de controle de carga E-Mobility
Mobilidade Eletrônica
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲Dados comerciais
| Chave de encomenda | 1624130 |
|---|---|
| Quantidade de embalagem | 1 UNID |
| Observação | Produzido sob encomenda (sem devolução) |
| Página de catálogo | Página 57 (C-7-2019) |
| GTIN (EAN) | 4055626240572 |
| Peso por unidade (exclusive embalagem) | 1.097,000 g |
| Número do imposto alfandegário | 85371091 |
| País de origem | DE (Alemanha) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Product definition
| Product type | Programmable charging controller for DC and AC charging of electric vehicles in accordance with IEC 61851-1,-23, DIN SPEC 70121 with integrated 3G mobile network modem |
|---|---|
| Type | in housing |
| Number of charging points | 2 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2, non-condensing, no ice formation) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to EN 61131-2) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Degree of protection | IP20 |
| Vibration (operation) | 5g |
| Vibration (storage/transport) | 5g |
| Shock (operation) | 25g (Criterion 1, according to IEC 60068-2-27) |
DC charging interface
| Standards/regulations | IEC 61851-1 |
|---|---|
| IEC 61851-23 | |
| Charging mode | Mode 4 |
| Communication | DIN SPEC 70121 |
| Cable length | max. 10 m |
| Proximity | Analog input, reserved for future applications |
| Temperature sensors | 2x Pt 1000 |
| Temperature range | -20 °C ... 120 °C |
| Relay output | DC charging enabled |
| Maximum switching voltage | 30 V (External supply) |
| Max. switching current | 6 A (External supply) |
AC charging interface
| Standards/regulations | IEC 61851-1, Annex A+B |
|---|---|
| Charging mode | Mode 3, Case B + C |
| Locking control | Relay output, supplied internally |
| Voltage | ± 12 V |
| Maximum current for locking actuators | 2 A |
| Activation time | Can be set via application program |
| Behavior in the event of voltage drop | Automatic unlocking |
| Locking feedback | Resistance measurement |
| Switching thresholds | Can be set via application program |
| Temperature sensors | 1x Pt 1000 (evaluation via application program) |
| Temperature range | -20 °C ... 120 °C |
| Relay output | AC charging enabled |
| Maximum switching voltage | 30 V (External supply) |
| Max. switching current | 6 A (External supply) |
IEC 61131 runtime system
| Number of control tasks | 8 |
|---|---|
| Processing speed | 1.3 ms (1 K mix instructions) |
| 90 µs (1 K bit instructions) | |
| Program memory | 1 Mbyte (86 K instructions (IL)) |
| Battery | Integrated (rechargeable battery buffered) |
| Retentive mass storage | 48 kByte (NVRAM) |
| Mass storage | 1 Mbyte |
| Parameterization memory | min. 4 Mbyte (depending on storage media) |
| Diagnostics tool | DIAG+ |
| Programming tool | PC WORX |
| Runtime system | eCLR |
| Realtime clock | Yes |
Digital inputs
| Number inputs | 16 |
|---|---|
| Connection method | COMBICON connectors |
| Description of the input | EN 61131-2 type 1 |
| Input voltage range | -0.5 V DC ... 30 V DC |
| -0.5 V DC ... 5 V DC (“0” signal) | |
| 15 V DC ... 30 V DC (“1” signal) | |
| Typical response time | min. 3 ms |
| Cable length | max. 30 m |
Digital outputs
| Number outputs | 16 |
|---|---|
| Connection method | COMBICON connectors |
| Output voltage | 24 V DC |
| Maximum output current per channel | 500 mA |
| Resistance to permanent reverse voltage | max. 500 mA |
Ethernet data interfaces
| Number of interfaces | 2 |
|---|---|
| Connection method | RJ45 socket |
| Transmission speed | 100 Mbps |
| Transmission length | max. 100 m |
RS-485 data interfaces
| Number of interfaces | 2 |
|---|---|
| Connection method | COMBICON connectors |
| Transmission length | max. 3 m (with shielded cable max. 30 m) |
| Termination resistor | 120 Ω (Can be connected internally) |
RS-232 data interfaces
| Number of interfaces | 2 |
|---|---|
| Connection method | COMBICON connectors |
| Transmission length | max. 3 m (with shielded cable max. 30 m) |
CAN bus data interfaces
| Number of interfaces | 1 (Transparent mode, CAN 2.0a, 11 Bit Object Identifier, CAN 2.0b, 29 Bit Object Identifier) |
|---|---|
| Connection method | COMBICON connectors |
| Transmission speed | 500 kbps (Default) |
| 125 kbps, 250 kbps, 1000 kbps (adjustable) | |
| Transmission length | max. 3 m (with shielded cable max. 30 m) |
| Termination resistor | 120 Ω (Can be connected internally) |
Wireless interfaces
| Frequency | 850 MHz (0.25 W (UMTS)) |
|---|---|
| 1900 MHz (0.25 W (UMTS)) | |
| 2100 MHz (0.25 W (UMTS)) | |
| Antenna | Max. cable length of 30 m |
| Impedance | 50 Ω |
| Antenna connection | SMA (female) |
| SIM card | 1.8 volt and 3 volt SIM card |
| GPRS | Class 12, Class B |
| EDGE | Multislot Class 10 |
| UMTS | HSPA 3GPP R6 |
Connection data
| Connection method | COMBICON connectors |
|---|---|
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section solid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Device supply
| Supply voltage | 24 V DC (Length of cable max. 30 m) |
|---|---|
| Supply voltage range | 19.2 V DC ... 30 V DC (Incl. all tolerances, incl. residual ripple) |
| Residual ripple | 5 % |
| Supply voltage UMof the digital inputs | 24 V DC -15 % / +20 % (according to EN 61131-2) |
| Power supply at UM | max. 8 A DC (sum of UM+ US) |
| Current consumption from UM | max. 8 A DC |
| Supply voltage USof the digital outputs | 24 V DC -15 % / +20 % (according to EN 61131-2) |
| Power supply at US | max. 8 A DC (sum of UM+ US) |
| Current consumption from US | max. 8 A DC |
| Supply voltage UL | 24 V DC |
| Power supply at UL | max. 0.8 A DC |
EMC data
| Immunity to ESD | Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 4 kV contact discharge, 8 kV air discharge |
|---|---|
| Immunity to EF | Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m |
| Immunity to burst | Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV |
| Immunity to surge | Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, Supply lines: 1 kV, Signal/data lines: 0,5 kV |
| Immunity to conducted interference | Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V |
| Interference emission | Noise emission test as per EN 61000-6-4 EN 55011 Class A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classificações
eCl@ss
| eCl@ss 4.0 | 27210902 |
|---|---|
| eCl@ss 4.1 | 27371105 |
| eCl@ss 5.0 | 27371801 |
| eCl@ss 5.1 | 27371810 |
| eCl@ss 6.0 | 27371810 |
| eCl@ss 7.0 | 27371810 |
| eCl@ss 8.0 | 27242207 |
| eCl@ss 9.0 | 27144703 |
ETIM
| ETIM 3.0 | EC001505 |
|---|---|
| ETIM 4.0 | EC001599 |
| ETIM 5.0 | EC001413 |
| ETIM 6.0 | EC002889 |
| ETIM 7.0 | EC002889 |
UNSPSC
| UNSPSC 6.01 | 30211916 |
|---|---|
| UNSPSC 7.0901 | 39121535 |
| UNSPSC 11 | 39121535 |
| UNSPSC 12.01 | 39121535 |
| UNSPSC 13.2 | 39121801 |
| UNSPSC 18.0 | 39121801 |
| UNSPSC 19.0 | 39121801 |
| UNSPSC 20.0 | 39121801 |
| UNSPSC 21.0 | 39121801 |
| Característica | Valor |
|---|---|
| Desbloqueio de emergência em caso de falta de energia (EF009316) | Não |
| Número máximo pontos de carregamento controláveis (EF009156) | 2 |
| Com interface de comunicação (EF006609) | Sim |
| Largura (EF000008) | 285 mm |
| Altura (EF000040) | 158 mm |
| Profundidade (EF000049) | 70 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
