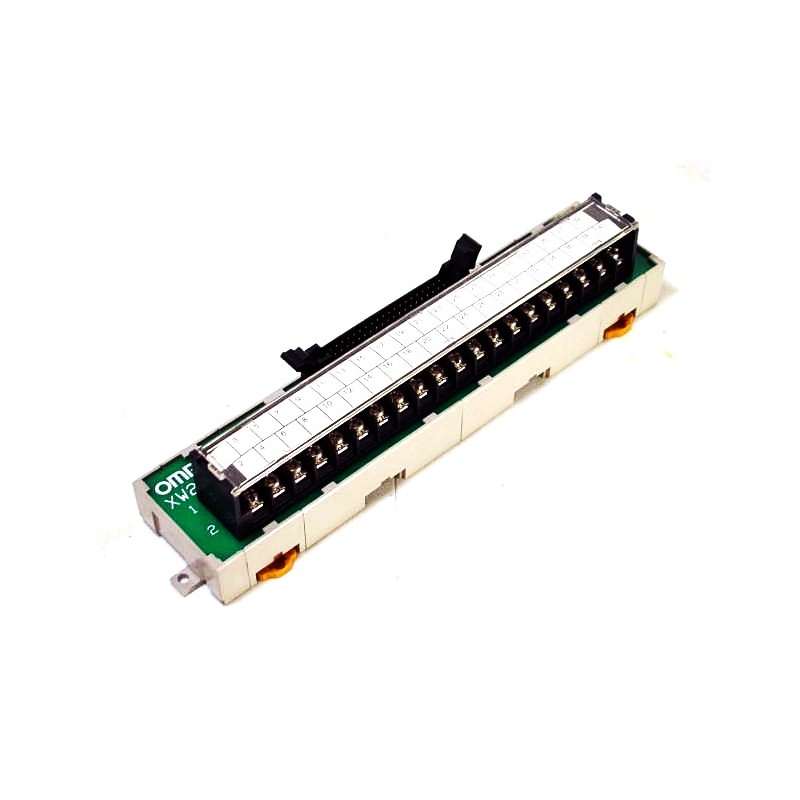

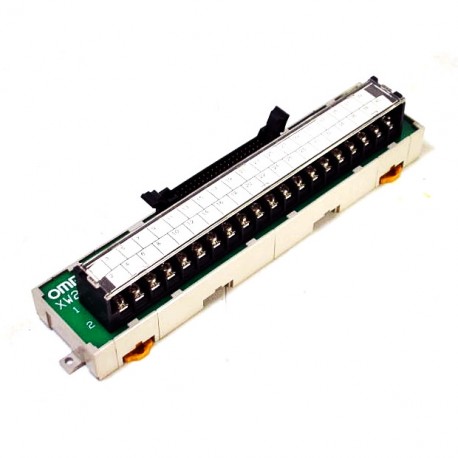

XW2B-40G5 XW2B0007D XW2B40G5 OMRON Bloco conector 40 pontos E/S M3.5

CJ-series High-speed Counter Unit
CJ1W-CT021
High-Speed, Flexible Control With A Wide Array of Features
• Equipped with 2 Counters and counts over a maximum binary range of 32-bits.
• Accepting input pulse frequencies of up to 500 kHz allows precise control of fast motions.
• The Unit is equipped with 2 Digital Inputs, 2 Digital Outputs and
30 Soft Outputs.
• A maximum response time of 0.5 ms guarantees high-speed closed loop control of applications.
CSM_CJ1W-CT_DS_E_3_1
CJ1W-CT021
Features
• Input frequencies to 500 kHz.
• 32-bit counting range.
• Digital variable noise filter provided.
• 5, 12, 24 V line driver inputs available.
• Supports simple, ring, and linear counting modes.
• Supports two external control inputs, and a total of 16 functions can be set: open gate, close gate, preset, reset, capture, stop/capture/reset combinations, reset enable, and more.
• One Unit supports two external outputs and 30 internal outputs with counter value zone comparisons, target comparisons, delays, holds, programmable outputs, and hysteresis settings.
• Pulse rate measurement function and data logging.
• Counter outputs and external control inputs can be used to trigger interrupt tasks in the CPU.
