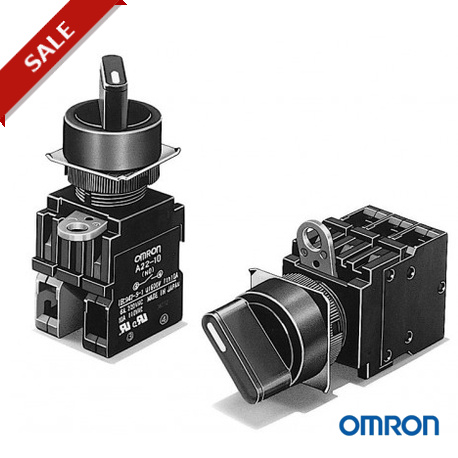

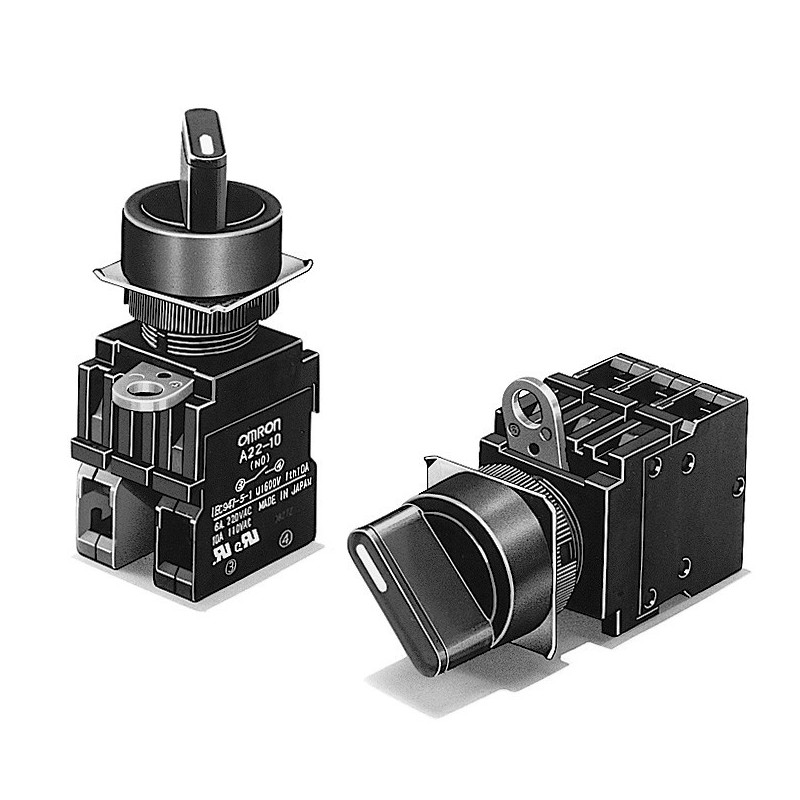

Knob-type Selector Switch A22S/W Install in 22-dia. or 25-dia. Panel Cutout • Easy mounting and removal of Switch Unit. • Increase wiring efficiency with three-row mounting of Switch Blocks. • Finger protection mechanism on Switch Unit provided as a stan- dard feature. • Use 25-dia. ring to install in 25-dia. panel cutouts. • Mounted using either open-type (fork-type) or closed-type (round-type) crimp terminals. • IP65 oil resistance (non-lighted models) IP65 (lighted models) • EN60947-5-1 • UL and cUL approved (File No. E41515). Model Number Structure ■ Model Number Legend Completely Assembled Shipped as a set which includes the Selector, Lamp (lighted models only), and Switch. 1 2 3 4 5 A22@-@@-@-@ 1 Lighted/Non-lighted Code Description S Non-lighted W Lighted 2 Number of Notches/Reset Method Code Description 2M 2 notches/Manual 2A 2 notches/Automatic 3M 3 notches/Manual 3A 3 notches/Automatic 3 Illumination Color Code Description None Black (for non-lighted models only) R Red G Green Y Yellow A Blue 4 Light Source 5 Contacts Code Description 10 SPST-NO (See note 1.) 01 SPST-NC (See note 1.) 11 SPST-NO + SPST-NC 20 DPST-NO 02 DPST-NC Note: 1. For models with 2 notches 2. The contacts are rated for stand- ard loads. For microloads, refer to Accessories section for the A22. Without Voltage Reduction Unit Code Operating Voltage None Non-lighted With Voltage Reduction Unit None Non-lighted T1 LED 110 VAC (See note 2.) 6D LED 6 VDC T2 220 VAC (See note 3.) 6A 6 VAC 12A 12 VAC/VDC 24A 24 VAC/VDC Note: 1. The LED lamp (24 VAC/VDC) can be lit by directly applying 110 VAC/VDC (220 VAC/VDC) to the lamp terminal. LED incorporates the 24-VAC/VDC models. 5 Incandescent 12 lamp 5 VAC/VDC 12 VAC/VDC 2. Operational voltage: 95 to 115 VAC 3. Operational voltage: 190 to 230 VAC 24 24 VAC/VDC Knob-type Selector Switch A22S/W G-115
