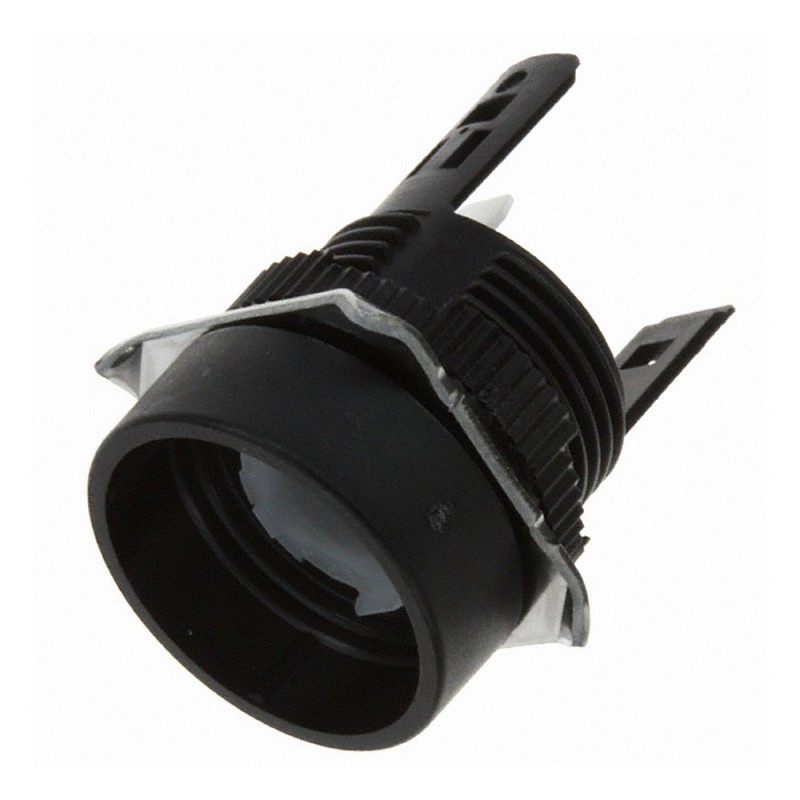

Pushbutton Switch A16 Mounting Aperture of 16 mm • Modular construction (Pushbutton + Case + Lamp + Switch) • Wide Variety of Control and Signal Devices: Lighted, Non-Light- ed, and Buzzer • UL and cUL approved. • Conforms to EN60947-5-1, IEC947-5-1 • Quick and easy assembly, snap-in Switch. • Wide range of switching capacity from standard to microload • High reliability, IP65 • Short mounting depth, less than 28.5 mm below panel Model Number Structure ■ Model Number Legend Completely Assembled The model numbers used to order sets of Units are illustrated below. One set comprises the Pushbutton, Lamp (lighted models only), Case, and Switch. (1) (2) (3) (4) (5) (6) (7) A 1 6 5 L - J R M - 24D - 2 (1) Degree of Protection Symbol Protection (7) Contact Configuration Symbol Type Terminal No symbol IP40 5 IP65 oil-resistant (2) Lighted/Non-lighted 1 SPDT 2 DPDT 1P SPDT Solder Terminal PCB Symbol No symbol Type Non-lighted 2P DPDT 2S DPDT Terminal Screw-Less Clamp L Lighted (3) Shape of Pushbutton (6) Light Source Only DPDT contacts are available with Screw-Less Clamp. Symbol Shape J Rectangular 2-way guard (4) Color of Pushbutton (5) Switch Operation Symbol Type Operating voltage Rated voltage A Square 2-way guard Symbol Color Symbol Operation No symbol Non-lighted T Round Projecting model R Red M Momentary 5 5 VAC/VDC 6 VAC/VDC 3J Rectangular 3-way guard Y Yellow A Alternate 12 Incandescent lamp 12 VAC/VDC 14 VAC/VDC BA Square 24-mm square PY Pure yellow G Green W White A Blue B Black (non-lighted models only) Momentary-action: Self-resetting Alternate-action: Self-holding 24 24 VAC/VDC 28 VAC/VDC 5D 5 ±5% VDC 5 VDC 12D LED 12 ±5% VDC 12 VDC 24D 24 ±5% VDC 24 VDC Voltage Reduction Unit (24-V Built-in LED) "Colored-illumination" models Symbol Type Operating voltage Rated voltage operate in the way shown below: T1 LED 90 to 121 VAC/VDC 110 VAC Unlit Lit White Color The built-in LED is colored. T2 180 to 242 VAC/VDC 220 VAC Note: 1. Solder terminals are available only with 100-V models. 2. The Voltage Reduction Unit is not available for models with PCB terminals. Pushbutton Switch A16 G-5
