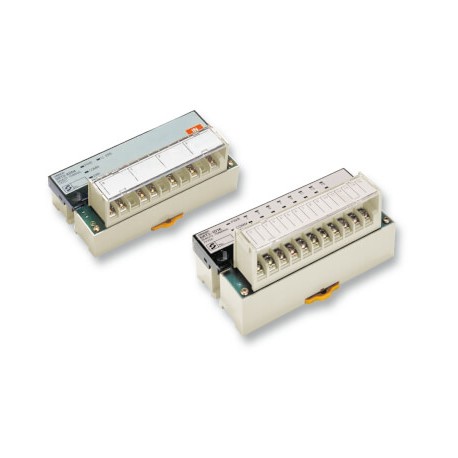

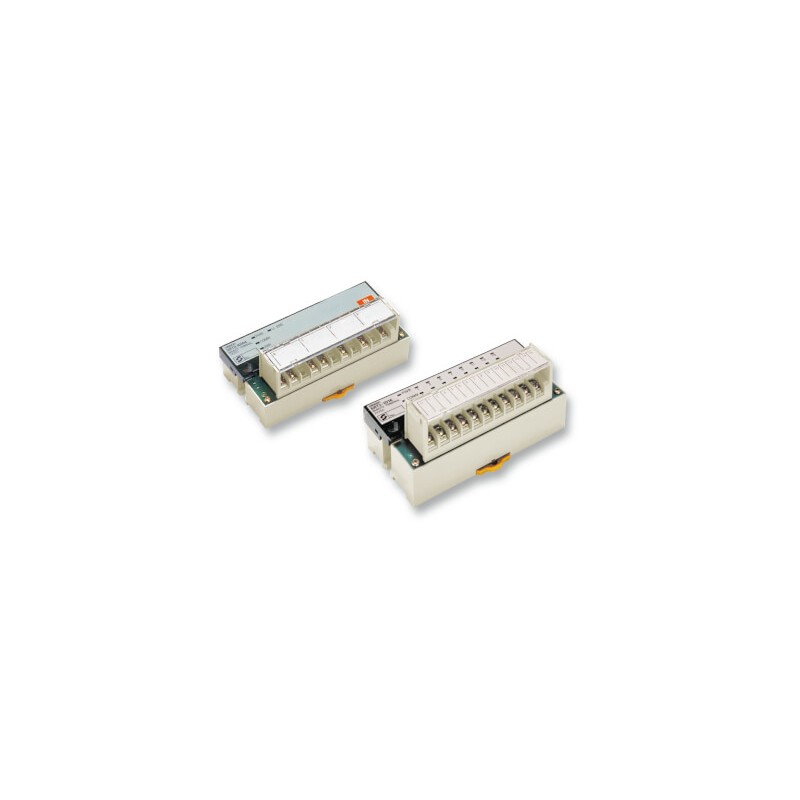

Compact I/O SRT2 Remote I/O
Fast and easy over CompoBus/S
Omron's unique CompoBus/S is the original I/O bus for machine automation. With free topology and up to 500 m bus length in long-distance mode, it can be used as a remote I/O system. In high-speed mode (100 m max.) the guaranteed sub-millisecond cycle time makes it ideal for efficient machine control. Used with the compact CPM2C-S PLC as master, your machine control system will fit in the smallest spaces.
• Compact size in IP20 housing
• Fast cycle time less than 1 ms per 256 I/O points
• Easy set-up no software required
• Choice of 4- 8- and 16-point Digital I/O transistor-, and relay models
• Analog In/Outputs and customisable modules available
Ordering information
Unit type Specifications Size in mm (H×W×D) Remarks Order code
4-point PNP input unit 24 VDC, 6 mA per point 48×80×50 Compact IP20 I/O SRT2-ID04-1
8-point PNP input unit 24 VDC, 6 mA per point 48×80×50 Compact IP20 I/O SRT2-ID08-1
16-point PNP input unit 24 VDC, 6 mA per point 48×105×50 Compact IP20 I/O SRT2-ID16-1
16-point PNP input unit 24 VDC, 6 mA per point 50×180×59 3-tier connection for direct sensor wiring SRT2-ID16T-1
4-point PNP output unit 24 VDC, 0.3 A per point 48×80×50 Compact IP20 I/O SRT2-OD04-1
8-point PNP output unit 24 VDC, 0.3 A per point 48×80×50 Compact IP20 I/O SRT2-OD08-1
16-point PNP output unit 24 VDC, 0.3 A per point 48×105×50 Compact IP20 I/O SRT2-OD16-1
16-point PNP output unit 24 VDC, 0.5 A per point 50×180×59 3-tier connection for direct sensor/actuator wiring SRT2-OD16T-1
8-point input + 8-point output unit (PNP) 24 VDC, input 6 mA, output 0.3 A per point 50×180×59 3-tier connection for direct actuator wiring SRT2-MD16T-1
8-point relay output unit Max. 3 A per point 50×100×50 with easy-to-replace relays SRT2-ROC08
16-point relay output unit Max. 3 A per point 50×155×50 with easy-to-replace relays SRT2-ROC16
4-Channel analog input unit 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V,
0 to 20 mA, 4 to 20 mA
2-Channel analog output unit 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V,
0 to 20 mA, 4 to 20 mA
48×105×50 Resolution 1/6000, conversion time 4 ms (4 inputs) SRT2-AD04
48×105×50 Resolution 1/6000, conversion time 2 ms (2 outputs) SRT2-DA02
Note: To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
Accessories
Type Order code
CompoBus/S 4-wire flatcable for power and communication (100 m) SCA1-4F10
CompoBus/S branch connector (IDC) for flatcable SCN1-TH4
CompoBus/S termination connector (IDC) for flatcable SCN1-TH4T CompoBus/S termination block (screw connection) SRS1-T
