HPR-PF-150SW 684620 OMRON Ring light, white cor, outer diameter 166 mm, Inner diameter 116 mm, Height 26.4 mm
HPR-PF-150SW
684620
OMRON
Ring light, white cor, outer diameter 166 mm, Inner diameter 116 mm, Height 26.4 mm
Sistemas de Visão > Especial Visão
Produto novo em sua embalagem original com todas as garantias e certificações de OMRON
Best sellers
▲Mais informação

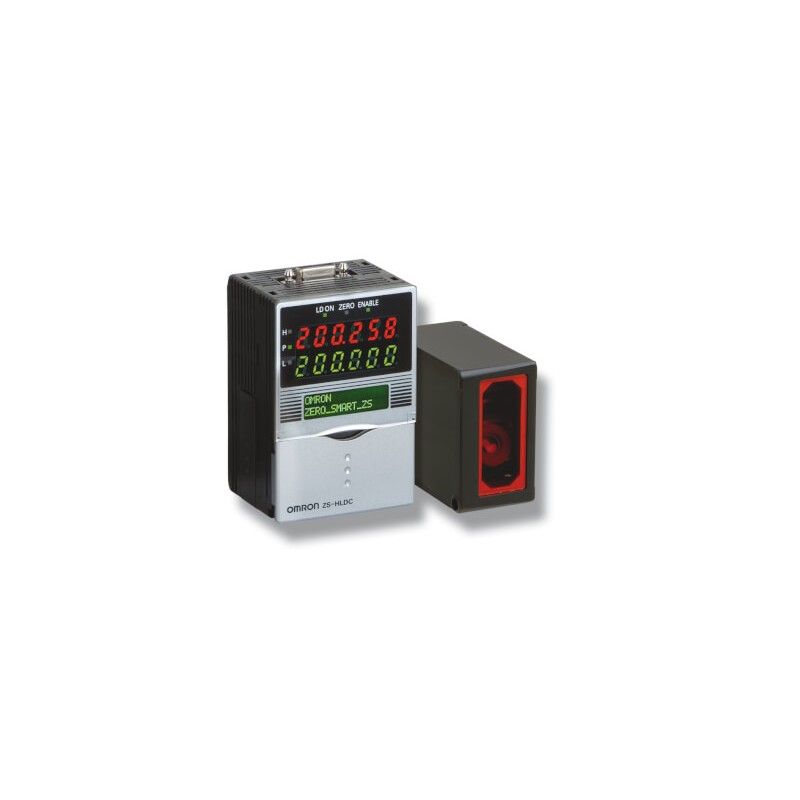

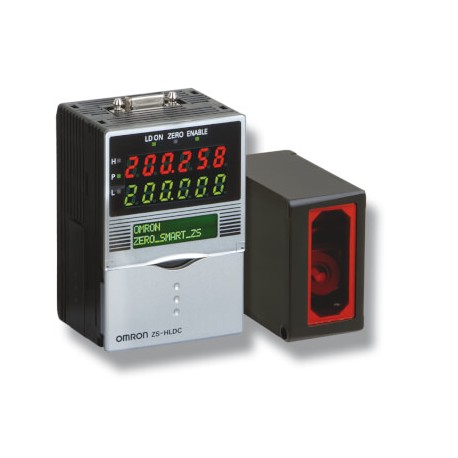

▲Sensor de medição laser modular de alta precisão
O sensor ZS-HL inteligente oferece um extraordinário alcance de detecção dinâmico para todas as superfícies, desde superfícies de borracha preta a de vidro e espelhadas, simplesmente escalando-o de acordo com as suas necessidades. O ZS-HL é a variante melhorada do ZS-L, aplicável a distâncias de medição superiores e permite a compatibilidade com as cabeças de sensor e acessórios.
- Resolução elevada e gama de detecção dinâmica para todas as superfícies
- Conceito de plataforma modular e escalável para no máximo 9 sensores
- De fácil utilização, instalação e manutenção para todos os níveis de utilizador
- Rapidez no tempo de resposta de 110 µs
- A capacidade de efectuar múltiplas tarefas gere até 4 ferramentas de medição num único controlador
Ordering information
Sensors
ZS-HL-series sensor heads
Optical system | Sensing distance | Beam shape | Beam diameter | Resolution | Order code |
|---|---|---|---|---|---|
Regular reflective models | 20±1 mm | Line beam | 1.0 mm × 20 µm | 0.25 µm | ZS-HLDS2T |
25±2 mm | 2.2 mm × 45 µm | 0.6 µm | ZS-HLDS2VT | ||
Diffuse reflective models | 50±5 mm | 1.0 mm × 30 µm | 0.25 µm | ZS-HLDS5T | |
100±20 mm | 3.5 mm × 60 µm | 1 µm | ZS-HLDS10 | ||
600±350 mm | 16 mm × 0.3 mm | 8 µm | ZS-HLDS60 | ||
1500±500 mm | 40 mm × 1.5 mm | 500 µm | ZS-HLDS150 |
ZS-HL-series sensor heads (for nozzle gaps) also compatible with ZS-L controller
Optical system | Sensing distance | Beam shape | Beam diameter | Resolution | Order code |
|---|---|---|---|---|---|
Regular reflective models | 10±0.5 mm | Line beam | 900x25 µm | 0.25 µm | ZS-LD10GT |
15±0.75 mm | ZS-LD15GT |
ZS-L-series sensor heads
Optical system | Sensing distance | Beam shape | Beam diameter | Resolution | Order code |
|---|---|---|---|---|---|
Regular reflective models | 20±1 mm | Line beam | 900 × 25 µm | 0.25 µm | ZS-LD20T |
Spot beam | 25 µm dia. | ZS-LD20ST | |||
40±2.5 mm | Line beam | 2000 × 35 µm | ZS-LD40T | ||
Diffuse reflective models | 50±5 mm | Line beam | 900 × 60 µm | 0.8 µm | ZS-LD50 |
Spot beam | 50 µm dia. | ZS-LD50S | |||
80±15 mm | Line beam | 900 × 60 µm | 2 µm | ZS-LD80 | |
130±15 mm | Line beam | 600 × 70 µm | 3 µm | ZS-LD130 | |
200 ±50 mm | Line beam | 900 × 100 µm | 5 µm | ZS-LD200 | |
350 ±135 mm | Spot beam | 240 µm dia. | 20 µm | ZS-LD350S |
ZS-HL-series sensor controllers
Supply voltage | Control outputs | Order code |
|---|---|---|
24 VDC | NPN outputs | ZS-HLDC11 |
PNP outputs | ZS-HLDC41 | |
ZS-HLDC41A |
Multi-controllers
Supply voltage | Control outputs | Order code |
|---|---|---|
24 VDC | NPN outputs | ZS-MDC11 |
PNP outputs | ZS-MDC41 |
Data storage units
Supply voltage | Control outputs | Order code |
|---|---|---|
24 VDC | NPN outputs | ZS-DSU11 |
PNP outputs | ZS-DSU41 |
Accessories (sold separately)
Controller link
Item | Order code |
|---|---|
Controller link | ZS-XCN |
Panel mount adapter
Model | Order code |
|---|---|
For 1st controller | ZS-XPM1 |
For expansion (from 2nd controller on) | ZS-XPM2 |
Cables for connecting to a Personal Computer
Type | Quantity | Order code |
|---|---|---|
RS-232C | 1 | ZS-XRS2 |
USB | 1 | ZS-XUSB2 |
Extension cables for sensor heads
Cable length | Quantity | Order code |
|---|---|---|
1 m | 1 | ZS-XC1A |
4 m | 1 | ZS-XC4A |
5 m | 1 | ZS-XC5B, |
8 m | 1 | ZS-XC8A |
10 m | 1 | ZS-XC10B |
Logging software
Item | Order code |
|---|---|
Smart monitor zero professional | ZS-SW11E |
Memory card
Model | Order code |
|---|---|
64 MB | F160-N64S(S) |
128 MB | QM300-N128S |
256 MB | F160-N256S |
Safety precautions for using laser equipment
Specifications
Sensor heads
ZS-HL-series sensor heads
Item | ZS-HLDS2T | ZS-HLDS2VT | ZS-HLDS5T | ZS-HLDS10 | ZS-HLDS60 | ZS-HLDS150 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
Applicable controllers | ZS-HLDC series | |||||||||
Optical system | Regular | Diffuse reflection | Regular | Regular | Diffuse reflection | Regular | Diffuse reflection | Diffuse reflection | Diffuse reflection | |
Measuring center distance | 20 mm | 5.2 mm | 25 mm | 44 mm | 50 mm | 94 mm | 100 mm | 600 mm | 1,500 mm | |
Measuring range | ±1 mm | ±1 mm | ±2 mm | ±4 mm | ±5 mm | ±16 mm | ±20 mm | ±350 mm | ±500 mm | |
Light source | Visible semiconductor laser (wavelength: 650 nm, 1 mW max., JIS Clas | Visible semiconductor laser (wavelength 658 nm, 1 mW max., Class 2) | ||||||||
Beam shape | Line beam | |||||||||
Beam diameter | 1.0 mmx20 µm | 2.2 mmx45 µm | 1.0 mmx30 µm | 3.5 mmx60 µm | 0.3 mmx16 mm | 1.5 mmx40 mm | ||||
Linearity | ±0.05% F.S. | ±0.2 %F.S. | ±0.1% F.S. | ±0.07 %F.S. (250 mm to 750 mm) ±0.1% F.S. (750 mm to 950 mm) | ±0.2 %F.S. | |||||
Resolution | 0.25 µm | 0.5 µm | 0.25 µm | 1 µm | 8 µm (average 64) (at 250 mm) 40 µm (average 64) (at 600 mm) | 500 µm (average 64) | ||||
Temperature characteristic | 0.01% F.S./°C | 0.1% F.S./°C | 0.01% F.S./°C | |||||||
Sampling cycle | 110 µs (high-speed mode), 500 µs (standard mode), 2.2 ms (high-precision mode), 4.4 ms (high-sensitivity mode) | |||||||||
Indicators | NEAR indicator | Lits near the measurement center, and nearer than the measurement center distance inside the measuring range. | ||||||||
FAR indicator | Lits near the measurement center, and further than the measurement center distance inside the measuring range. | |||||||||
Operating ambient illumination | Illumination on received light surface 3,000 lx or less (incandescent light) | Illumination on received light surface 1,000 lx or less (incandescent light) | Illumination on received light surface 500 lx or less (incandescent light) | |||||||
Ambient temperature | Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation) | |||||||||
Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | |||||||||
Degree of protection | IP64 | IP67 | Cable length 0.5 m: IP66, cable length 2 m: IP67 | IP66 (IEC60529) | ||||||
Vibration resistance (destructive) | 10 to 150 Hz, 0.7 mm double amplitude, 80 min each in X, Y, and Z directions | |||||||||
Shock resistance (destructive) | 150 m/s² 3 times each in six directions (up/down, left/right, forward/backward) | |||||||||
Materials | Case: aluminum die-cast, front cover: glass | |||||||||
Cable length | 0.5 m, 2 m | 2 m | 0.5 m, 2 m | |||||||
Weight | Approx. 350 g | Approx. 600 g | Approx. 800 g | |||||||
*1Defined as 1/e² (13.5%) of the center optical intensity in the measurement center distance. The beam diameter is sometimes influenced by the ambient conditions of the workpiece such as leaked light from the main beam.
*2This is the error on the measured value with respect to an ideal straight line. Linear curve may change according to the workpiece. The following lists the workpieces
Model | Diffusive reflection | Mirror reflection |
|---|---|---|
ZS-HLDS2T | SUS block | Glass |
ZS-HLDS5T/HLDS10 | White alumina ceramic | Glass |
ZS-HLDS60/HLDS150 | White alumina ceramic | - |
ZS-HLDS2VT | - | Glass |
*3This is the “peak-to-peak” displacement conversion value of the displacement output in the measurement center distance when high-resolution mode and the average number in the table are set (For ZS-HLDS60, the maximum resolution at 250 mm is also included). The following lists the workpieces.
Model | Diffusive reflection | Mirror reflection |
|---|---|---|
ZS-HLDS2T | SUS block | Glass |
ZS-HLDS5T | White alumina ceramic | Glass |
ZS-HLDS10 | White alumina ceramic | |
ZS-HLDS60/HLDS150 | White alumina ceramic | - |
ZS-HLDS2VT | - | Glass |
*4Value obtained when the sensor part and object part are fixed with an aluminum jig.
ZS-L-series sensor heads
Item | ZS-LD20T | ZS-LD20ST | ZS-LD40T | ZS-LD10GT | ZS-LD15GT | ||||
|---|---|---|---|---|---|---|---|---|---|
Applicable controllers | ZS-HLDC/LDC series | ||||||||
Optical system | Regular reflection | Diffuse reflection | Regular reflection | Diffuse reflection | Regular reflection | Diffuse reflection | Regular reflection | ||
Measuring center distance | 20 mm | 6.3 mm | 20 mm | 6.3 mm | 40 mm | 30 mm | 10 mm | 15 mm | |
Measuring range | ±1 mm | ±1 mm | ±1 mm | ±1 mm | ±2.5 mm | ±2 mm | ±0.5 mm | ±0.75 mm | |
Light source | Visible semiconductor laser (wavelength: 650 nm, 1 mW max., JIS Class 2) | ||||||||
Beam shape | Line beam | Spot beam | Line beam | ||||||
Beam diameter | 900 x 25 µm | 25 µm dia. | 2,000 x 35 µm | Approx. 25 x 900 µm | |||||
Linearity | ±0.1%F.S | ||||||||
Resolution | 0.25 µm | 0.25 µm | 0.4 µm | 0.25 µm | 0.25 µm | ||||
Temperature characteristic | 0.04% FS/°C | 0.04% FS/°C | 0.02% FS/°C | 0.04% FS/°C | |||||
Sampling cycle | 110 µs (high-speed mode), 500 µs (standard mode), 2.2 ms (high-precision mode), 4.4 ms (high-sensitivity mode) | ||||||||
Indicators | NEAR | Lights near the measuring center distance, and nearer than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient. | |||||||
FAR | Lights near the measuring center distance, and further than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient. | ||||||||
Operating ambient illumination | Illumination on received light surface: 3,000 lx or less (incandescent light) | ||||||||
Ambient temperature | Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation) | ||||||||
Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | ||||||||
Degree of protection | Cable length 0.5 m: IP66, cable length 2 m: IP67 | IP40 | |||||||
Materials | Case: Aluminum die-cast, front cover: Glass | ||||||||
Cable length | 0.5 m, 2 m | ||||||||
Weight | Approx. 350 g | Approx. 400 g | |||||||
Accessories | Laser labels (1 each for JIS/EN, 3 for FDA), ferrite cores (2), insure Locks (2), instruction sheet | Laser safety labels (1 each for JIS/EN),ferrite cores (2), insure locks (2) | |||||||
ZS-L-series sensor heads
Item | ZS-LD50 | ZS-LD50S | ZS-LD80 | ZS-LD130 | ZS-LD200 | ZS-LD350S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Applicable controllers | ZS-HLDC/LDC series | |||||||||||
Optical system (reflection) | Diffuse | Regular | Diffuse | Regular | Diffuse | Regular | Diffuse | Regular | Diffuse | Regular | Diffuse | |
Measuring center distance | 50 mm | 47 mm | 50 mm | 47 mm | 80 mm | 78 mm | 130 mm | 130 mm | 200 mm | 200 mm | 350 mm | |
Measuring range | ±5 mm | ±4 mm | ±5 mm | ±4 mm | ±15 mm | ±14 mm | ±15 mm | ±12 mm | ±50 mm | ±48 mm | ±135 mm | |
Light source | Visible semiconductor laser (wavelength: 650 nm, 1 mW max., JIS Class 2) | |||||||||||
Beam shape | Line beam | Spot beam | Line beam | Line beam | Line beam | Spot beam | ||||||
Beam diameter | 900 x 60 µm | 50 µm dia. | 900 x 60 µm | 600 x 70 µm | 900 x 100 µm | 240 µm dia. | ||||||
Linearity | ±0.1%F.S. | ±0.25%F.S. | ±0.1%F.S. | ±0.25%F.S. | ±0.04%F.S. | |||||||
Resolution | 0.8 µm | 0.8 µm | 2 µm | 3 µm | 5 µm | 20 µm | ||||||
Temperature characteristic | 0.02% FS/°C | 0.02% FS/°C | 0.01% FS/°C | 0.02% FS/°C | 0.02% FS/°C | 0.04% FS/°C | ||||||
Sampling cycle | 110 µs (high-speed mode), 500 µs (standard mode), 2.2 ms (high-precision mode), 4.4 ms (high-sensitivity mode) | |||||||||||
Indicators | NEAR | Lights near the measuring center distance, and nearer than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient. | ||||||||||
FAR | Lights near the measuring center distance, and further than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient. | |||||||||||
Operating ambient illumination | Illumination on received light surface: 3,000 lx or less (incandescent light) | Illumination on received light surface: 2,000 lx or less (incandescent light) | Illumination on received light surface: 3,000 lx or less (incandescent light) | |||||||||
Ambient | Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation) | |||||||||||
Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | |||||||||||
Degree of protection | Cable length 0.5 m: IP66, cable length 2 m: IP67 | |||||||||||
Materials | Case: Aluminum die-cast, front cover: Glass | |||||||||||
Cable length | 0.5 m, 2 m | |||||||||||
Weight | Approx. 350 g | |||||||||||
Accessories | Laser labels (1 each for JIS/EN, 3 for FDA), ferrite cores (2), insure Locks (2), instruction sheet | |||||||||||
Sensor controllers
ZS-HL-series sensor controllers
Item | ZS-HLDC11 | ZS-HLDC41 | ||
|---|---|---|---|---|
NPN/PNP | NPN | PNP | ||
No. of samples to average | 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096 | |||
Number of mounted sensors | 1 per sensor controller | |||
External interface | Connection method | Serial I/O: connector, other: pre-wired (standard cable length: 2 m) | ||
Serial I/O | USB 2.0 | 1 port, full speed (12 Mbps max.), MINI-B | ||
RS-232C | 1 port, 115,200 bps. max. | |||
Output | Judgement output | HIGH/PASS/LOW 3 outputs | HIGH/PASS/LOW: 3 outputs PNP open collector, 50 mA max., | |
Linear output | Selectable from 2 types of output, voltage or current (selected by slide switch on bottom). Current output: 4 to 20 mA | |||
Inputs | Laser OFF, | ON: Short-circuited with 0 V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.) | ON: Short-circuited to supply voltage or within 1.5 V of supply voltage. OFF: Open (leakage current: 0.1 mA max.) | |
Functions | Display: Measured value, threshold value, voltage/current, received light amount, and resolution/terminal block output Sensing: Mode, gain, measurement object, head installation Measurement point: Average, peak, bottom, thickness, step, and calculations Filter: Smooth, average, and differentiation Outputs: Scaling, various hold values, and zero reset I/O settings: Linear (focus/correction), judgments (hysteresis and timer), non-measurement, and bank (switching and clear) System: Save, initialization, measurement information display, communications settings, key lock, language, and data load Task: Single task or multitask (up to 4) | |||
Status indicators | HIGH (orange), PASS (green), LOW (orange), LDON (green), ZERO (green), and ENABLE (green) | |||
Segment display | Main digital | 8-segment red LED, 6 digits | ||
Sub-digital | 8-segment green LEDs, 6 digits | |||
LCD | 16 digitsx2 rows, color of characters: green, resolution per character: 5x8 pixel matrix | |||
Setting inputs | Setting keys | Direction keys (UP, DOWN, LEFT, and RIGHT), SET key, ESC key, MENU key, and function keys (1 to 4) | ||
Slide switch | Threshold switch (2 states: High/Low), mode switch (3 states: FUN, TEACH, and RUN) | |||
Power supply voltage | 21.6 V to 26.4 VDC (including ripple) | |||
Current consumption | 0.5 A max. (when sensor head is connected) | |||
Ambient temperature | Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation) | |||
Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | |||
Degree of protection | IP20 | |||
Materials | Case: Polycarbonate (PC) | |||
Weight | Approx. 280 g (excluding packing materials and accessories) | |||
Accessories | Ferrite core (1), instruction sheet | |||
ZS-MDC11/MDC41 multi controllers
Basic specifications are the same as those for the sensor controllers.
The following points, however, are different.
(1)Sensor heads cannot be connected.
(2)A maximum 9 of controllers can be connected. Control link units are required to connect controllers.
(3)Processing functions between controllers: Math functions
Controller link unit
Connection using the ZS-XCN
Data storage units
Sensor controllers | Model | ZS-DSU11 | ZS-DSU41 | |
|---|---|---|---|---|
Number of mounted censor heads | Cannot be connected | |||
Number of connectable controllers | 10 controllers max. (ZS-MDC: 1 controller, ZS-HLDC: 9 controllers max.) | |||
Connectable controllers | ZS-HLDC__, ZS-MDC__ | |||
External | Connection method | Serial I/O: connector, other: pre-wired (standard cable length: 2 m) | ||
Serial I/O | USB 2.0 | 1 port, full speed (12 Mbps), MINI-B | ||
RS-232C | 1 port, 115,200 bps max. | |||
Outputs | 3 outputs: HIGH, PASS, and LOW NPN open-collector, 30 VDC, 50 mA max., | 3 outputs: HIGH, PASS, and LOW PNP open-collector, 50 mA max., | ||
Inputs | ON: Short-circuited with 0V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.) | ON: Short-circuited to supply voltage or within 1.5 V of supply voltage OFF: Open (leakage current: 0.1 mA max.) | ||
Data resolution | 32 bits | |||
Functions | Logging trigger functions | Start and stop triggers can be set separately; external triggers, data triggers (self-triggers), and time triggers | ||
Other functions | External banks, alarm outputs, saved data format customization, and clock | |||
Status indicators | OUT (orange), PWR (green), ACCESS (orange), and ERR (red) | |||
Segment display | 8-segment green LEDs, 6 digits | |||
LCD | 16 digitsx2 rows, color of characters: green, resolution per character: 5x8 pixel matrix | |||
Setting inputs | Setting keys | Direction keys (UP, DOWN, LEFT, and RIGHT), SET key, ESC key, MENU key, and function keys (1 to 4) | ||
Slide switch | Threshold switch (2 states: High/Low), mode switch (3 states: FUN, TEACH, and RUN) | |||
Power supply voltage | 21.6 V to 26.4 VDC (including ripple) | |||
Current consumption | 0.5 A max. | |||
Ambient temperature | Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation) | |||
Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | |||
Materials | Case: Polycarbonate (PC) | |||
Weight | Approx. 280 g (excluding packing materials and accessories) | |||
Accessories | Ferrite core (1) instruction sheet, tools for data storage unit: CSV file converter for data storage unit, smart analyzer macro edition | |||
1.Refer to the table of ratings and specifications for details.
2.Refer to the table of ratings and specifications for details.
3.This is the peak-to-peak displacement conversion value in the displacement output at the measuring center distance in high-precision mode when the number of samples to average is set to 128 and the measuring mode is set to the high-resolution mode. The standard workpiece is white aluminum ceramics in diffuse reflection mode and glass in the regular reflection mode.
4.Up to two ZS-XC_B cables can be connected (22 m max.).
5.A robot cable (ZS-XC5BR) is also available.
6.Defined as 1/e² (13.5%) of the center optical intensity at the actual measurement center distance (effective value). The beam diameter is sometimes influenced by the ambient conditions of the workpiece, such as leaked light from the main beam.
7.This is the error in the measured value with respect to an ideal straight line. The standard workpiece is white aluminum ceramics in diffuse reflection mode and glass in the regular reflection mode of the ZS-LD20T/40T/50. Linearity may change according to the workpiece.
8.This is the peak-to-peak displacement conversion value in the displacement output at the measuring center distance in high-precision mode when the number of samples to average is set to 128 and the measuring mode is set to the high-resolution mode. The standard workpiece is white aluminum ceramics in diffuse reflection mode and glass in the regular reflection mode.
9.This is the value obtained at the measuring center distance when the Sensor and workpiece are fixed by an aluminum jig.
10.This value is obtained when the measuring mode is set to the high-speed mode.
11.Defined as 1/e² (13.5%) of the center optical intensity at the actual measurement center distance (effective value). The beam diameter is sometimes influenced by the ambient conditions of the workpiece, such as leaked light from the main beam.
12.This is the error in the measured value with respect to an ideal straight line. The standard workpiece is white aluminum ceramics in diffuse reflection mode and glass in the regular reflection mode of the ZS-LD20T/40T/50. Linearity may change according to the workpiece.
13.This is the peak-to-peak displacement conversion value in the displacement output at the measuring center distance in high-precision mode when the number of samples to average is set to 128 and the measuring mode is set to the high-resolution mode. The standard workpiece is white aluminum ceramics in diffuse reflection mode and glass in the regular reflection mode.
14.This is the value obtained at the measuring center distance when the sensor and workpiece are fixed by an aluminum jig.
15.This value is obtained when the measuring mode is set to the high-speed mode.
16.Control link units are required to connect controllers.
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF CATALOGO OMRON PT.pdf | 68 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
