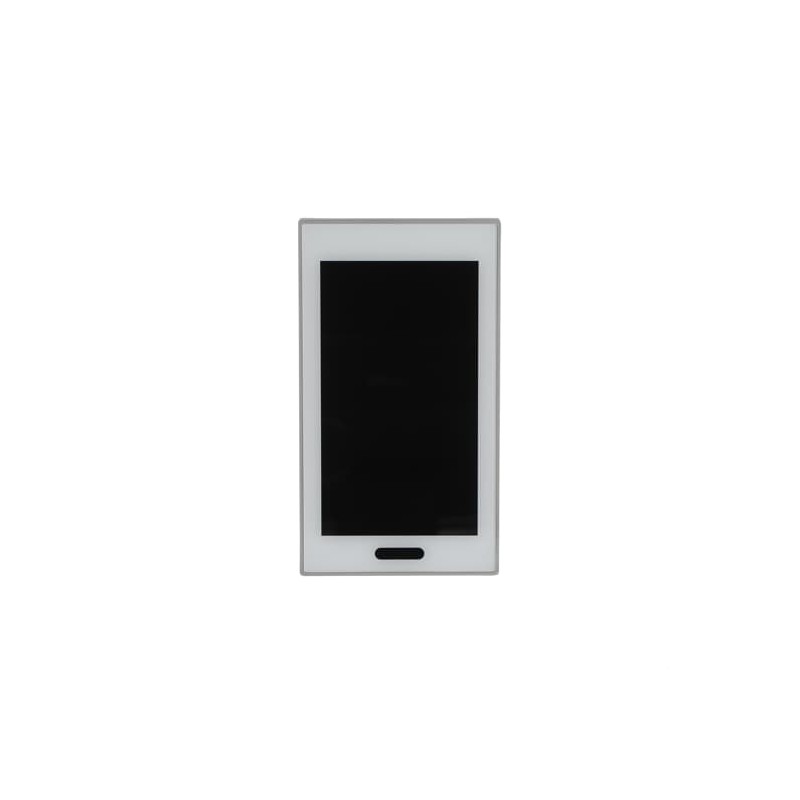

2TMA200050W0007 RT/U 30.0.1-811 NIESSEN Room Touch 5", branco
2TMA200050W0007
RT/U 30.0.1-811
NIESSEN
Room Touch 5", branco
Multifunctional HD IPS KNX touchdisplay as a room control element for visualisation and control of all functions in a KNX system. For the display and intuitive control of the following standard KNX functions: Switching, rocker switch, dimming (4-bit and 8-bit), slider, blind, RGBW control element, room temperature control element, Split Unit control element, step switch, scene switch, display element or audio control element. Additional functions: 20 fault and alarm messages, 10 logic functions, 10 timers each with 6 switching times, 4 scene actuators, 1 room temperature controller and individual pages can be protected with a PIN code. Status display, display of date and time, as well as inside and outside temperature. Installed temperature sensor, proximity sensor and brightness sensor. With a push-button/switch input and external temperature sensor input. Page display with a maximum of 30 touch surfaces on 6 or 10 pages (dependent on the mounting method). Viewing angle display: 160° - 160°. Mounting via a separate flush-mounted box. External power supply: 20-32 VDC (SELV).
KNX-EIB
* Produto novo em sua embalagem original com todas as garantias e certificações de NIESSEN
Best sellers
▲Mais informação
▲- Tipo de produto alargado:
- RT/U30.0.1-811
- ID do produto:
- 2TMA200050W0007
- EAN:
- 6955891816183
- Descrição do catálogo:
- RT/U30.0.1-811 RoomTouch 5 -811
- Descrição longa:
- Multifunctional HD IPS KNX touchdisplay as a room control element for visualisation and control of all functions in a KNX system. For the display and intuitive control of the following standard KNX functions: Switching, rocker switch, dimming (4-bit and 8-bit), slider, blind, RGBW control element, room temperature control element, Split Unit control element, step switch, scene switch, display element or audio control element. Additional functions: 20 fault and alarm messages, 10 logic functions, 10 timers each with 6 switching times, 4 scene actuators, 1 room temperature controller and individual pages can be protected with a PIN code. Status display, display of date and time, as well as inside and outside temperature. Installed temperature sensor, proximity sensor and brightness sensor. With a push-button/switch input and external temperature sensor input. Page display with a maximum of 30 touch surfaces on 6 or 10 pages (dependent on the mounting method). Viewing angle display: 160° - 160°. Mounting via a separate flush-mounted box. External power supply: 20-32 VDC (SELV).
Acessório
| Identificador | Descrição | tipo | Qt | Unidade de Medida |
|---|---|---|---|---|
| 2CKA006300A1611 | TZW/U.0.1.CK Anti-theft protection tool | TZW/U.0.1.CK | 1 | piece |
| 2CKA006220A0721 | DP4-T-1 Temperature Sensor | DP4-T-1 | 1 | piece |
| 2CDG120037R0011 | CP-D24/2.5 priOn Power Supply, 24 V DC, 2.5 A, MDRC | CP-D24/2.5 | 1 | piece |
| 2TMA200160B0003 | BOX/U5.1 Mounting box 5Inch FM | BOX/U5.1 | 1 | piece |
Installation
- Instruções e Manuais:
- 2TMU190000M0049
Technical
- Ficha de dados, informação técnica:
- No document needed
- Auxiliary Voltage AC/DC:
- 20 V AC/DC
32 V AC/DC
- Compatible Bus Systems:
- KNX (TP)
- Product Range:
- KNX
- Tipo de apoio:
- Flush Mounted
- RAL Number:
- Similar to RAL 9016
- Color:
- studio white
- Tamanho do ecrã:
- 5 in
- Application Function:
- Blind / Shutter / Shading Control
Electrical Load and Light Control
Data Communication / Multimedia
Room Climate Control
Safety and Security
Environmental
- Estado RoHS:
- Following EU Directive 2011/65/EU
- Informação RoHS:
- 9AKK107680A8249
- REACH Declaration:
- 2CKA309999E9999
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Peso Líquido do Produto:
- 367g
Certificates and Declarations
- Declaração de conformidade -CE:
- 9AKK107680A8246
Classifications
- ETIM 8:
- EC001585 - Multi operating device for bus system
- ETIM 9:
- EC001585 - Multi operating device for bus system
- Categoria REEE:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- REEE B2C / B2B:
- Business To Consumer
- CN8:
- 8537 10 91
- eClass:
- V11.0 : 27143101
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| 2TMA200050W0007 RT/U 30.0.1-811 PT_2TMA200050W0007.pdf | 88 Kbytes |
 |
