> EATON - MOELLER>Automatismos programáveis ​​XC>XT-FIL-1 285316 Y7-285316 ELECTRIC 24V DC filtro externo para XC100
ANUNCIAR
Produto anterior

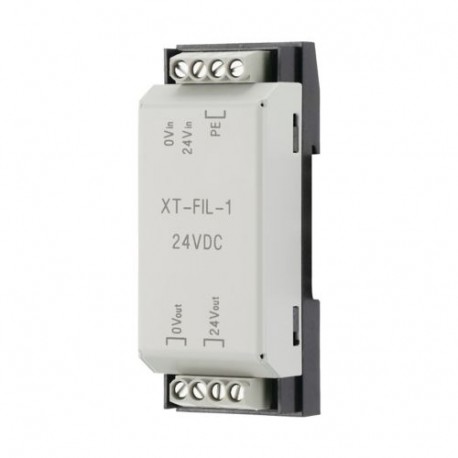

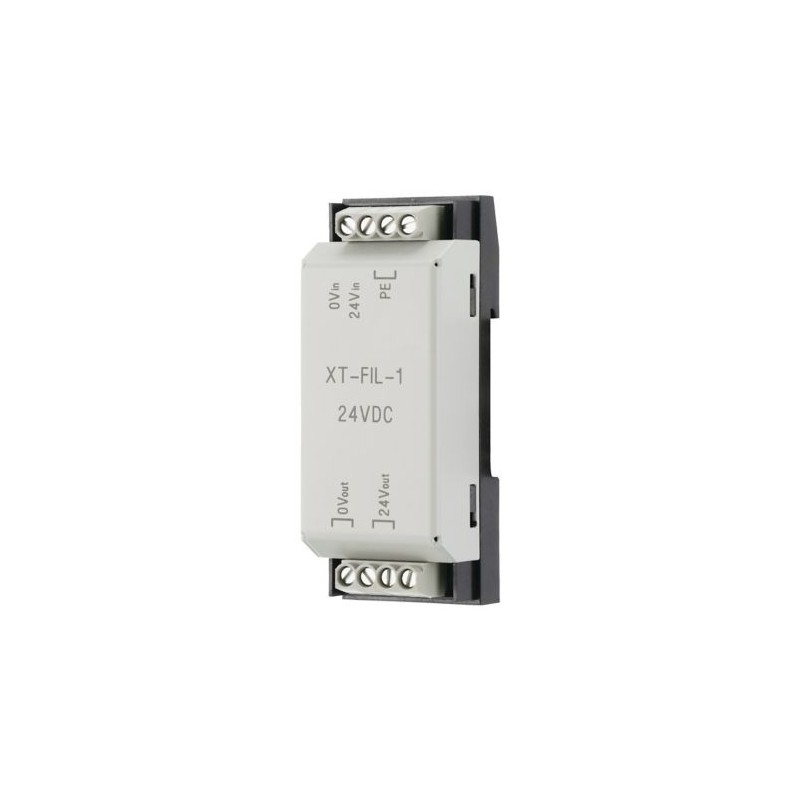

XT-FIL-1 285316 Y7-285316 EATON ELECTRIC 24V DC filtro externo para XC100 Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

XT-FIL-1 285316 Y7-285316 EATON ELECTRIC 24V DC filtro externo para XC100

XT-FIL-1

285316

Y7-285316

EATON-MOELLER

24V DC filtro externo para XC100

Filtro de interferência para fonte de alimentação externa 24VDC (XC100/200)

Eaton XT Interference filter for the external supply of the 24VDC XC100/200

Para suprimir a interferência da fonte de alimentação externa de 100 V CC do XC24 / 200. Consumo máximo de corrente 2.2A.

Mais detalhes


Controladores industriais (PLC) > Acessórios para controladores

Automatismos programáveis ​​XC

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $209.89
Preço unitário: $209.89
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton XT Accessory Interference filter
Catalog Number
285316
EAN
4015082853167
Product Length/Depth
30 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.09 kg
Certifications
UL508
EN 50178
IEC/EN 61131-2
CSA
UL Category Control No.: NRAQ
CSA-C22.2 No. 0-M
CSA Class No.: 2252-01
UL File No.: E135462
CE
CSA File No.: 012528
UL
CSA-C22.2 No. 142-M
Model Code
XT-FIL-1

Especificações do produto

Features
Mains overvoltage protection (power supply)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
2
Rated impulse withstand voltage (Uimp)
850 V (auxiliary and control circuits)
Mounting position
Vertical
Horizontal
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
0 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Overvoltage category
II
Emitted interference
Class A (according to DIN/EN 55011/22)
Electrical accessory type
Other
Interference immunity
According to EN 50081-2
Connection type
Screw terminals
Impact resistance
500 g/⌀ 50 mm ±25 g
Residual ripple
≤ 5 %
Current consumption
2.2 A max.
Degree of protection
IP20
Mechanical accessory type
Other
Vibration resistance
10 - 57 Hz, ± 0.075 mm
57 - 150 Hz, ± 1.0 g
Shock resistance
15 g, Mechanical, Shock duration 11 ms
Input voltage at DC - max
24 V
Input voltage at DC - min
20.4 V
Output current at AC, 50 Hz - max
2.2 A
Output voltage at DC - max
24 V
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Supply voltage - max
28.8 V
Potential isolation
Power supply, Input voltage against PE: yes
Power supply, Output voltage against PE: yes
Terminal capacity
0.2 - 2.5 mm² (22 - 12 AWG), solid, Screw terminals
0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule, Screw terminals

ETIM for 285316 PLC´s (EC002584)
Característica Valor
Tipo de acessório elétrico (EF005722) Outro
Tipo de acessório mecânico (EF005994) Outro
Acessório (EF013236) Sim
Peça de substituição (EF013237) Não
