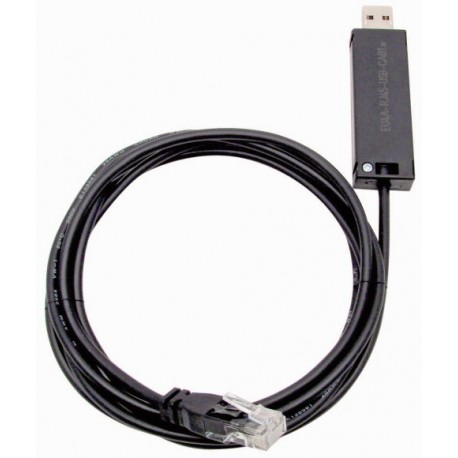

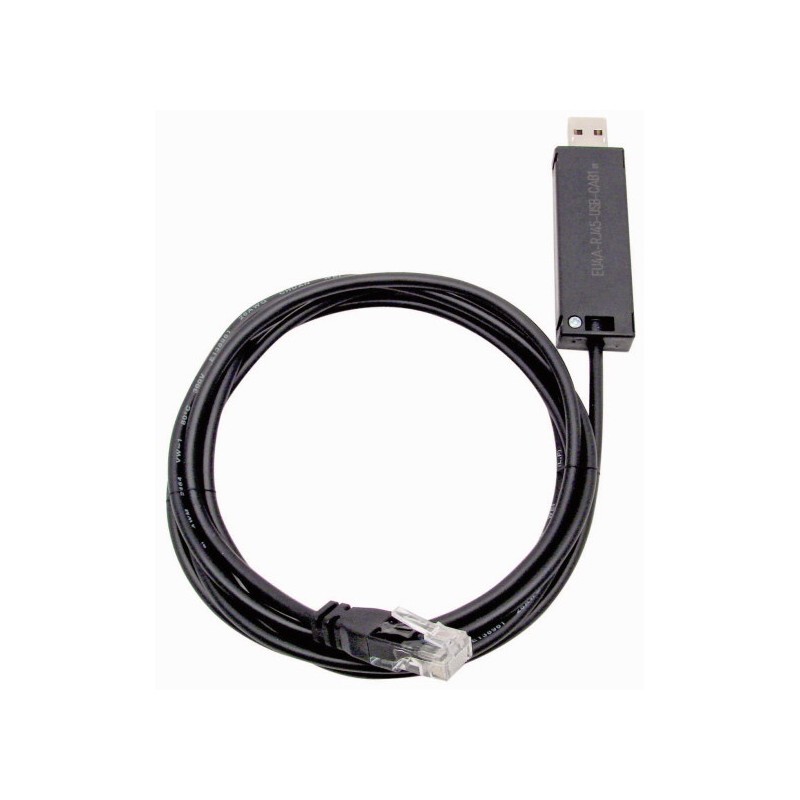

EU4A-RJ45-USB-CAB1 115735 EATON MOELLER Controle Fácil programação por cabo USB Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

EU4A-RJ45-USB-CAB1 115735 EATON MOELLER Controle Fácil programação por cabo USB

EU4A-RJ45-USB-CAB1

115735

EATON - MOELLER

Disponível

Envio hoje

Controle Fácil programação por cabo USB

Mais detalhes


Controladores Logicos Programaveis Plcs

XC Modular PLC- Accessories - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

Quantidade Preço
1+$130.14
4+$117.50
8+$113.36
12+$111.43
16+$110.47
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Produtos relacionados

Mais informação



Delivery programme
Description
  USB
Description
  Programming cable for XC, EC4P, EU5C-SWD-CAN, EU5C-SWD-DP, EU5C-SWD-EIP-MODTCP via USB port
Function
  For transferring the user program to the PLC or for diagnosing SmartWire-DT networks
Length
 m2
For use with
  EC4P
XC100
XC200
XC121
easy800-SWD
EU5C
For use with
  EU5C, XC, EC4P via USB interface
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-20
Operating ambient temperature max.
 °C45
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / PLC connection cable (EC000237)
Electric engineering, automation, process control engineering / Control / Control (accessories) / SPS cable connection ([email protected] [ACN746008])
Function
  PLC - PC
Length
 m1.5
Suitable for input board PLC
  Yes
Suitable for output card PLC
  Yes
Suitable for digital signals
  Yes
Suitable for analogue signals
  Yes
Type of electrical connection, field-sided
  Connection plug board
Type of electrical connection, box-sided
  Connection plug board
Number of poles
  8
CAD data
>Product-specific CAD data
>3D Preview

Datasheet - PDF
