> EATON - MOELLER>Transformadores >STZ0,06(*/*) 914761 Y7-914761 ELECTRIC controle do transformador de fase
ANUNCIAR
Produto anterior Próximo produto

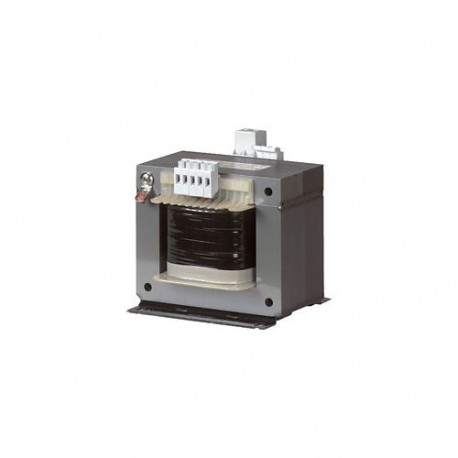

STZ0,06(*/*) 914761 Y7-914761 EATON ELECTRIC controle do transformador de fase Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

STZ0,06(*/*) 914761 Y7-914761 EATON ELECTRIC controle do transformador de fase

STZ0,06(*/*)

914761

Y7-914761

EATON-MOELLER

controle do transformador de fase

Transformador de controle 60 VA Monofásico Tensão personalizável

Eaton Moeller® series STZ Control transformer, 0.06 kVA, Rated input voltage 50 – 950 ± 5 % V, Rated output voltage 12 – 1000 V

Transformador de controle, Gama de produtos: Transformadores de controle monofásicos ST..., Função básica: Transformadores monofásicos de controle, isolamento e segurança STI, STZ, Tensão nominal de entrada: 50 – 950 ± 5 % V, Tensão nominal de saída: 12 – 1000 V, Potência nominal: 0,06 kVA, Redução de tempo: 0,13 kVA, Grau de proteção: IP00, Normas Construídas e testadas de acordo com: IEC/EN 61558-2-2/2-4/2-6, VDE 0570 Parte 2-2, VDE 0570 Parte 2-6 (transformadores de segurança), VDE 0570 Parte 2-4 (transformador de isolamento), Adequado para uso para: IEC/EN 60204-1, ÖVE-EN 13, VDE 0113, VDE 0100 Parte 410

Mais detalhes


Aparelhos elétricos de baixa tensão > Transformador de controle monofásica

Transformadores

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $153.13
Preço unitário: $153.13
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series STZ Control transformer
Catalog Number
914761
Product Length/Depth
75 mm
Product Height
91 mm
Product Width
85 mm
Product Weight
1.5 kg
Certifications
CSA-C22.2 No. 66
UL report applies to both US and Canada
CSA-C22.2 No. 66.1-06
IEC/EN 61558-2-2/2-4/2-6
UL Recognized
UL5085-1
VDE 0570 Part 2‐6 (safety transformers)
CSA-C22.2 No. 66.2-06
UL Category Control No.: XPTQ2, XPTQ8
IEC/EN 60204-1, ÖVE-EN 13
VDE 0570 Part 2-2
VDE 0570 Part 2-4 (isolating transformer)
Certified by UL for use in Canada
UL 5085-2
VDE 0113, VDE 0100 Part 410
IEC/EN 61558-2-2
UL File No.: E167225
CE
UL 506
Catalog Notes
Electrical characteristics: all details for no-load loss, short-circuit loss (copper losses), short-circuit voltage and efficiency values relate to a temperature of 20 °C
Model Code
STZ0,06(*/*)

Especificações do produto

Type
Single-phase control, isolating and safety transformer
Features
Separate windings
Fully Vacuum-impregnated
Reinforced insulation
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Apparent power
60 VA
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
No-load losses
6 W
Primary voltage 1 - max
950 V
Primary voltage 1 - min
50 V
Primary voltage 10 - max
0 V
Primary voltage 10 - min
0 V
Primary voltage 2 - max
950 V
Primary voltage 2 - min
50 V
Primary voltage 3 - max
950 V
Primary voltage 3 - min
50 V
Primary voltage 4 - max
950 V
Primary voltage 4 - min
50 V
Primary voltage 5 - max
950 V
Primary voltage 5 - min
50 V
Primary voltage 6 - max
950 V
Built as
Isolating transformer
Safety transformer
Conductor material
Copper
Degree of protection
IP00
Connection lug
Yes for < 63 A
Connection type
Terminations, < 63 A
Duty factor
100 %
Insulation material type (IEC 85)
B
Efficiency
85 %
Relative short-circuit voltage
7.8 %
Suitable for
Branch circuits, (UL/CSA)
Insulation class
B
Primary tapping
± 5 %
Primary voltage 6 - min
50 V
Primary voltage 7 - max
0 V
Primary voltage 7 - min
0 V
Primary voltage 8 - max
0 V
Primary voltage 8 - min
0 V
Primary voltage 9 - max
0 V
Primary voltage 9 - min
0 V
Rated frequency - max
60 Hz
Rated frequency - min
50 Hz
Rated operational current for specified heat dissipation (In)
0 A
Rated power
0.06 VA
Secondary voltage 1 - max
1000 V
Secondary voltage 1 - min
12 V
Secondary voltage 10 - max
0 V
Secondary voltage 10 - min
0 V
Secondary voltage 2 - max
1000 V
Secondary voltage 2 - min
12 V
Secondary voltage 3 - max
1000 V
Secondary voltage 3 - min
12 V
Secondary voltage 4 - max
1000 V
Product category
Single-phase control transformers ST
Secondary voltage 4 - min
12 V
Secondary voltage 5 - max
1000 V
Secondary voltage 5 - min
12 V
Secondary voltage 6 - max
1000 V
Secondary voltage 6 - min
12 V
Secondary voltage 7 - max
0 V
Secondary voltage 7 - min
0 V
Secondary voltage 8 - max
0 V
Secondary voltage 8 - min
0 V
Secondary voltage 9 - max
0 V
Secondary voltage 9 - min
0 V
Short-circuit losses
5 W
Short-time rating
0.13 kVA
Static heat dissipation, non-current-dependent Pvs
11 W
Voltage rating - max
600 V
Power consumption in standby mode
32 W

ETIM for 914761 Low-voltage industrial controls and switchgear (EC002486)
Característica Valor
Built as safety transformer (EF007235) true
Built as isolating transformer (EF007238) true
Built as energy saving transformer (EF007005) false
Primary voltage 1 (EF006125) 50 V
Primary voltage 2 (EF006126) 50 V
Primary voltage 3 (EF006127) 50 V
Primary voltage 4 (EF007410) 50 V
Primary voltage 5 (EF007411) 50 V
Primary voltage 6 (EF007412) 50 V
Primary voltage 7 (EF007413) 0 V
Primary voltage 8 (EF007414) 0 V
Primary voltage 9 (EF007415) 0 V
Primary voltage 10 (EF007409) 0 V
Secondary voltage 1 (EF007472) 12 V
Secondary voltage 2 (EF007474) 12 V
Secondary voltage 3 (EF007475) 12 V
Secondary voltage 4 (EF007476) 12 V
Secondary voltage 5 (EF007477) 12 V
Secondary voltage 6 (EF007478) 12 V
Secondary voltage 7 (EF007479) 0 V
Secondary voltage 8 (EF007480) 0 V
Secondary voltage 9 (EF007481) 0 V
Secondary voltage 10 (EF007473) 0 V
Rated apparent power (EF008864) 60 VA
Power (EF000076) None W
Power consumption in standby mode (EF012331) 32 W
Type of insulation material according to IEC 85 (EF007299) B
Short-circuit-proof (EF007332) false
Relative short circuit voltage (EF007452) 7.8 %
Width (EF000008) 85 mm
Height (EF000040) 91 mm
Depth (EF000049) 75 mm
Degree of protection (IP) (EF005474) IP00
Ring core (EF006170) false
Suitable for mounting on PCB (EF006157) false
Modular version (EF001126) false
Conductor material (EF001622) Copper
