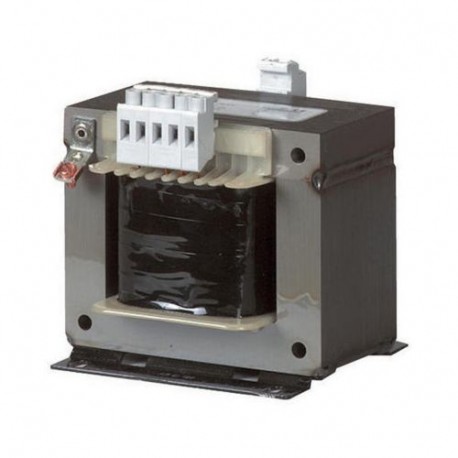

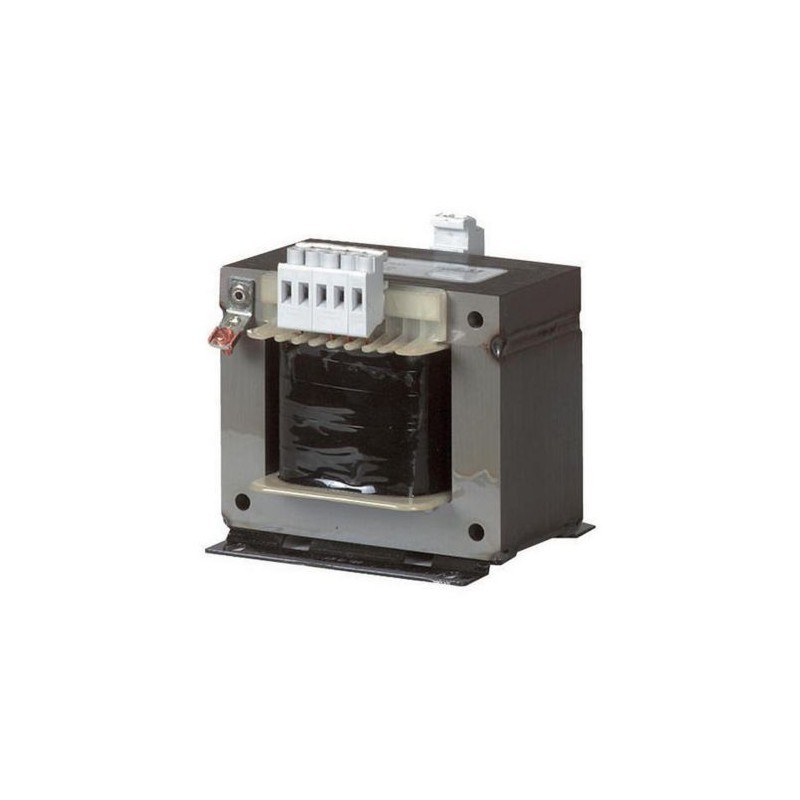

EATON - MOELLER STN0,1(*/*) 204939 Y7-204939 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

STN0,1(*/*) 204939 Y7-204939 EATON ELECTRIC controle do transformador de fase

Referência: STN0,1(*/*)

Código: 204939

Número de catálogo: Y7-204939

Fabricante: EATON - MOELLER

Descrição:

controle do transformador de fase
Transformador de controle; 100 VA; Fase única; Tensão personalizável
Eaton Moeller® series STN Control transformer, 0.1 kVA, Rated input voltage 100 – 690 ± 5 % V, Rated output voltage 12 – 250 V
Transformador de controle, Gama de produtos: Transformadores de controle monofásicos ST..., Função básica: Transformadores de controle STN monofásicos, Tensão nominal de entrada: 100 – 690 ± 5% V, Tensão nominal de saída: 12 – 250 V, Potência nominal: 0,1 kVA, Capacidade nominal de curto prazo: 0,16 kVA, Grau de proteção: IP00, Normas Construídas e testadas de acordo com: IEC/EN 61558-2-2, VDE 0570 Parte 2-2, Adequado para uso para: IEC/EN 60204-1, ÖVE-EN 13, VDE 0113, VDE 0100 Parte 410

Categorias:

  • Aparelhos elétricos de baixa tensão > Transformador de controle monofásica
  • EATON - MOELLER > Transformadores

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 89,48 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 3 semanas.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series STN Control transformer
Catalog Number
204939
Product Length/Depth
75 mm
Product Height
91 mm
Product Width
85 mm
Product Weight
1.5 kg
Certifications
CE
VDE 0113, VDE 0100 Part 410
CSA-C22.2 No. 66.2-06
UL Recognized
IEC/EN 61558-2-2
CSA-C22.2 No. 66
IEC/EN 60204-1, ÖVE-EN 13
UL5085-1
UL 5085-2
UL Category Control No.: XPTQ2, XPTQ8
VDE 0570 Part 2-2
UL report applies to both US and Canada
Certified by UL for use in Canada
UL 506
CSA-C22.2 No. 66.1-06
UL File No.: E167225
Catalog Notes
Electrical characteristics: all details for no-load loss, short-circuit loss (copper losses), short-circuit voltage and efficiency values relate to a temperature of 20 °C
Model Code
STN0,1(*/*)

Especificações do produto

Type
Single-phase STN control transformers
Features
Fully Vacuum-impregnated
Separate windings
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Apparent power
100 VA
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
No-load losses
7 W
Primary voltage 1 - max
690 V
Primary voltage 1 - min
100 V
Primary voltage 10 - max
0 V
Primary voltage 10 - min
0 V
Primary voltage 2 - max
0 V
Primary voltage 2 - min
0 V
Primary voltage 3 - max
0 V
Primary voltage 3 - min
0 V
Primary voltage 4 - max
0 V
Primary voltage 4 - min
0 V
Primary voltage 5 - max
0 V
Primary voltage 5 - min
0 V
Primary voltage 6 - max
0 V
Conductor material
Copper
Degree of protection
IP00
Connection lug
Yes for > 115 A
Connection type
Terminations, < 115 A
Duty factor
100 %
Insulation material type (IEC 85)
B
Efficiency
84 %
Relative short-circuit voltage
10 %
Suitable for
Branch circuits, (UL/CSA)
Insulation class
B
Primary tapping
± 5 %
Primary voltage 6 - min
0 V
Primary voltage 7 - max
0 V
Primary voltage 7 - min
0 V
Primary voltage 8 - max
0 V
Primary voltage 8 - min
0 V
Primary voltage 9 - max
0 V
Primary voltage 9 - min
0 V
Rated frequency - max
60 Hz
Rated frequency - min
50 Hz
Rated operational current for specified heat dissipation (In)
0 A
Rated power
0.1 VA
Secondary voltage 1 - max
250 V
Secondary voltage 1 - min
12 V
Secondary voltage 10 - max
0 V
Secondary voltage 10 - min
0 V
Secondary voltage 2 - max
0 V
Secondary voltage 2 - min
0 V
Secondary voltage 3 - max
0 V
Secondary voltage 3 - min
0 V
Secondary voltage 4 - max
0 V
Product category
Single-phase control transformers ST
Secondary voltage 4 - min
0 V
Secondary voltage 5 - max
0 V
Secondary voltage 5 - min
0 V
Secondary voltage 6 - max
0 V
Secondary voltage 6 - min
0 V
Secondary voltage 7 - max
0 V
Secondary voltage 7 - min
0 V
Secondary voltage 8 - max
0 V
Secondary voltage 8 - min
0 V
Secondary voltage 9 - max
0 V
Secondary voltage 9 - min
0 V
Short-circuit losses
15 W
Short-time rating
0.16 kVA
Static heat dissipation, non-current-dependent Pvs
22 W
Voltage rating - max
600 V
Power consumption in standby mode
11 W

ETIM for 204939 Componentes industriais para Baixa Tensão (EC002486)

Nome da característicaConstruído como transformador de segurança (EF007235)
Valor da característicaNão
Nome da característicaConstruído como transformador de isolamento (EF007238)
Valor da característicaNão
Nome da característicaConstruído como transformador de economia de energia (EF007005)
Valor da característicaNão
Nome da característicaTensão primária 1 (EF006125)
Valor da característica100 V
Nome da característicaTensão primária 2 (EF006126)
Valor da característica0 V
Nome da característicaTensão primária 3 (EF006127)
Valor da característica0 V
Nome da característicaTensão primária 4 (EF007410)
Valor da característica0 V
Nome da característicaTensão primária 5 (EF007411)
Valor da característica0 V
Nome da característicaTensão primária 6 (EF007412)
Valor da característica0 V
Nome da característicaTensão primária 7 (EF007413)
Valor da característica0 V
Nome da característicaTensão primária 8 (EF007414)
Valor da característica0 V
Nome da característicaTensão primária 9 (EF007415)
Valor da característica0 V
Nome da característicaTensão primária 10 (EF007409)
Valor da característica0 V
Nome da característicaTensão secundária 1 (intervalo) (EF007472)
Valor da característica12 V
Nome da característicaTensão secundária 2 (intervalo) (EF007474)
Valor da característica0 V
Nome da característicaTensão secundária 3 (intervalo) (EF007475)
Valor da característica0 V
Nome da característicaTensão secundária 4 (EF007476)
Valor da característica0 V
Nome da característicaTensão secundária 5 (EF007477)
Valor da característica0 V
Nome da característicaTensão secundária 6 (EF007478)
Valor da característica0 V
Nome da característicaTensão secundária 7 (EF007479)
Valor da característica0 V
Nome da característicaTensão secundária 8 (EF007480)
Valor da característica0 V
Nome da característicaTensão secundária 9 (EF007481)
Valor da característica0 V
Nome da característicaTensão secundária 10 (EF007473)
Valor da característica0 V
Nome da característicaPotência aparente nominal (EF008864)
Valor da característica100 VA
Nome da característicaConsumo de energia no modo de espera (EF012331)
Valor da característica11 W
Nome da característicaTipo de material de isolamento de acordo com IEC 85 (EF007299)
Valor da característicaB
Nome da característicaProtegido contra curtos-circuitos (EF007332)
Valor da característicaNão
Nome da característicaTensão relativa de curto-circuito (EF007452)
Valor da característica10 %
Nome da característicaLargura (EF000008)
Valor da característica85 mm
Nome da característicaAltura (EF000040)
Valor da característica91 mm
Nome da característicaProfundidade (EF000049)
Valor da característica75 mm
Nome da característicaGrau de proteção (IP) (EF005474)
Valor da característicaIP00
Nome da característicaNúcleo do anel (EF006170)
Valor da característicaNão
Nome da característicaAdequado para montagem em placa/PCB (EF006157)
Valor da característicaNão
Nome da característicaVersão modular (EF001126)
Valor da característicaNão
Nome da característicaMaterial do condutor (EF001622)
Valor da característicaCobre

DATASHEET - PDF
