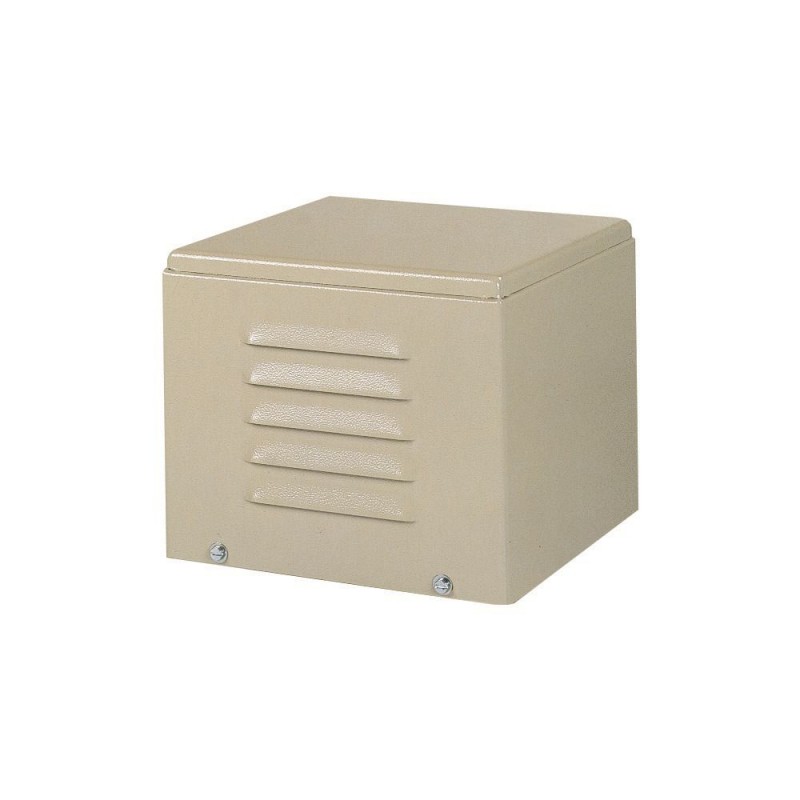

EATON - MOELLER +IP23/33 200754 Y7-200754 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

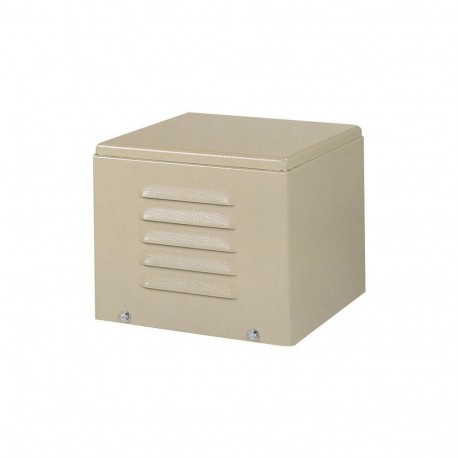

+IP23/33 200754 Y7-200754 EATON ELECTRIC Dry Type Transformers. Só pode ser vendido montado.

Referência: +IP23/33

Código: 200754

Número de catálogo: Y7-200754

Fabricante: EATON - MOELLER

Descrição:

Dry Type Transformers. Só pode ser vendido montado.
Habitação. IP23. AxLxP=410x340x520 mm. Para transformador. Montagem em
Invólucros IP23, Para uso com DTZ2.5 ... DTZ6.3
Invólucro IP23 para DTZ2.5 a DTZ6.3, o invólucro pode ser usado com tensão primária ou secundária de 42 V a no máximo 1000 V, incluindo derivações

Categorias:

  • Aparelhos elétricos de baixa tensão > Caixa vazia para aparamenta
  • EATON - MOELLER > Transformadores

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

* Este artigo é restrito. Por favor, peça-nos um orçamento para verificar se há unidades disponíveis ou você oferecer um produto alternativo.

Solicite um orçamento e verificaremos a disponibilidade das unidades. Caso não estejam disponíveis, um dos nossos técnicos procurará uma solução alternativa.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series Accessory Housing
Catalog Number
200754
EAN
4015082007546
Product Length/Depth
250 mm
Product Height
520 mm
Product Width
360 mm
Product Weight
9.8 kg
Compliances
CE
Catalog Notes
Electrical characteristics: all details for no-load loss, short-circuit loss (copper losses), short-circuit voltage and efficiency values relate to a temperature of 20 °C
Model Code
+IP23/33

Especificações do produto

Features
Separate windings
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Enclosure material
Steel
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
236 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Accessories
Degree of protection
IP23
NEMA Other
Model
Built-in
Duty factor
100 %
Insulation class
B
F
Radiated heat dissipation with separate mounting
236 W (at an ambient temperature of 20 °C)

ETIM for 200754 Componentes industriais para Baixa Tensão (EC000712)

Nome da característicaMaterial da caixa protetora (EF001596)
Valor da característicaAço
Nome da característicaLargura (EF000008)
Valor da característica360 mm
Nome da característicaAltura (EF000040)
Valor da característica520 mm
Nome da característicaProfundidade (EF000049)
Valor da característica250 mm
Nome da característicaCom tampa transparente (EF001094)
Valor da característicaNão
Nome da característicaAdequado para paragem de emergência (EF001433)
Valor da característicaNão
Nome da característicaModelo (EF000010)
Valor da característicaInstalado
Nome da característicaGrau de proteção (IP) (EF005474)
Valor da característicaIP23
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característicaOutro
