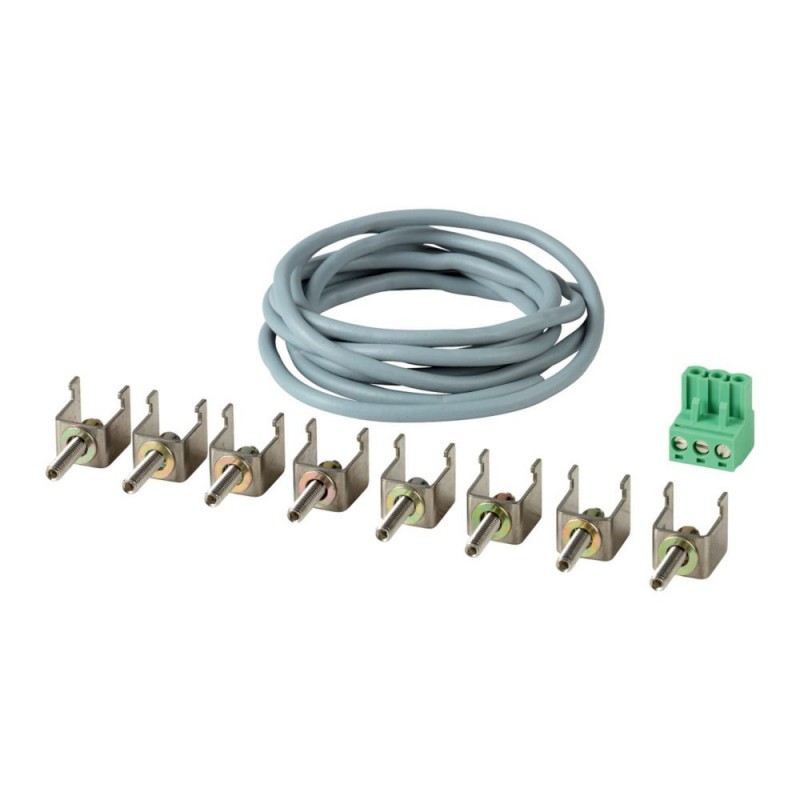

EATON - MOELLER ACCESSORIES-TP-57-IR-1 139828 Y7-139828 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

ACCESSORIES-TP-57-IR-1 139828 Y7-139828 EATON ELECTRIC ACESSÓRIOS-TP-57-IR-1

Referência: ACCESSORIES-TP-57-IR-1

Código: 139828

Número de catálogo: Y7-139828

Fabricante: EATON - MOELLER

Descrição:

ACESSÓRIOS-TP-57-IR-1
Fixação de acessórios para displays HMI de 5,7" com painel frontal padrão
Eaton TP Device accessories for 5.7 infrared touch panel with standard front
4 suportes de montagem com parafuso de partida, 1 cabo de junta, 1 plugue de alimentação, adequado para dispositivos xvh-34, XV-442-57, XV-460-57, XVS-440-57, dispositivos da série XVS-460-57 (fornecidos de série com dispositivos)

Categorias:

  • Controladores industriais (PLC) > Acessórios para controladores
  • EATON - MOELLER > Terminais de Toque IHM

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 49,55 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 3 semanas.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton TP Accessory Mounting set
Catalog Number
139828
EAN
7640130093409
Product Length/Depth
160 mm
Product Height
25 mm
Product Width
140 mm
Product Weight
0.037 kg
Certifications
UL/CSA certification not required
Catalog Notes
not relevant
Model Code
ACCESSORIES-TP-57-IR-1

Especificações do produto

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
4 mounting brackets with grub screw for flush mounting
1 Sealing profile for flush mounting device
1 power supply plug
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
0 °C
Electrical accessory type
Other
Mechanical accessory type
Other
Product category
Standard accessories

ETIM for 139828 PLC´s (EC002584)

Nome da característicaTipo de acessório elétrico (EF005722)
Valor da característicaOutro
Nome da característicaTipo de acessório mecânico (EF005994)
Valor da característicaOutro
Nome da característicaAcessório (EF013236)
Valor da característicaSim
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão
