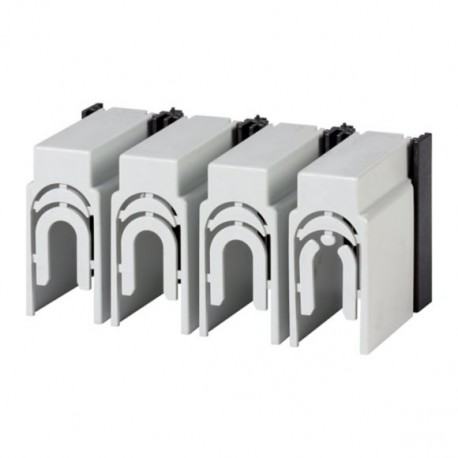

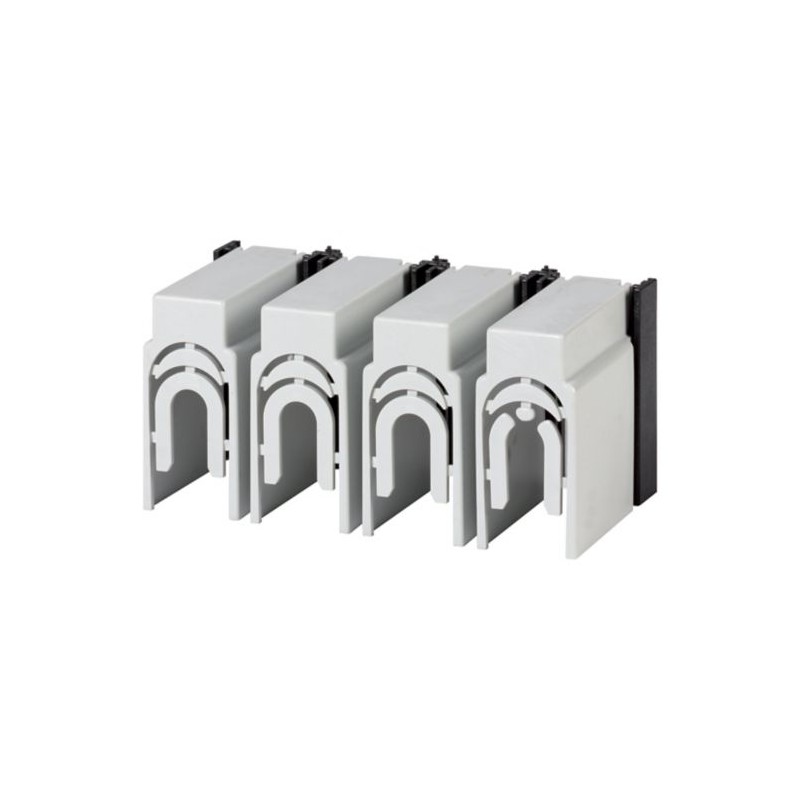

NZM3-4-XKSAE 119871 EATON MOELLER acessório Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

NZM3-4-XKSAE 119871 EATON MOELLER acessório

NZM3-4-XKSAE

119871

EATON - MOELLER

Disponível

Envio hoje

acessório

Mais detalhes


Disjuntores

Terminals - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

Quantidade Preço
1+$69.31
6+$61.65
11+$60.00
16+$59.14
22+$58.53
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

PRODUTOS VISUALIZADOS


Produtos relacionados

Mais informação



Delivery programme
Accessories
  Terminal cover
Number of conductors
  4 pole
For use with
  NZM3(-4), PN3(-4), NS3(-4)
Terminal capacities

Type of conductor

Cu
 mm21 x 16 - 240
2 x 16 - 240
Terminal capacities

Al
 mm21 x 10 - 120
2 x 10 - 120
Notes

Model contains parts for one switch side located at top or bottom for 3 or 4 pole switch.

contact protection for connection of cable lugs to screw connection.

When using insulated conductor material to IP2X

Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Phase separation plate for power circuit breaker (EC002035)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Phase separation plate for circuit breaker ([email protected] [ACN959008])
Model
  -
Dimensions
IL01219044Z (AWA1230-2513) cable lug cover, individual

>>

Datasheet - PDF

Título: Língua: Tamanho: Tipo:
pdf- Cover, 4p, for cable lugs, size 3 - EATON - NZM3-4-XKSAE - 119871 English 200 Kbytes pdf- Cover, 4p, for cable lugs, size 3 - EATON - NZM3-4-XKSAE - 119871
