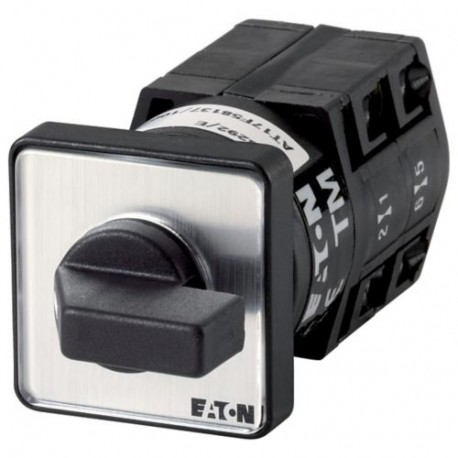

TM-2-8292/E 074877 Y7-74877 EATON ELECTRIC interruptor rotativo, Iu: 10A 440V AC-21

Referência: TM-2-8292/E

Código: 074877

Número de catálogo: Y7-74877

Fabricante: EATON - MOELLER

Descrição:

interruptor rotativo, Iu: 10A 440V AC-21
Interruptor de desconexão ON-OFF 3 polos 10 A Placa frontal 0-1 90°
Eaton Moeller® series TM ON-OFF switches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 3, 90 °, maintained, With 0 (Off) position, 0-1, Design number 8292
Interruptor de ligar e desligar, Gama de produtos: Interruptores de controlo, Referência do grupo de peças: TM, com punho de polegar preto e placa frontal, Contactos: 3, Grau de protecção: Frontal IP65, Desenho: montagem embutida, Ângulo de comutação: 90 °, Desempenho de comutação: mantido, Com posição 0 (Desligado), placa frontal: 0-1, Potência do motor AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Corrente nominal ininterrupta: Iu = 10 A, 2 unidade(s) de contato, Normas: IEC/EN 60947, VDE 0660, CSA, UL, Chave de controle de acordo com IEC/EN 60947-5-1, Chave auxiliar de acordo com IEC/EN 60947-5-1

Categorias:

  • Aparelhos elétricos de baixa tensão > Suporte
  • EATON - MOELLER > Desconexões e Comutadores Cam

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 70,12 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series TM On-off switch
Catalog Number
074877
EAN
4015080748779
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
43 mm
Product Weight
0.037 kg
Certifications
VDE 0660
Certified by UL for use in Canada
UL 508
IEC/EN 60947
UL
UL File No.: E36332
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
CE
IEC/EN 60947-3
CSA
CSA-C22.2 No. 94
UL Category Control No.: NLRV
IEC/EN 60947-5-1
Model Code
TM-2-8292/E

Especificações do produto

Type
ON-OFF switch
Product Category
Control switches
Actuator color
Black
Actuator function
Maintained
With 0 (Off) position
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
UV resistance only in connection with protective shield.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Black thumb grip and front plate
Operating frequency
1200 Operations/h
Pollution degree
3
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Rated impulse withstand voltage (Uimp)
4000 V AC
Rated permanent current at AC-21, 400 V
0 A
Rated uninterrupted current (Iu)
10 A
Static heat dissipation, non-current-dependent Pvs
0 W
Switching angle
90 °
Switching power at 400 V
0 kW
Device construction
Built-in device fixed built-in technique
Rated short-time withstand current (Icw)
0 kA
Electrical connection type of main circuit
Screw connection
Design
8292
Mounting position
As required
Actuator type
Short thumb-grip
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Assigned motor power at 115/120 V, 60 Hz, 1-phase
0.33 HP
Assigned motor power at 115/120 V, 60 Hz, 3-phase
0.75 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
0.75 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase
1 HP
Assigned motor power at 277 V, 60 Hz, 1-phase
0.75 HP
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.15 W
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Rated conditional short-circuit current (Iq)
0 kA
Overvoltage category
III
Control circuit reliability
1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Degree of protection (front side)
IP65
Number of poles
3
Mounting method
Flush mounting
Degree of protection
NEMA 12
Suitable for
Front mounting 4-hole
Number of switches
1
Screw size
M2.5, Terminal screw
Inscription
0-1
Lifespan, mechanical
1,000,000 Operations
Switching capacity (auxiliary contacts, general use)
10A, IU, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
A300 (UL/CSA)
Terminal capacity
2 x 1.0 mm², flexible with ferrules to DIN 46228
1 x 1.5 mm², flexible
1 x 1.5 mm², solid or stranded
2 x 1.5 mm², flexible
14 AWG, solid or flexible with ferrule
2 x 1,5 mm², solid or stranded
1 x 1.0 mm², flexible with ferrules to DIN 46228
Switching capacity (main contacts, general use)
10 A, Rated uninterrupted current max. (UL/CSA)
Number of auxiliary contacts (normally open contacts)
0
Number of contact units
2
Rated operating voltage (Ue) - max
500 V
Rated operating voltage (Ue) - min
500 V
Rated operational voltage (Ue) at AC - max
500 V
Short-circuit protection rating
10 A gG/gL, Fuse, Contacts
Rated operational current (Ie) at AC-21, 440 V
10 A
Rated operational current for specified heat dissipation (In)
10 A
Rated operational power at AC-23A, 400 V, 50 Hz
3 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
0 kW
Tightening torque
3.5 lb-in, Screw terminals
0.4 Nm, Screw terminals
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.

ETIM for 074877 Componentes industriais para Baixa Tensão (EC000216)

Nome da característicaVersão de interruptor principal (EF006981)
Valor da característicaNão
Nome da característicaVersão de chave de manutenção/serviço (EF006986)
Valor da característicaNão
Nome da característicaVersão de interruptor de segurança (EF006985)
Valor da característicaNão
Nome da característicaVersão como instalação de paragem de emergência (EF006959)
Valor da característicaNão
Nome da característicaVersão do interruptor de inversão (EF009408)
Valor da característicaNão
Nome da característicaNúmero de interruptores (EF005586)
Valor da característica1
Nome da característicaTensão nominal de operação (EF001435)
Valor da característica690 V
Nome da característicaCorrente permanente nominal Iu (EF001389)
Valor da característica10 A
Nome da característicaCorrente permanente nominal em AC-21, 400 V (EF009165)
Valor da característica0 A
Nome da característicaPotência de operação nominal em AC-3, 400 V (EF001364)
Valor da característica0 kW
Nome da característicaCorrente nominal suportável lcw atual (EF007050)
Valor da característica0 kA
Nome da característicaPotência de operação nominal em AC-23, 400 V (EF007027)
Valor da característica3 kW
Nome da característicaPotência de comutação a 400 V (EF009166)
Valor da característica0 kW
Nome da característicaCorrente condicional nominal de curto-circuito Iq (EF001444)
Valor da característica0 kA
Nome da característicaNúmero de polos (EF001391)
Valor da característica3
Nome da característicaNúmero de contatos auxiliares como contato normalmente fechado (EF001377)
Valor da característica0
Nome da característicaNúmero de contatos auxiliares como contato normalmente aberto (EF001376)
Valor da característica0
Nome da característicaNúmero de contatos auxiliares como contato de comutação (EF003531)
Valor da característica0
Nome da característicaAcionamento do motor opcional (EF007386)
Valor da característicaNão
Nome da característicaAcionamento do motor integrado (EF006697)
Valor da característicaNão
Nome da característicaSaída de tensão opcional (EF007491)
Valor da característicaNão
Nome da característicaConstrução do dispositivo (EF008240)
Valor da característicaTécnica de instalação fixa para dispositivo embutido
Nome da característicaAdequado para montagem frontal de 4 furos (EF007247)
Valor da característicaSim
Nome da característicaAdequado para o centro de montagem frontal (EF007248)
Valor da característicaNão
Nome da característicaApropriado para a instalação do quadro de distribuição (EF007262)
Valor da característicaNão
Nome da característicaAdequado para montagem intermediária (EF007264)
Valor da característicaNão
Nome da característicaCor do elemento de atuação (EF007167)
Valor da característicaPreto
Nome da característicaTipo de elemento de controlo (EF006976)
Valor da característicaBotão de giro curto
Nome da característicaPossível interbloqueio (EF006281)
Valor da característicaNão
Nome da característicaTipo de conexão elétrica do circuito principal (EF006819)
Valor da característicaLigação com parafuso
Nome da característicaCom cablagem pré-montada (EF016444)
Valor da característicaNão
Nome da característicaGrau de proteção (IP), frente (EF003118)
Valor da característicaIP65
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característica12
Nome da característicaLargura (EF000008)
Valor da característica43 mm
Nome da característicaAltura (EF000040)
Valor da característica30 mm
Nome da característicaProfundidade (EF000049)
Valor da característica74 mm
