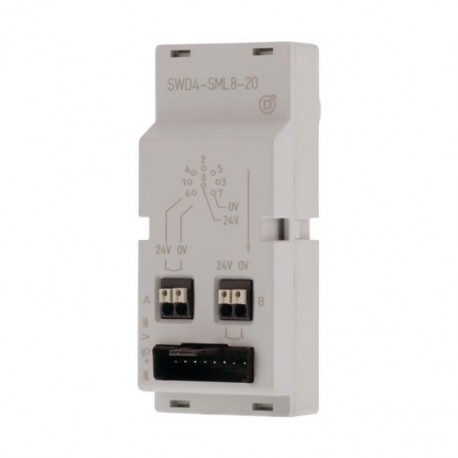

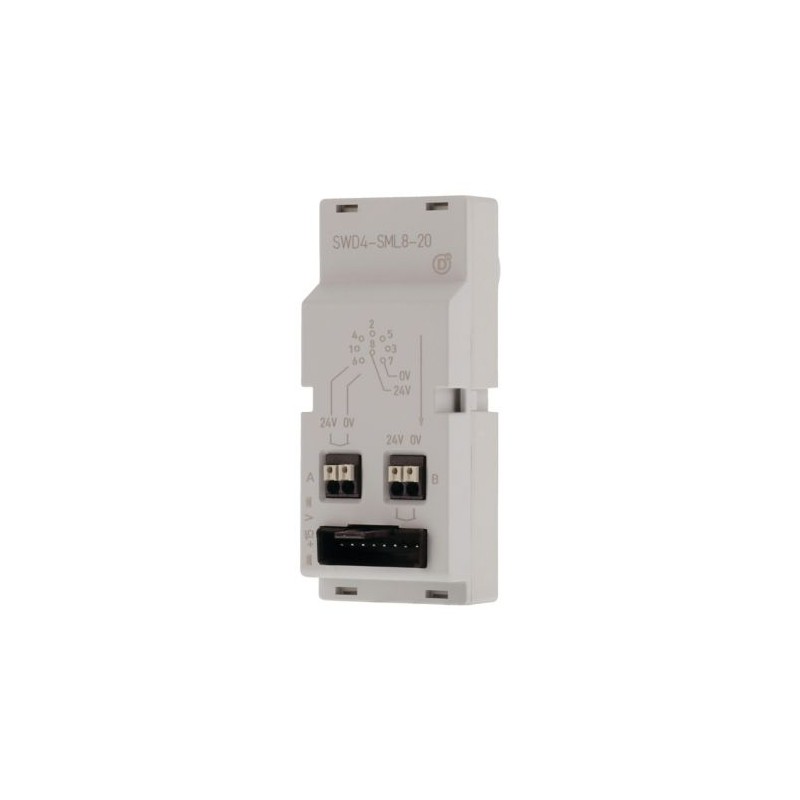

SWD4-SML8-20 121381 Y7-121381 EATON ELECTRIC Switch cabinet bushing, SmartWire-DT, flat to round cable, plug Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

SWD4-SML8-20 121381 Y7-121381 EATON ELECTRIC Switch cabinet bushing, SmartWire-DT, flat to round cable, plug

SWD4-SML8-20

121381

Y7-121381

EATON-MOELLER

Switch cabinet bushing, SmartWire-DT, flat to round cable, plug

Conector SWDT para conversão de cabo plano para cabo redondo de 8 polos

Bucha do gabinete de controle SmartWire-DT, transição de cabo plano SWD para cabo redondo, plug-in de condutor duplo, alimentador de tensão de controle adicional possível para partida do motor e contator, adequado para espessuras de parede de até 4 mm, grau de proteção IP67, dimensões de perfuração 18,5 mm, conexão de cabo plano SWD com terminal blade SWD4-8MF2 de 8 pólos, Cabo de conexão redondo via plugue

Mais detalhes


Controladores industriais (PLC) > Acessórios para controladores

Smartwire Darwin

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $114.21
Preço unitário: $114.21
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton SWD4 Accessory Switch cabinet bushing
Catalog Number
121381
EAN
4015081192106
Product Length/Depth
21 mm
Product Height
82.4 mm
Product Width
35 mm
Product Weight
0.05 kg
Certifications
EN 50178
IEC/EN 61131-2
CSA
UL
UL File No.: E29184
CSA File No.: 2324643
CSA Class No.: 3211-07
UL Category Control No.: NKCR
Catalog Notes
not relevant
Model Code
SWD4-SML8-20

Especificações do produto

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Air pressure
795 - 1080 hPa (operation)
Environmental conditions
Condensation: prevent with appropriate measures
Mounting position
As required
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Electrical accessory type
Plug
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Connection type
Plug, 8-pole
Connection 1: M20 Plug, 8-pole
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Degree of protection
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
IP20
Mechanical accessory type
Other
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Number of insertion cycles
200
Operating temperature - max
70 °C
Operating temperature - min
-25 °C
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
SmartWire-DT accessories

ETIM for 121381 PLC´s (EC002584)
Característica Valor
Tipo de acessório elétrico (EF005722) Ficha
Tipo de acessório mecânico (EF005994) Outro
Acessório (EF013236) Sim
Peça de substituição (EF013237) Não

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf 26 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SWD4-SML8-20 Y7-121381 121381 ES_174753.pdf 3 Mbytes SWD4-SML8-20 Y7-121381 121381 ES_174753.pdf
