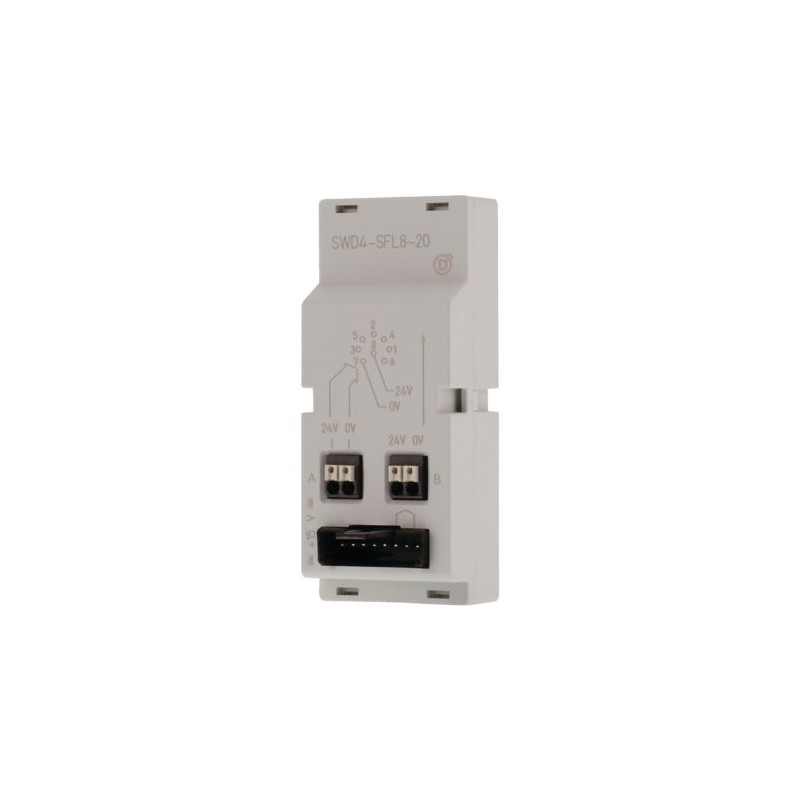

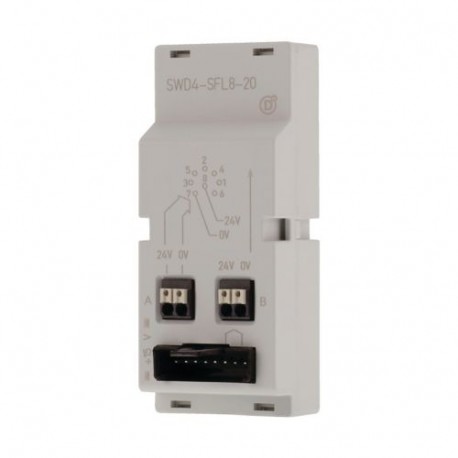

SWD4-SFL8-20 121380 Y7-121380 EATON ELECTRIC Switch cabinet bushing, SmartWire-DT, flat to round cable, sock.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

SWD4-SFL8-20 121380 Y7-121380 EATON ELECTRIC Switch cabinet bushing, SmartWire-DT, flat to round cable, sock..

SWD4-SFL8-20

121380

Y7-121380

EATON-MOELLER

Switch cabinet bushing, SmartWire-DT, flat to round cable, socket

Adaptador SWDT. Para conversão de cabo plano para cabo redondo. 8 pólos

Bucha do gabinete de controle SmartWire-DT, transição de cabo plano SWD para cabo redondo, cabo condutor duplo plug-in, alimentador de tensão de controle adicional para partida do motor e contator é possível, adequado para espessuras de parede de até 4 mm, grau de proteção IP67, dimensões de perfuração 18,5 mm, conexão de cabo plano SWD com terminal blade SWD4-8MF2 de 8 pólos, Cabo de conexão redondo via plugue

Mais detalhes


Controladores industriais (PLC) > Acessórios para controladores

Smartwire Darwin

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $114.21
Preço unitário: $114.21
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton SWD4 Accessory Switch cabinet bushing
Catalog Number
121380
EAN
4015081192090
Product Length/Depth
41 mm
Product Height
83 mm
Product Width
35 mm
Product Weight
0.045 kg
Certifications
UL File No.: E29184
EN 50178
CSA File No.: 2324643
UL
CSA
CSA Class No.: 3211-07
IEC/EN 61131-2
UL Category Control No.: NKCR
Model Code
SWD4-SFL8-20

Especificações do produto

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Air pressure
795 - 1080 hPa (operation)
Environmental conditions
Condensation: prevent with appropriate measures
Mounting position
As required
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Electrical accessory type
Plug
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Connection type
Connection 1: Plug, 8-pole
M20 socket, 8 pole
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Degree of protection
IP20
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
Mechanical accessory type
Other
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Number of insertion cycles
200
Operating temperature - max
70 °C
Operating temperature - min
-25 °C
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
Product category
SmartWire-DT accessories
Power loss
1 W

ETIM for 121380 PLC´s (EC002584)
Característica Valor
Tipo de acessório elétrico (EF005722) Ficha
Tipo de acessório mecânico (EF005994) Outro
Acessório (EF013236) Sim
Peça de substituição (EF013237) Não

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf 26 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SWD4-SFL8-20 Y7-121380 121380 ES_174753.pdf 3 Mbytes SWD4-SFL8-20 Y7-121380 121380 ES_174753.pdf
