> EATON - MOELLER>Smartwire Darwin>SWD4-8MF2 116023 Y7-116023 ELECTRIC SWD Conector
ANUNCIAR
Produto anterior

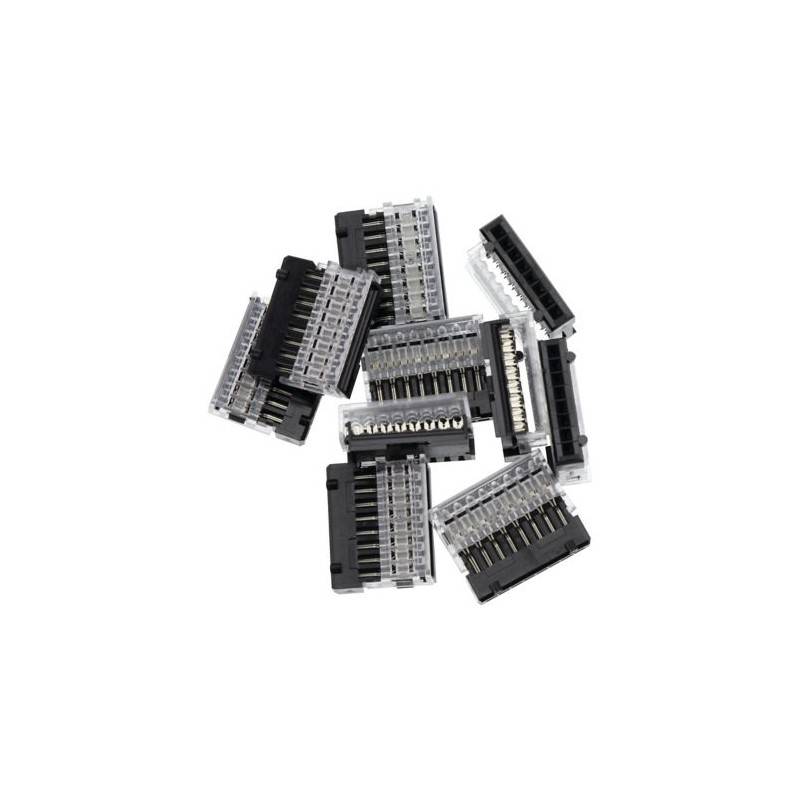

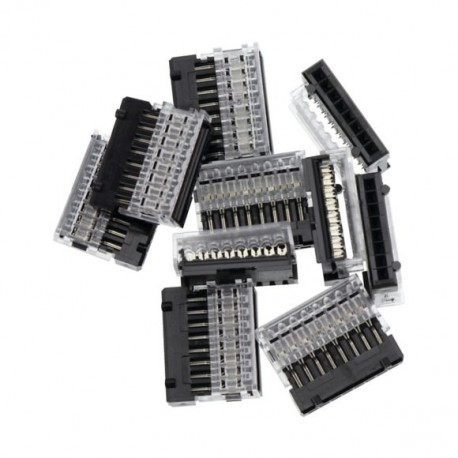

SWD4-8MF2 116023 Y7-116023 EATON ELECTRIC SWD Conector Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

SWD4-8MF2 116023 Y7-116023 EATON ELECTRIC SWD Conector

SWD4-8MF2

116023

Y7-116023

EATON-MOELLER

10

SWD - Conector

Conector SWDT; Para início e fim de cabo plano de 8 polos

Eaton SWD4 Blade terminal, SmartWire-DT, on ribbon-cable end for connecting coordinator etc.

O terminal blade SmartWire-DT de 8 polos é conectado a ambas as extremidades do cabo de fita SWD. Os seguintes componentes podem ser acoplados: Coordenadores SmartWire-DT, como easy800 SWD/SWD Gateway, módulo alimentador SWD-Power, acoplamento SWD, terminação de barramento SWD

Mais detalhes


Controladores industriais (PLC) > Acessórios para controladores

Smartwire Darwin

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $61.32
Preço unitário: $6.13
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

geralmente comprados juntos

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton SWD4 Accessory Blade terminal
Catalog Number
116023
EAN
4015081157631
Product Length/Depth
8 mm
Product Height
18 mm
Product Width
23 mm
Product Weight
0.002 kg
Certifications
UL File No.: E29184
CSA
CSA File No.: 2324643
CSA Class No.: 3211-07
UL Category Control No.: NKCR
UL
Catalog Notes
not relevant
Model Code
SWD4-8MF2

Especificações do produto

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Connection to SmartWire-DT
Yes
Air pressure
795 - 1080 hPa (operation)
Environmental conditions
Condensation: prevent with appropriate measures
Mounting position
As required
Ambient operating temperature - max
105 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
105 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Electrical accessory type
Plug
Connection type
Socket, 8-pole
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Degree of protection
IP20
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
Mechanical accessory type
Other
Functions
For connecting the ribbon cable to the gateway, power feeder module, coupling, SWD4-RC8-10 bus termination resistor
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Number of insertion cycles
200
Operating temperature - max
105 °C
Operating temperature - min
-25 °C
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
SmartWire-DT accessories
Power loss
0 W

ETIM for 116023 PLC´s (EC002584)
Característica Valor
Tipo de acessório elétrico (EF005722) Ficha
Tipo de acessório mecânico (EF005994) Outro
Acessório (EF013236) Sim
Peça de substituição (EF013237) Não

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf 26 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SWD4-8MF2 Y7-116023 116023 ES_174753.pdf 3 Mbytes SWD4-8MF2 Y7-116023 116023 ES_174753.pdf
