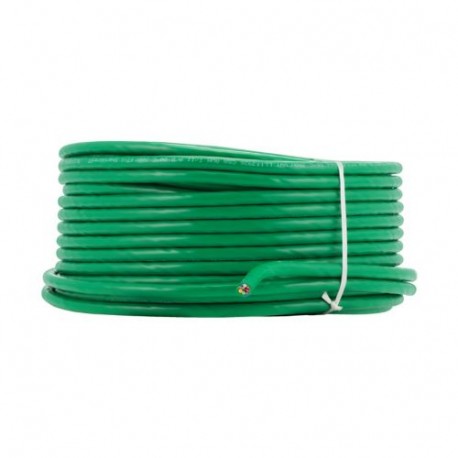

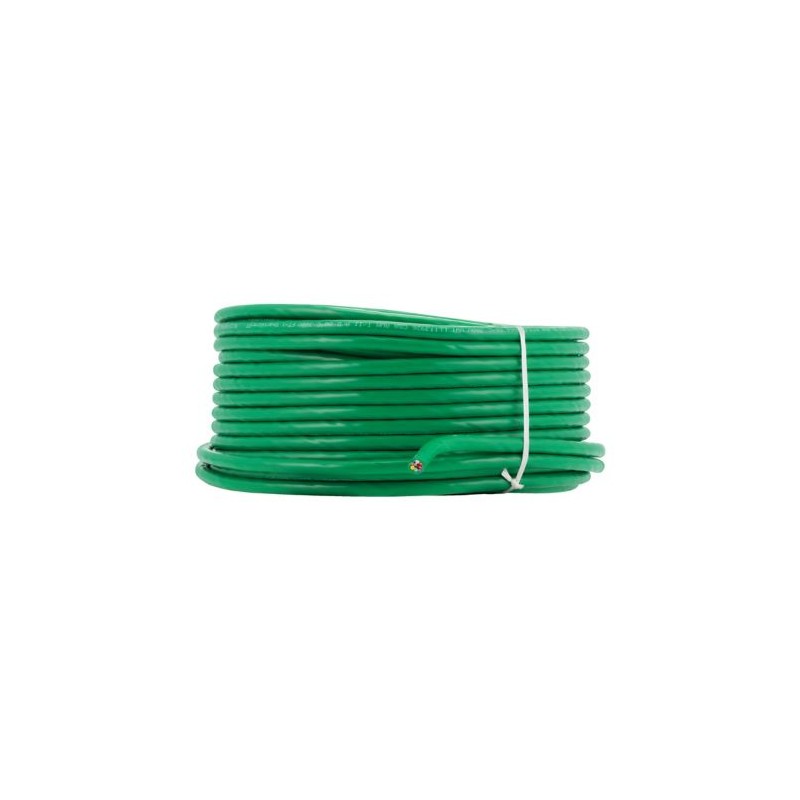

SWD4-50LR8-24 116030 Y7-116030 EATON ELECTRIC redondo Cable SWD
SWD4-50LR8-24
116030
Y7-116030
EATON-MOELLER
redondo Cable - SWD
Cabo redondo SWDT, 8 polos, 50 m
Eaton SWD4 Round cable, SmartWire-DT, 50m, 8-Pole, 8mm
Cabo redondo SmartWire-DT de 50 m, 8 polos e 8 mm de diâmetro para conexão de placas SmartWire-DT fora do painel de controle, desmontado, para conexão ao adaptador SWD4-8FRF-10 SWD e placas de circuito impresso M22-SWD-Ix.
Cabos / Condutores > Cabo de dados e comunicação (cobre)
Smartwire Darwin
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton SWD4 Accessory Round cable
Catalog Number
116030
EAN
4015081157709
Product Length/Depth
270 mm
Product Height
100 mm
Product Width
130 mm
Product Weight
4.03 kg
Certifications
CSA
UL
CSA File No.: 2324643
CSA Class No.: 3211-07
UL Category Control No.: NKCR
UL File No.: E29184
UL
CSA File No.: 2324643
CSA Class No.: 3211-07
UL Category Control No.: NKCR
UL File No.: E29184
Catalog Notes
Condensation: permissible
Model Code
SWD4-50LR8-24
Especificações do produto
Number of Poles
Eight-pole
Suitable as
Signaling cable
Features
Oil resistant (acc. EN 60811-404)
Oil resistant (acc. IEC 60811-404)
UV resistant
Oil resistant (acc. IEC 60811-404)
UV resistant
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Cable type
Other
Conductor category
Class 2 = stranded
Cable category
Other
Reaction-to-fire class (EN 13501-6)
None
Specification material outer sheath
Polypropylene
Stranding
Bundle
Stranding element
Pairs
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Nominal cross section (conductor)
0.5 mm²
Number of cores
8
Number of stranding elements
4
NVP value
66.5 %
Outer diameter - approximate
8.2 mm
Permitted bending radius, moving application with forced guidance - min
120 mm
Permitted bending radius, moving application with free movement - min
120 mm
Permitted bending radius, stationary application/permanent installation - min
120 mm
Permitted temperature of outer cable (assembled) without vibration - max
80 °C
Permitted temperature of outer cable (assembled) without vibration - min
-20 °C
Permitted temperature of outer cable (assembling/handling) - max
80 °C
Permitted temperature of outer cable (assembling/handling) - min
-10 °C
Circuit integrity
None
Approved type of underground installation
Other
Material reinforcement
Other
Armouring/reinforcement
None
Cable geometry
Round
Conductor material
Other
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
SmartWire-DT accessories
Conductor diameter
1.5 mm
AWG-size
20
Cable length
50 m
Conductor surface
Bare
Core identification
Colour
Core insulation material
Other
Euro class acidity (EN 13501-6)
None
Euro class flaming droplets/particles (EN 13501-6)
None
Flame retardant
In accordance with EN 60332-1-2
Outer sheath color
Green
Outer sheath material
Polyvinyl chloride (PVC)
Protective sheath material
Other
Screen over stranding
None
Screen over stranding element
Foil
Smoke development class (EN 13501-6)
None
Functions
For connection to SWD4-8FRF-10 SWD cable adapter and M22-SWD-Ix series printed circuit boards
Nominal voltage U
24 V
Characteristic impedance
100 Ω
Rolled out cable width
8.2 mm
Number of sheath layers
0
Weight per kilometer
80.6 kg/km
| Característica | Valor |
|---|---|
| Cable type (EF000081) | Other |
| Duplex (EF023003) | false |
| Conductor material (EF001622) | Other |
| Conductor surface (EF010804) | Bare |
| Diameter conductor (EF001621) | 1.5 mm |
| Nominal cross section conductor (EF000060) | 0.5 mm² |
| AWG size (EF011789) | 20 |
| Conductor category (EF001632) | Class 2 = stranded |
| Number of cores (EF001792) | 8 |
| Number of stranding elements (EF001688) | 4 |
| Stranding element (EF001617) | Pairs |
| Material core insulation (EF000061) | Other |
| Specification core insulation (EF011805) | Other |
| Core identification according to HD 308 S2 (EF013766) | false |
| Core identification (EF000067) | Colour |
| Screen over stranding element (EF001623) | Foil |
| Stranding (EF003802) | Bundle |
| Screen over stranding (EF001624) | None |
| Longitudinal water blocking cable (EF011011) | false |
| Radial water blocking cable (EF011012) | false |
| Suitable for underground installation (EF003689) | false |
| Approved type of underground installation (EF015176) | Other |
| Protective sheath (EF001691) | Other |
| Material outer sheath (EF001625) | Polyvinyl chloride (PVC) |
| Specification material outer sheath (EF011806) | Polypropylene (PP) |
| Colour outer sheath (EF001618) | Green |
| Number of sheath layers (EF016997) | 0 |
| Armouring/reinforcement (EF001683) | None |
| Material armouring (EF013440) | Other |
| Cable geometry (EF013532) | Round |
| Flame retardant according to IEC 60332-1-2 (EF016492) | false |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) (EF016493) | false |
| Flame retardant according to IEC 60332-3-22 (Cat A) (EF016494) | false |
| Flame retardant according to IEC 60332-3-23 (Cat B) (EF016495) | false |
| Flame retardant according to IEC 60332-3-24 (Cat C) (EF016496) | false |
| Flame retardant according to IEC 60332-3-25 (Cat D) (EF016497) | false |
| Low smoke according to EN IEC 61034-2 (EF003799) | false |
| Halogen free according to EN IEC 60754-1 (EF016498) | false |
| Halogen free according to EN IEC 60754-2 (EF003792) | false |
| Halogen free according to EN IEC 60754-3 (EF016500) | false |
| Reaction-to-fire according to EN 13501-6: Class (EF011577) | None |
| Reaction-to-fire according to EN 13501-6: Smoke production (EF011578) | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles (EF011579) | None |
| Reaction-to-fire according to EN 13501-6: Acidity (EF011580) | None |
| Circuit integrity according to IEC 60331-23 (EF016619) | false |
| Oil resistant according to EN IEC 60811-404 (EF009770) | true |
| Outer diameter approx. (EF003921) | 8.2 mm |
| Min. permitted bending radius, moving application with forced guidance (EF011801) | 120 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 120 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 120 mm |
| Permitted cable outer temperature during assembling/handling (EF001685) | -10 °C |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -20 °C |
| Category (EF001619) | Other |
| NVP value (EF008387) | 66.5 % |
| Certified for shipboard application (EF013772) | false |
| Segregation class according to EN 50174-2 (EF013986) | |
| Suitable as telephone cable (EF013768) | false |
| Suitable as computer data cable (EF013769) | false |
| Suitable as signalling cable (EF013770) | true |
| Suitable for use as security alarm cable (EF017089) | false |
| Drain wire (EF001029) | false |
| With rip cord (EF017088) | false |
| Cable width approx. (EF003796) | 8.2 mm |
| Cable height approx. (EF003797) | 100 mm |
| Weight (EF000167) | |
| Characteristic impedance (EF001628) | 100 Ohm |
| Max. tensile strength during installation (EF013801) | None kN |
| Nominal voltage U (EF001615) | 24 V |
| With rodent protection (EF007960) | false |
| Circuit integrity according to DIN 4102-12 (EFDE0051) | |
| Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) | false |
| Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) | false |
| Cable type according to BS 4737-3.30 (EFUK0022) | |
| Rip cord colour according to BS 4737-3.30 (EFUK0023) | |
| Compliant with BT (British Telecom) specification (EFUK0024) |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf | 26 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| SWD4-50LR8-24 Y7-116030 116030 ES_174753.pdf | 3 Mbytes |
|
