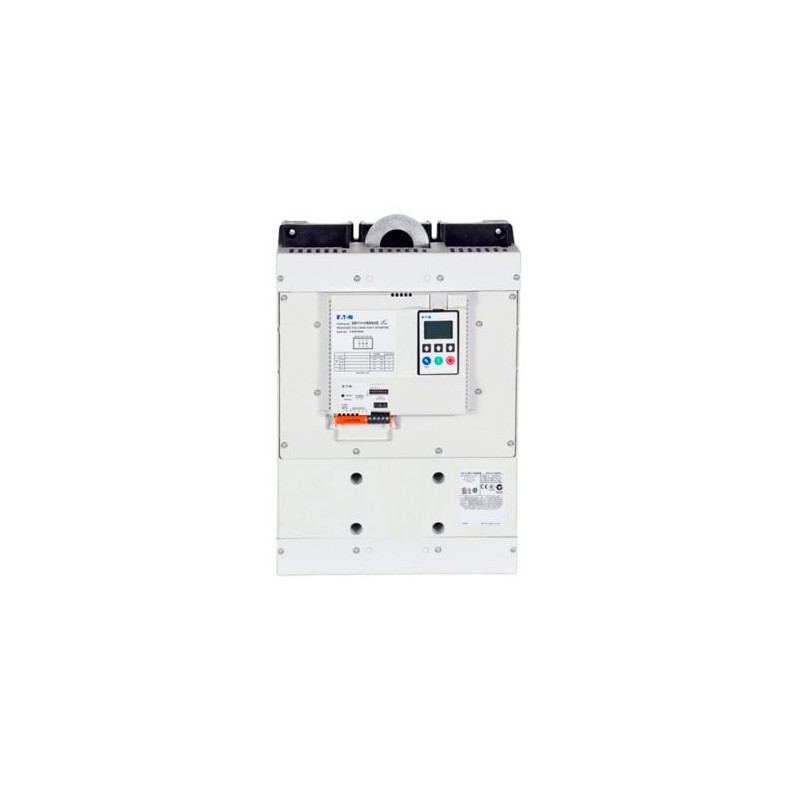

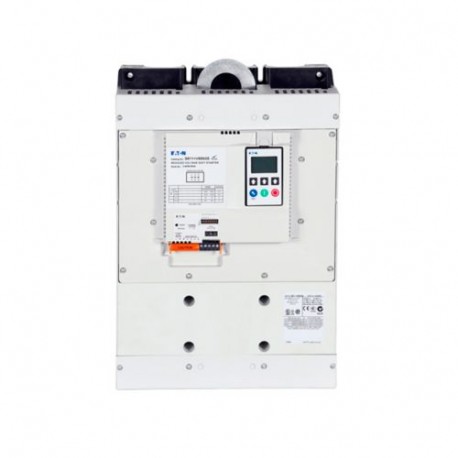

S811+V65P3S 169003 Y7-169003 EATON ELECTRIC Soft starter, 3p, 650A, Ue 200-600VAC Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

S811+V65P3S 169003 Y7-169003 EATON ELECTRIC Soft starter, 3p, 650A, Ue 200-600VAC

S811+V65P3S

169003

Y7-169003

EATON-MOELLER

Soft starter, 3p, 650A, Ue= 200-600VAC

S811+ Alto desempenho Soft Starter 3-Pole 650 A 200-600V AC

Eaton S811 Soft starter, 650 A, 200 - 600 V AC, Us= 24 V DC, with control unit and pump algorithm, Frame size V

Partida suave, Descrição: Com contatos de bypass internos, Função: Partida suave para cargas trifásicas, com unidade de controle e algoritmo de bomba, Tensão de alimentação (50/60 Hz): ULN= 200 - 600 V AC, Tensão de alimentação: Us= 24 V DC, Tensão de controle: UC= 24 V DC, Potência nominal do motor atribuída (padrão, conexão em linha) a 400 V, 50 Hz: P= 315 kW, a 460 V, 60 Hz: P= 500 HP, Corrente nominal de operação AC-53: Ie= 650 A, Corrente nominal de operação AC-53, In-Delta: Ie= 1125 A, Classe de partida: CLASSE 10 (substituição do triângulo estrelado), CLASSE 20 (serviço de partida pesada 3 x Ie por 45 s), CLASSE 30 (6 x Ie por 30 s), Tensão nominal de operação: Ue= 200 V, 230 V, 400 V, 480 V, 600 V, Conexão SmartWire-DT: não, Tamanho do quadro: V, Informações sobre pedidos: Os blocos de terminais são necessários para terminais para tamanhos de quadro T, U e V -> Acessórios, Normas: IEC/EN 60947-4-2, UL 508, CSA22.2-14-1995, GB14048

Mais detalhes


Aparelhos elétricos de baixa tensão > Acionador de partida progressivo

Partidas Soft-Soft de Alto Desempenho

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $9,271.78
Preço unitário: $9,271.78
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton S811 Soft starter
Catalog Number
169003
EAN
4015081654970
Product Length/Depth
187.8 mm
Product Height
420.8 mm
Product Width
280.6 mm
Product Weight
41.4 kg
Compliances
CE Marked
Certifications
CSA file No. 3211-06
IEC 60947-4-2
UL Recognized
EN 60947-4-2
UL Listed
CSA Certified for Elevator Duty
UL 508
CE
CSA-C22.2 No. 14
UL
CSA
C-Tick
CSA Class No.: 3211-06
CCC
IEC/EN 60947-4-2
CSA22.2-14-1995
GB14048
UL Category Control No.: NMFT
UL File No.: E202571
CSA File No.: LR 353
Model Code
S811+V65P3S

Especificações do produto

Used with
Three-phase motors
Amperage Rating
650A
Display material
LCD
AC current - max
240 Vac
DC current - max
120 Vdc
Number Of Poles
Three-pole
Type
Soft starter for three-phase loads, with control unit and pump algorithm
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Internal bypass
Display
Internal bypass contacts
Motor overload protection
Frequency rating
47-63 Hz
Pollution degree
3
Class
Adjustable
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Damp heat, cyclic, to IEC 60068-2-30
Connection to SmartWire-DT
No
Power supply
24 V
Rated impulse withstand voltage (Uimp)
4000 V
Frame size
V
Altitude
Above 2000 m with 0.5 % derating per 100 m
Max. 2000 m
Options
Level/edge sense
Inline or inside-the-delta wiring configuration
Pump control and extended ramp
Premium
600V rated
Number of inputs
1 (current input)
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-50 °C
Assigned motor power at 200/208 V, 60 Hz, 3-phase
200 HP
Assigned motor power at 220/230 V, 60 Hz, 3-phase
250 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
500 HP
Assigned motor power at 600 V, 60 Hz, 3-phase
600 HP
Assigned motor power in-delta at 220/230 V, 60 Hz
450 HP
Assigned motor power in-delta at 460/480 V, 60 Hz
850 HP
Assigned motor power in-delta at 575/600 V, 60 Hz
1100 HP
Equipment heat dissipation, current-dependent Pvid
25 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Mains voltage - max
600 V
Mains voltage - min
200 V
Operating temperature - max
50 °C
Communication
Modbus RTU
Configuration
Inline (default) or inside the delta
NEMA rating
NEMA 0
Output voltage
120 V AC/DC (relay outputs)
Number of outputs
2 Relay Outputs (programmable)
Screwdriver size
0.6 x 3.5 mm, Terminal screws, Control circuit cables
Voltage type
DC
Rated operational voltage (Ue) - min
200 V
Rated power three-phase motor, inline, at 230 V
200 kW
Rated power three-phase motor, inline, at 400 V
315 kW
Rated power three-phase motor, inside delta, at 230 V
200 kW
Rated power three-phase motor, inside delta, at 400 V
630 kW
Static heat dissipation, non-current-dependent Pvs
25 W
Voltage rating - max
600 V
Application
Protection
Finger and back-of-hand proof, Protection against direct contact
Size
NEMA 0
Mounting position
As required
Input current
4 - 20 mA (Analog inputs)
Operating voltage
200-600 V
Wire size
#2/0 AWG-500 kcmil
Drop-out voltage
0 - 3 V, DC operated
Overvoltage category
II
Module interface
Digital interface module
Degree of protection
IP00
NEMA Other
Current consumption
10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
1400 mA, Control circuit, Regulator supply
150 mA, Control circuit, Digital inputs, External 24 V
100 mA, Control circuit, Digital inputs, External 24 V (no-load)
Functions
Min. ramp time 1 s - fast switching (semiconductor contactor)
Underload monitoring
Current limitation
Suppression of closing transients
Single direction
Suppression of DC components for motors
Overload monitoring
Potential isolation between power and control sections
Soft start function
Delay time
0 - 120 s, Soft start function, Ramp times
Overload cycle
AC-53a: 4.0 - 32: 99 - 3
Drop-out time
100 ms, DC operated
Pick-up voltage
21.6 - 26.4 V DC
Radio interference class
Class A (EN 55011)
Fault memory
10 Faults
Pick-up time
100 ms at DC
Interfaces
Modbus RTU (built-in)
Kickstart
100% (Kickstart voltage)
Max. 2000 ms (Kickstart Duration)
Rated control voltage (Uc)
24 V DC
24 V DC (-10 %/+10 %)
Supply frequency
50/60 Hz, fLN, Main circuit
Terminal capacity (stranded)
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
2 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
Operating temperature - min
-30 °C
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
24 V
Rated control supply voltage (Us) at DC - min
24 V
Rated insulation voltage (Ui)
660 V
Rated operational current (Ie) at AC-11
3 A
Rated operational current (Ie) at AC-53
650 A
Rated operational current (Ie) at AC-53, in-delta
1125 A
Rated operational current for specified heat dissipation (In)
650 A
Rated operational power at 220/230 V, 50 Hz
200 kW
Rated operational power at 400 V, 50 Hz
315 kW
Rated operational power at 500 V, 50 Hz
450 kW
Rated operational power in-delta at 220/230 V, 50 Hz
200 kW
Rated operational power in-delta at 400 V, 50 Hz
630 kW
Rated operational power in-delta at 500 V, 50 Hz
450 kW
Rated operational voltage (Ue) - max
600 V
Ramp/run-up time
360 s
Shock resistance
15 g, Mechanical
Suitable for
Branch circuits, not as BCPD, (UL/CSA)
Tightening torque
0.4 Nm, Screw terminals, Control circuit cables
Short-circuit protection rating
NZMN4-ME875, Type “1” coordination, Main conducting paths
Start voltage
Max. 85 %, Soft start function, Start voltage = turn-off voltage
Startup class
CLASS 20 (heavy starting duty 3 x Iₑ for 45 s)
CLASS 10 (star-delta replacement)
CLASS 30 (6 x Iₑ for 30 s)
Terminal capacity (flexible with ferrule)
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
2 x (120 - 240) mm², Main cables
4 x (70 - 240) mm², Main cables
6 x (120 - 240) mm², Main cables
Terminal capacity (solid)
4 x (70 - 240) mm², Main cables
2 x (120 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
6 x (120 - 240) mm², Main cables
2 x (1 - 2.5) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
4 x (4 - 500 kcmil), Main cables
6 x (4 - 500 kcmil), Main cables
2 x (14 - 12), Control circuit cables
1 x (14 - 12), Control circuit cables
2 x (4 - 500 kcmil), Main cables

ETIM for 169003 Componentes industriais para Baixa Tensão (EC000640)
Característica Valor
Corrente nominal de operação Ie a 40° C Tu (EF007039) 650 A
Tensão nominal de operação Ue (EF002418) 200 V
Motor trifásico de potência nominal, em linha, a 230 V (EF007053) 200 kW
Motor trifásico de potência nominal, em linha, a 400 V (EF007054) 315 kW
Motor trifásico de potência nominal, triângulo interno, a 230 V (EF007055) 200 kW
Motor trifásico com potência nominal, triângulo interno, a 400 V (EF007056) 630 kW
Função (EF000030) Direção única
Bypass interno (EF009214) Sim
Com display (EF000458) Sim
Controlo de torque (EF009215) Não
Temperatura ambiente avaliada sem redução (EF007074) 50 °C
Tensão de alimentação de corrente nominal de 50 Hz AC (EF003978) 0 V
Tensão de alimentação de corrente nominal de 60 Hz CA (EF003979) 0 V
Tensão de alimentação de corrente nominal DC (EF003980) 24 V
Tipo de tensão para atuação (EF008242) DC
Proteção integrada contra sobrecarga do motor (EF007297) Sim
Classe de engate/gatilho (EF006668) Ajustável
Grau de proteção (IP) (EF005474) IP00
Grau de proteção (NEMA) (EF011959) Outro

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
S811+V65P3S Y7-169003 169003 ES_168994.pdf 883 Kbytes S811+V65P3S Y7-169003 169003 ES_168994.pdf

Avaliações: (0) ▲

Não há comentários do produto ainda.

Adicionar avaliação
Adicionar avaliação
ocultar formulário
Avaliação:
Nome:
Email:
Título:
Opinión:
Você recomendaria esse produto para comprar?
  Captcha
  Adicionar avaliação

Últimas opiniões dos nossos clientes

Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
