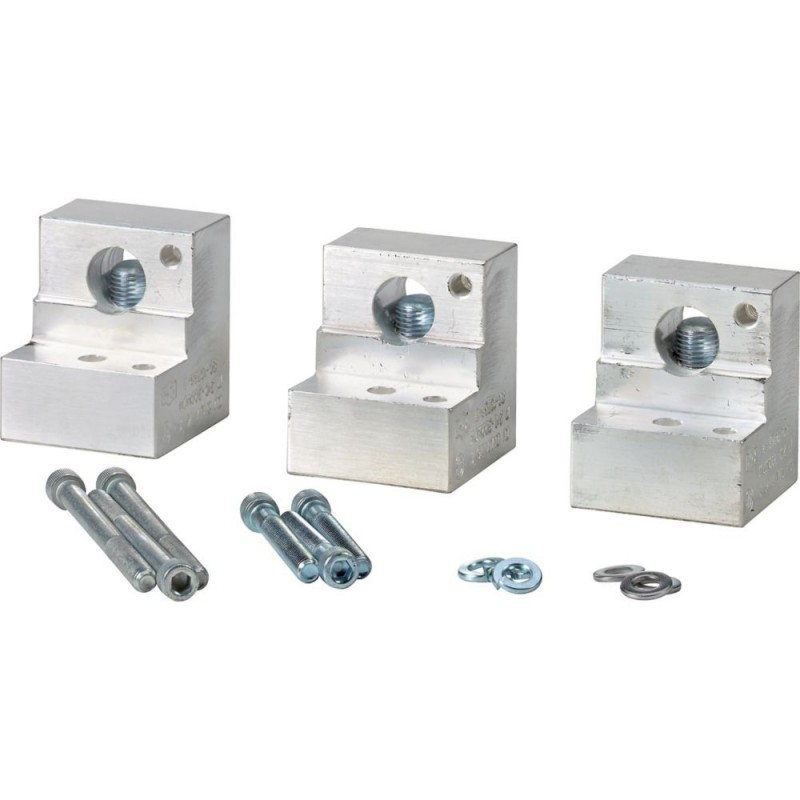

EATON - MOELLER EML25 127664 Y7-127664 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

EML25 127664 Y7-127664 EATON ELECTRIC terminal de conexão de acessórios S811

Referência: EML25

Código: 127664

Número de catálogo: Y7-127664

Fabricante: EATON - MOELLER

Descrição:

terminal de conexão de acessórios S811
Bloco terminal; 1 x 70-150 mm²; Para tamanhos S811+ T & U
Eaton EML Terminal block, 1 x 2/0-300 MCM, 1 x 70-150 mm², For use with: S801+, S811+, frame sizes T and U
Blocos de terminais para partidas suaves S801+ e S811+, para tamanhos S8x1+T/U, 1x150mm²

Categorias:

  • Aparelhos elétricos de baixa tensão > Expansão da conexão de fase
  • EATON - MOELLER > Partidas Soft-Soft de Alto Desempenho

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 204,06 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton S811 Accessory Terminal block
Catalog Number
127664
EAN
4015081250721
Product Length/Depth
55 mm
Product Height
46 mm
Product Width
47 mm
Product Weight
1.836 kg
Certifications
CSA
CSA File No.: LR 353
CSA-C22.2 No. 65
UL508
UL
UL File No.: E202571
UL Category Control No.: NMFT
CSA Class No.: 6223-02
Catalog Notes
1 set required for each connection side.
Model Code
EML25

Especificações do produto

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Suitable for number of poles
3
Terminal capacity
1 x 70-150 mm²
1 x 2/0-300 MCM
Terminal capacity (AWG)
1 x 2/0-300 MCM

ETIM for 127664 Componentes industriais para Baixa Tensão (EC002019)

Nome da característicaAdaptado ao número de polos (EF001589)
Valor da característica3
