Ver maior

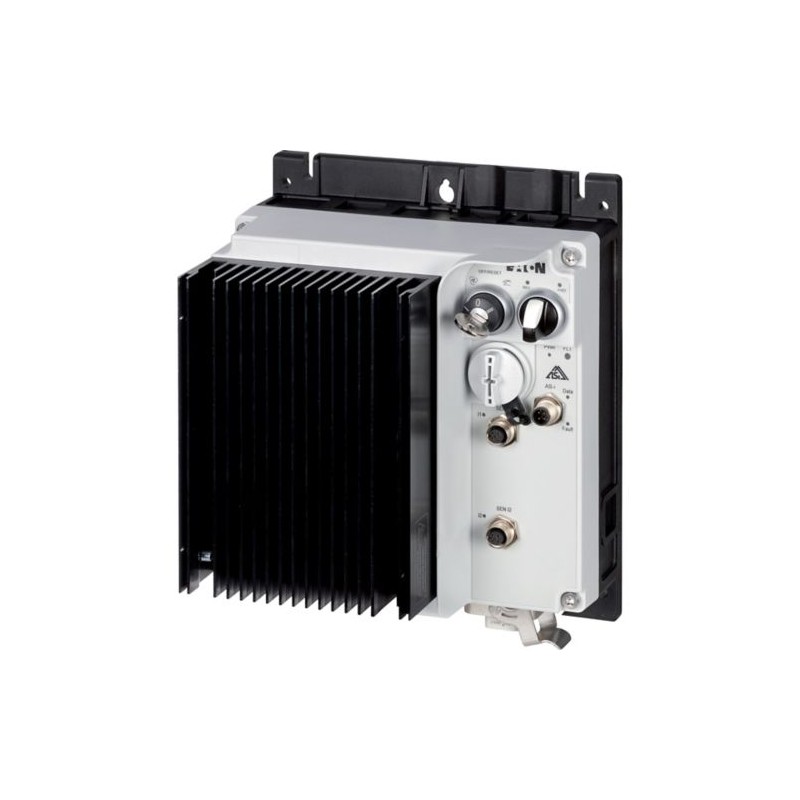

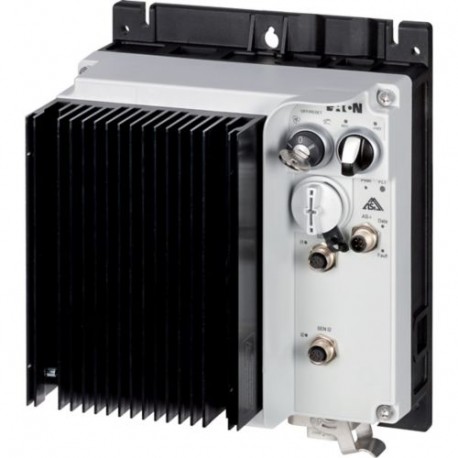

RASP5-2400A31-4120000S1 198728 Y7-198728 EATON ELECTRIC Conversor de frequência 2.4 A 400 V 50 Hz 0.75 kW S-..
RASP5-2400A31-4120000S1
198728
Y7-198728
EATON-MOELLER
Conversor de frequência 2.4 A 400 V 50 Hz 0.75 kW S-7.4 Para 31
Eaton Moeller® series Rapid Link - Speed controllers, 2.4 A, 0.75 kW, Sensor input 4, AS-Interface®, S-7.4 for 31 modules, HAN Q4/2
Controladores de velocidade, 2.4 A, 0.75 kW, Sensor Input 4, AS-Interface®, S-7.4 para 31 módulos, HAN Q4/2
Aparelhos elétricos de baixa tensão > Conversor de frequência inferior a 1 kV
Acionadores Rapid Link
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series Rapid Link Speed controller
Catalog Number
198728
EAN
4015081967865
Product Length/Depth
157 mm
Product Height
270 mm
Product Width
220 mm
Product Weight
3.41 kg
Certifications
CE
RoHS
IEC/EN 61800-5-1
UL approval
UL 61800-5-1
RoHS
IEC/EN 61800-5-1
UL approval
UL 61800-5-1
Catalog Notes
Model Code
RASP5-2400A31-4120000S1
Especificações do produto
Features
Diagnostics and reset on device and via AS-Interface
Parameterization: Fieldbus
Parameterization: drivesConnect
Parameterization: Keypad
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: drivesConnect
Parameterization: Keypad
Parameterization: drivesConnect mobile (App)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Internal DC link
Key switch position AUTO
Key switch position HAND
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Selector switch (Positions: REV - OFF - FWD)
PTC thermistor monitoring
Key switch position OFF/RESET
IGBT inverter
Control unit
PC connection
Thermo-click with safe isolation
Four fixed speeds
Key switch position AUTO
Key switch position HAND
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Selector switch (Positions: REV - OFF - FWD)
PTC thermistor monitoring
Key switch position OFF/RESET
IGBT inverter
Control unit
PC connection
Thermo-click with safe isolation
Four fixed speeds
Climatic proofing
In accordance with IEC/EN 50178
< 95 %, no condensation
< 95 %, no condensation
Operating mode
U/f control
Synchronous reluctance motors
Sensorless vector control (SLV)
BLDC motors
PM and LSPM motors
Synchronous reluctance motors
Sensorless vector control (SLV)
BLDC motors
PM and LSPM motors
Rated impulse withstand voltage (Uimp)
2000 V
Altitude
Above 1000 m with 1 % performance reduction per 100 m
Max. 2000 m
Max. 2000 m
Application in domestic and commercial area permitted
Yes
Mains switch-on frequency
Maximum of one time every 60 seconds
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-10 °C
Mains voltage - max
480 V
Output voltage - max
500 V
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Application in industrial area permitted
Yes
Mains voltage tolerance
380 - 480 V (-10 %/+10 %, at 50/60 Hz)
Product category
Speed controller
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Mounting position
Vertical
Rated conditional short-circuit current (Iq)
10 kA
Overvoltage category
III
Communication interface
AS-Interface
Connection
Plug type: HAN Q4/2
Converter type
U converter
Degree of protection
NEMA 12
IP65
IP65
Assigned motor power at 115/120 V, 60 Hz, 1-phase
1 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
1 HP
Assigned motor power at 460/480 V, 60 Hz
1 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
1 HP
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Input current ILN at 150% overload
2.5 A
Mains current distortion
120 %
Protocol
ASI
AS-Interface profile cable: S-7.4 for 31 modules
AS-Interface profile cable: S-7.4 for 31 modules
Overload current
At 40 °C
For 60 s every 600 s
For 60 s every 600 s
Overload current IL at 150% overload
3.6 A
Rated frequency - max
66 Hz
Rated frequency - min
45 Hz
Rated operational power at 380/400 V, 50 Hz, 3-phase
0.75 kW
System configuration type
Center-point earthed star network (TN-S network)
AC voltage
Phase-earthed AC supply systems are not permitted.
AC voltage
Phase-earthed AC supply systems are not permitted.
Braking current
≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Current limitation
Adjustable, motor, main circuit
0.2 - 2.4 A, motor, main circuit
0.2 - 2.4 A, motor, main circuit
Braking torque
Adjustable to 100 % (I/Ie), DC - Main circuit
Cable length
C2 ≤ 5 m, maximum motor cable length
C1 ≤ 1 m, maximum motor cable length
C3 ≤ 25 m, maximum motor cable length
C1 ≤ 1 m, maximum motor cable length
C3 ≤ 25 m, maximum motor cable length
Delay time
< 10 ms, On-delay
< 10 ms, Off-delay
< 10 ms, Off-delay
Number of inputs (analog)
0
Number of inputs (digital)
4
Radio interference class
C1: for conducted emissions only
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Number of outputs (digital)
0
Starting current - max
200 %, IH, max. starting current (High Overload), For 2 seconds every 20 seconds, Power section
Number of phases (input)
3
Number of phases (output)
3
Power consumption
32 W
Interfaces
Number of slave addresses: 31 (AS-Interface®)
Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA
Specification: S-7.4 (AS-Interface®)
Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA
Specification: S-7.4 (AS-Interface®)
Efficiency
97 % (η)
Rated control voltage (Uc)
24 V DC (-15 %/+20 %, external via AS-Interface® plug)
Supply frequency
50/60 Hz
Leakage current at ground IPE - max
3.5 mA
Mains voltage - min
380 V
Nominal output current I2N
2.4 A
Number of HW-interfaces (industrial ethernet)
0
Number of HW-interfaces (other)
1
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Number of interfaces (PROFINET)
0
Number of outputs (analog)
0
Output at linear load at rated output voltage - max
0.75 kW
Output at quadratic load at rated output voltage - max
0.75 kW
Output frequency - max
500 Hz
Output frequency - min
0 Hz
Short-circuit protection (external output circuits)
Type 1 coordination via the power bus' feeder unit, Main circuit
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft
Switching frequency
8 kHz, 4 - 32 kHz adjustable, fPWM, Power section, Main circuit
Rated operational current (Ie)
2.4 A at 150% overload (at an operating frequency of 8 kHz and an ambient air temperature of +40 °C)
Rated operational voltage
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
Vibration
Resistance: 10 - 150 Hz, Oscillation frequency
Resistance: 57 Hz, Amplitude transition frequency on acceleration
Resistance: 6 Hz, Amplitude 0.15 mm
Resistance: According to IEC/EN 60068-2-6
Resistance: 57 Hz, Amplitude transition frequency on acceleration
Resistance: 6 Hz, Amplitude 0.15 mm
Resistance: According to IEC/EN 60068-2-6
Heat dissipation at current/speed
27.5 W at 50% current and 90% speed
31.8 W at 100% current and 90% speed
33.5 W at 25% current and 50% speed
34.6 W at 50% current and 50% speed
35.1 W at 25% current and 0% speed
36.6 W at 100% current and 50% speed
36.8 W at 50% current and 0% speed
40.7 W at 100% current and 0% speed
31.8 W at 100% current and 90% speed
33.5 W at 25% current and 50% speed
34.6 W at 50% current and 50% speed
35.1 W at 25% current and 0% speed
36.6 W at 100% current and 50% speed
36.8 W at 50% current and 0% speed
40.7 W at 100% current and 0% speed
| Característica | Valor |
|---|---|
| Tensão de rede (intervalo) (EF006780) | 380 V |
| Frequência da rede (standard) (EF006783) | 50/60 Hz |
| Número de fases de entrada (EF007117) | 3 |
| Número de fases de lançamento (EF006998) | 3 |
| Frequência de saída max. (EF007350) | 500 Hz |
| Máx. voltagem de saída (EF009560) | 500 V |
| Corrente nominal de saída I2N (EF009561) | 2.4 A |
| Máx. saída com carga quadrática na tensão de saída nominal (EF007366) | 0.75 kW |
| Máx. saída com carga linear à tensão de saída nominal (EF007364) | 0.75 kW |
| Consumo (potência em VA) (EF000346) | 32 W |
| Tolerância de frequência relativa da rede simétrica (EF007454) | 10 % |
| Tolerância de tensão relativa da rede simétrica (EF007453) | 10 % |
| Número de saídas analógicas (EF001995) | 0 |
| Número de entradas analógicas (EF001994) | 0 |
| Número de saídas digitais (EF001993) | 0 |
| Número de entradas digitais (EF001992) | 4 |
| Com unidade de controlo (EF001538) | Sim |
| Aplicação em área industrial permitida (EF007294) | Sim |
| Aplicação na área doméstica e comercial permitida (EF007295) | Sim |
| Suporta o protocolo TCP/IP (EF003050) | Não |
| Suporta o protocolo PROFIBUS (EF003052) | Não |
| Suporta o protocolo CAN (EF003053) | Não |
| Suporta o protocolo INTERBUS (EF003054) | Não |
| Suporta o protocolo ASI (EF003051) | Sim |
| Suporta o protocolo KNX (EF003055) | Não |
| Suporta o protocolo MODBUS (EF003057) | Não |
| Suporta o protocolo Data-Highway (EF003058) | Não |
| Suporta o protocolo DeviceNet (EF003059) | Não |
| Suporta o protocolo SUCONET (EF003060) | Não |
| Suporta protocolo LON (EF003017) | Não |
| Suporta o protocolo PROFINET IO (EF007525) | Não |
| Suporta o protocolo PROFINET CBA (EF007524) | Não |
| Suporta o protocolo SERCOS (EF006657) | Não |
| Suporta o protocolo o Foundation Fieldbus (EF007522) | Não |
| Suporta o protocolo Ethernet/IP (EF007521) | Não |
| Protocolo de suporte à segurança da interface AS no trabalho (EF007519) | Não |
| Suporta o protocolo DeviceNet Safety (EF007520) | Não |
| Suporta o protocolo INTERBUS-Safety (EF006662) | Não |
| Suporta o protocolo PROFIsafe (EF007526) | Não |
| Suporta o protocolo SafetyBUS p (EF007527) | Não |
| Suporta o protocolo BACnet (EF011944) | Não |
| Suporta o protocolo outros sistemas de barramento (EF003062) | Não |
| Número de interfaces industriais HW Ethernet industrial (EF003020) | 0 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS-232 (EF003021) | 0 |
| Número de interfaces HW RS-422 (EF003022) | 0 |
| Número de interfaces HW RS-485 (EF003023) | 1 |
| Número de interfaces HW de série TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW paralelas (EF003026) | 0 |
| Número de interfaces HW outras (EF003027) | 1 |
| Com interface ótica (EF003028) | Não |
| Com conexão ao PC (EF006107) | Sim |
| Resistência à rutura integrada (EF007293) | Não |
| Possível operação em 4 quadrantes (EF006803) | Não |
| Tipo de conversor (EF006978) | Conversor U |
| Grau de proteção (IP) (EF005474) | IP65 |
| Grau de proteção (NEMA) (EF011959) | 12 |
| Altura (EF000040) | 270 mm |
| Largura (EF000008) | 220 mm |
| Profundidade (EF000049) | 157 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
