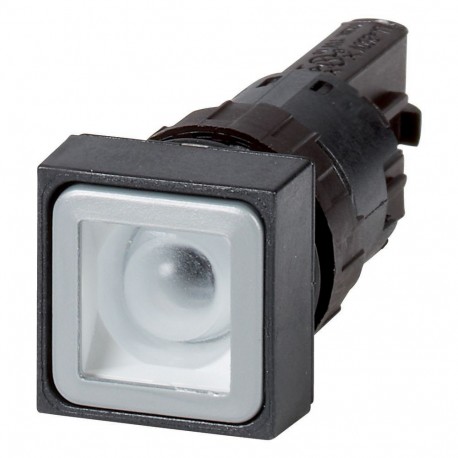

Q18DR-X 093625 Y7-93625 EATON ELECTRIC botão de travamento sem Indicator

Referência: Q18DR-X

Código: 093625

Número de catálogo: Y7-93625

Fabricante: EATON - MOELLER

Descrição:

botão de travamento sem Indicator
Botão de pressão de descarga 16 mm 18x18 mm Intertravamento sem placa de botão
Eaton Moeller® series RMQ16 Pushbutton, without button plate, maintained Q18DR-X
Botão de pressão, Campo de produtos: RMQ16, Unidade única, Design: Plano, mantido, Placa de botão: Sem placa de botão, Grau de proteção: IP65, sem moldura, Conexão ao SmartWire-DT: não, Dimensões frontais: 18 x 18

Categorias:

  • Aparelhos elétricos de baixa tensão > Elemento frontal para botão de pressão
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Solicite um orçamento e verificaremos a disponibilidade das unidades. Caso não estejam disponíveis, um dos nossos técnicos procurará uma solução alternativa.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series RMQ16 Pushbutton
Catalog Number
093625
EAN
4015080936251
Product Length/Depth
50 mm
Product Height
18 mm
Product Width
18 mm
Product Weight
0.007 kg
Certifications
IEC/EN 60947
IEC/EN 60947-5
CSA
VDE 0660
UL 508
CSA File No.: 46552
CE
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL File No.: E29184
Model Code
Q18DR-X

Especificações do produto

Type
Pushbutton actuator
Actuator color
Without button plate
Actuator function
Maintained
Switching function latching
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Operating frequency
1800 Operations/h
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
No
Actuating force
4 N
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient operating temperature (enclosed) - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of command positions
1
Opening diameter
16 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Bezel color
Black
Shock resistance
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Bezel material
Plastic
Terminal capacity
0.5 - 1.0 mm²
Design
Flat
Mounting position
As required
Terminal size
2.8 x 0.8 mm to DIN 46244, Blade terminal
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Degree of protection
IP65
NEMA 1
Degree of protection (front side)
IP65
NEMA 1
Front element type
Flat
Lens type
Square
Lifespan, mechanical
3,000,000 Operations
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
RMQ16
Size
Front dimensions: 18 x 18 mm

ETIM for 093625 Componentes industriais para Baixa Tensão (EC000221)

Nome da característicaCor do botão (EF000190)
Valor da característicaSem teclado
Nome da característicaNúmero de posições de comando (EF001372)
Valor da característica1
Nome da característicaForma de lente (EF006253)
Valor da característicaQuadrado
Nome da característicaDiâmetro do furo (intervalo) (EF000079)
Valor da característica16 mm
Nome da característicaLargura da abertura (EF004565)
Valor da característica0 mm
Nome da característicaAltura da abertura (EF004778)
Valor da característica0 mm
Nome da característicaTipo de botão (EF001546)
Valor da característicaPlano
Nome da característicaAdequado para iluminação (EF001142)
Valor da característicaNão
Nome da característicaCom difusor de proteção (EF005500)
Valor da característicaNão
Nome da característicaEtiquetado (EF001537)
Valor da característicaNão
Nome da característicaFunção de comutação de encaixe (EF007447)
Valor da característicaSim
Nome da característicaRetorno por mola/tátil (EF001407)
Valor da característicaNão
Nome da característicaCom anel frontal (EF006014)
Valor da característicaSim
Nome da característicaMaterial do anel frontal (EF005972)
Valor da característicaPlástico
Nome da característicaCor do anel frontal (EF002429)
Valor da característicaPreto
Nome da característicaGrau de proteção (IP), frente (EF003118)
Valor da característicaIP65
Nome da característicaGrau de proteção (NEMA), parte frontal (EF011961)
Valor da característica1
