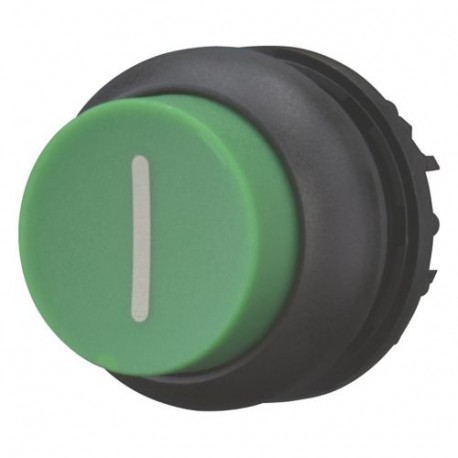

M22S-DRH-G-X1 216678 Y7-216678 EATON ELECTRIC M22S-DRH-G-X1Q botão de saída, Interlock, Vermelho Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22S-DRH-G-X1 216678 Y7-216678 EATON ELECTRIC M22S-DRH-G-X1Q botão de saída, Interlock, Vermelho

M22S-DRH-G-X1

216678

Y7-216678

EATON-MOELLER

M22S-DRH-G-X1Q botão de saída, Interlock, Vermelho

Botão saliente 22 mm Intertravado Inscrição verde: Anel X1

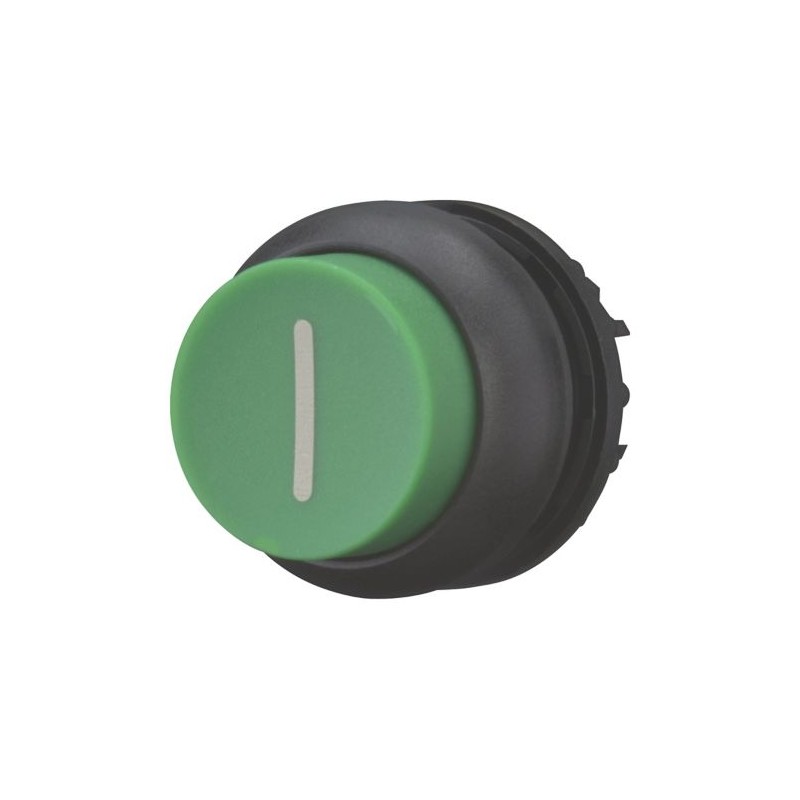

Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Extended, maintained, green, inscribed, Bezel: black

Botão de pressão, Gama de produtos: RMQ-Titan, Unidade única, Design: Estendido, Manutenção, Placa de botão: verde, Placa de botão inscrita, Grau de proteção: IP66, IP67, IP69K, Moldura: preto, Conexão SmartWire-DT: sim, com conexões SWD-RMQ, Dimensões frontais: 22 x 22, Instruções: A função de retenção / retorno da mola pode ser alterada no dispositivo, Normas: IEC/EN 60947, VDE 0660

Mais detalhes


Aparelhos elétricos de baixa tensão > Elemento frontal para botão de pressão

Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $15.03
Preço unitário: $15.03
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216678
Packing Unit
Pack
EAN
4015081831937
Quantity
5
Gross Weight
0.08 kg
Length
65 mm
Width
68 mm
Height
75 mm
Volume
331.5 cm³
ERP Name
SAP-UNITY
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE
CSA
CSA File No.: 012528
IEC/EN 60947
UL File No.: E29184
VDE 0660
CSA Class No.: 3211-03
UL 508
IEC/EN 60947-5
UL
DNV
GL
LR
Model Code
M22S-DRH-G-X1

Especificações do produto

Type
Pushbutton actuator
Actuator color
Green
Features
Labelled
Actuator function
Switching function latching
Maintained
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Operating frequency
1800 Operations/h
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Actuating force
5 N
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
80 °C
Ambient storage temperature - min
40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of command positions
1
Opening diameter
22.5 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Bezel color
Black
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Bezel material
Plastic
Design
Extended
Classical
Mounting position
As required
Degree of protection
NEMA 12
IP66
IP67
NEMA 3R
IP69K
NEMA 4X
NEMA 13
Degree of protection (front side)
NEMA 4X
IP67/IP69K
Inscription
Inscribed
Front element type
High
Functions
Stay-put/spring-return function can be changed on device
Lens type
Round
Lifespan, mechanical
1,000,000 Operations (AC operated)
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
RMQ-Titan
Size
Front dimensions: 22 x 22 mm

ETIM for 216678 Low-voltage industrial controls and switchgear (EC000221)
Característica Valor
Colour button (EF000190) Green
Number of command positions (EF001372) 1
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Type of button (EF001546) High
Suitable for lighting (EF001142) false
With protective cover (EF005500) false
Labelled (EF001537) true
Switching function latching (EF007447) true
Spring-return (EF001407) false
With front ring (EF006014) true
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
Degree of protection (IP), front side (EF003118) IP67/IP69K
