> EATON - MOELLER>Auxiliares de controle e sinalização >M22-DRH-R-X0 216675 M22-DRH-R-X0Q ELECTRIC M22-DRH-R-X0Q botão de saída, Interlock, Vermelho, gravado 0
Produto anterior Próximo produto

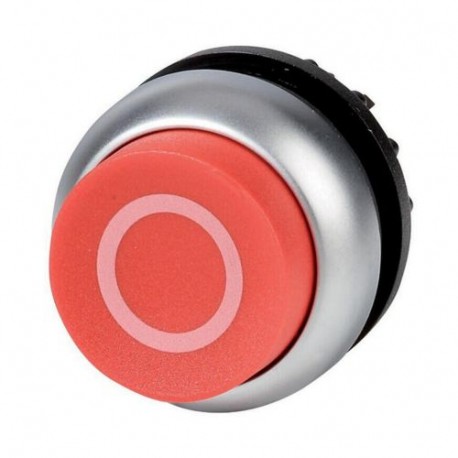

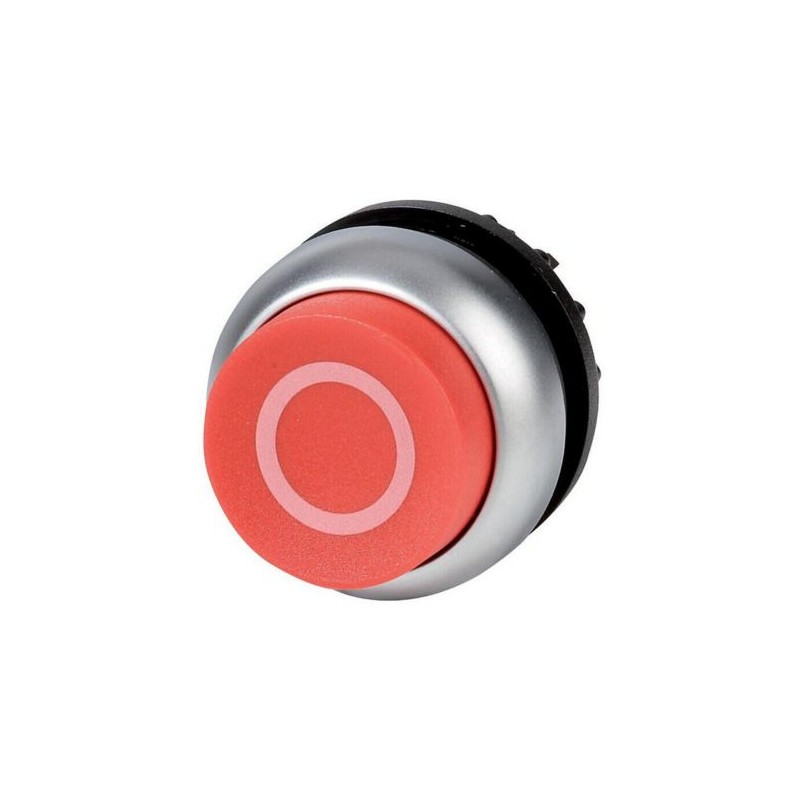

M22-DRH-R-X0 216675 M22-DRH-R-X0Q EATON ELECTRIC M22-DRH-R-X0Q botão de saída, Interlock, Vermelho, gravado 0 Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-DRH-R-X0 216675 M22-DRH-R-X0Q EATON ELECTRIC M22-DRH-R-X0Q botão de saída, Interlock, Vermelho, gravado 0

M22-DRH-R-X0

216675

M22-DRH-R-X0Q

EATON-MOELLER

5

M22-DRH-R-X0Q botão de saída, Interlock, Vermelho, gravado 0

Botão saliente 22 mm Intertravado Inscrição Vermelha: Anel X0

Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Extended, maintained, red, inscribed, Bezel: titanium

Mais detalhes


Disjuntores de baixa tensão > Elemento frontal para botão de pressão

Auxiliares de controle e sinalização

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $65.51
Preço unitário: $13.10

Quantidade Preço
5+$13.10
10+$11.53
15+$10.63
20+$10.12
25+$10.05
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216675
EAN
4015082166755
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA
CSA File No.: 012528
CSA-C22.2 No. 14-05
IEC/EN 60947
UL 508
VDE 0660
CSA-C22.2 No. 94-91
UL File No.: E29184
CE
CSA Class No.: 3211-03
IEC/EN 60947-5
UL
UL Category Control No.: NKCR
DNV
GL
LR
Model Code
M22-DRH-R-X0

Especificações do produto

Type
Pushbutton actuator
Actuator color
Red
Features
Labelled
Actuator function
Maintained
Switching function latching
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Operating frequency
1800 Operations/h
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Actuating force
5 N
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
80 °C
Ambient storage temperature - min
40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of command positions
1
Opening diameter
22.5 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Bezel color
Titanium
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Bezel material
Plastic
Design
Extended
Classical
Mounting position
As required
Degree of protection
IP67
NEMA 13
IP66
NEMA 3R
IP69K
NEMA 12
NEMA 4X
Degree of protection (front side)
IP67/IP69K
NEMA 4X
Inscription
Inscribed
Front element type
High
Functions
Stay-put/spring-return function can be changed on device
Lens type
Round
Lifespan, mechanical
1,000,000 Operations (AC operated)
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
RMQ-Titan
Size
Front dimensions: 22 x 22 mm

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
M22-DRH-R-X0 M22-DRH-R-X0Q 216675 EN_289241.pdf 3 Mbytes M22-DRH-R-X0 M22-DRH-R-X0Q 216675 EN_289241.pdf
