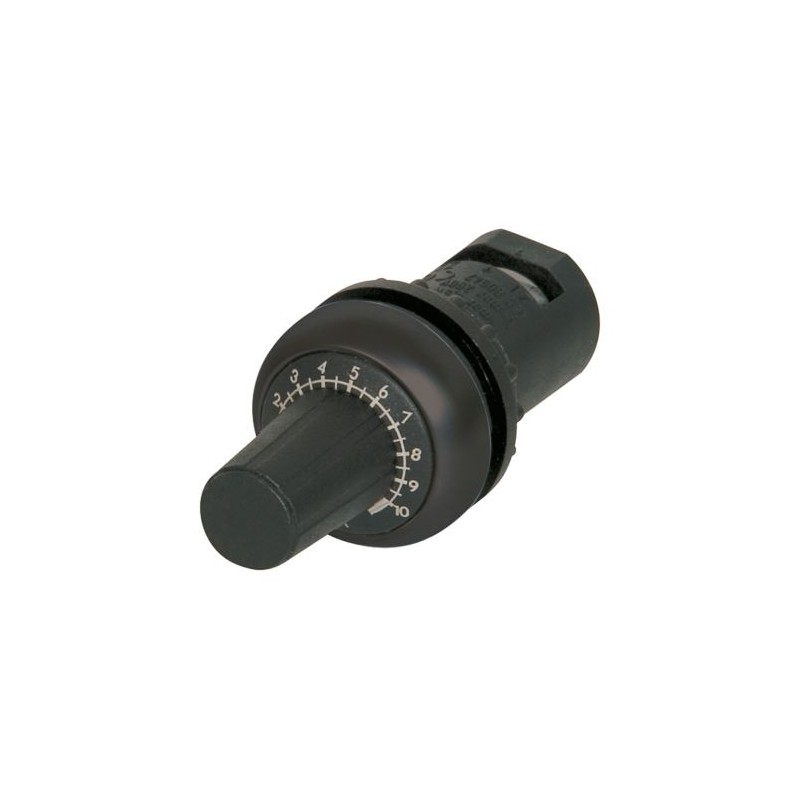

EATON - MOELLER M22S-R470K 232236 Y7-232236 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22S-R470K 232236 Y7-232236 EATON ELECTRIC M22S-R470KQ Potentiometer 470Kohm

Referência: M22S-R470K

Código: 232236

Número de catálogo: Y7-232236

Fabricante: EATON - MOELLER

Descrição:

M22S-R470KQ Potentiometer 470Kohm
Potenciômetro 22 mm R = 470 kOhm Anel de Titânio
Eaton Moeller® series M22 Potentiometer, Classical, M22, 22.5 mm, R 470 kΩ, P 0.5 W, Bezel: black
Potenciômetro, RMQ Design: Clássico, Referência do grupo de peças (por exemplo, DIL): M22, Diâmetro do furo de montagem: 22,5 mm, Unidade única, Descrição: 3 terminais de parafuso individuais, Precisão do valor da resistência: ± 10% (linear), Impedância: R= 470 kΩ, Potência nominal: P= 0,5 W, Grau de proteção: IP66, Moldura: preta, Conexão SmartWire-DT: não, Normas: IEC/EN 60947, VDE 0660

Categorias:

  • Aparelhos elétricos de baixa tensão > Potenciômetro para dispositivos de comando
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 42,11 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 3 semanas.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series M22 Potentiometer
Catalog Number
232236
EAN
4015082322366
Product Length/Depth
70 mm
Product Height
29 mm
Product Width
29 mm
Product Weight
0.034 kg
Certifications
CSA-C22.2 No. 14-05
UL
VDE 0660
UL File No.: E29184
IEC/EN 60947
CSA File No.: 012528
IEC/EN 60947-5
CSA
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
UL 508
CE
UL Category Control No.: NKCR
Model Code
M22S-R470K

Especificações do produto

Type
Potentiometer
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Screw connection
Fitted with:
3 individual screw terminals
Pollution degree
3
Accuracy
± 10 % (linear), Resistance value
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
No
Rated impulse withstand voltage (Uimp)
4000 V AC
Bezel color
Black
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of revolutions - max
1
Number of revolutions - min
1
Opening diameter
22.5 mm
Rated insulation voltage (Ui)
250 V
Rated operational current for specified heat dissipation (In)
0 A
Rated power
0.5 VA
Static heat dissipation, non-current-dependent Pvs
0.5 W
Design
Classical
Mounting position
As required
Overvoltage category
III
Degree of protection
IP66
NEMA Other
Power consumption
0.5 W
Lifespan, mechanical
25,000 Operations
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Resistance
470000 Ohm
Terminal capacity (solid)
0.5 - 1.5 mm²
Terminal capacity (stranded)
0.5 - 1.5 mm²
Tightening torque
0.5 Nm, Screw terminals

ETIM for 232236 Componentes industriais para Baixa Tensão (EC001027)

Nome da característicaResistência (EF002431)
Valor da característica470000 Ohm
Nome da característicaConsumo (potência em VA) (EF000346)
Valor da característica0.5 W
Nome da característicaDiâmetro do furo (intervalo) (EF000079)
Valor da característica22.5 mm
Nome da característicaNúmero de rotações (intervalo) (EF006943)
Valor da característica1
Nome da característicaAcabamento da conexão elétrica (EF003961)
Valor da característicaLigação com parafuso
Nome da característicaGrau de proteção (IP) (EF005474)
Valor da característicaIP66
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característicaOutro
