EATON - MOELLER M22-R100K 229493 Y7-229493 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

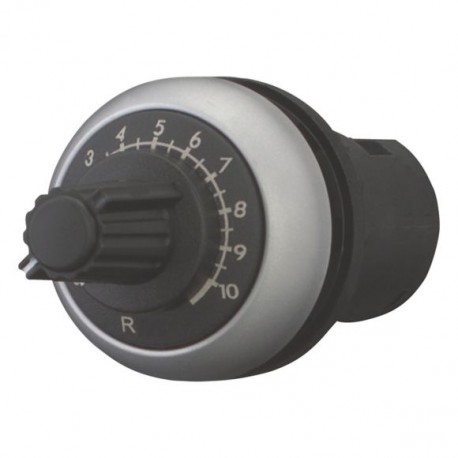

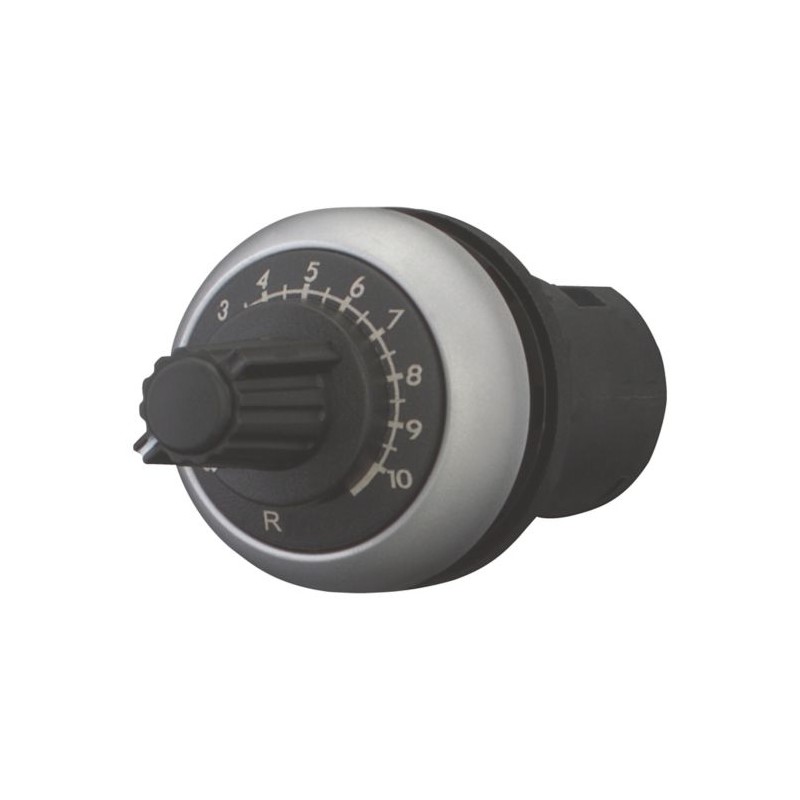

M22-R100K 229493 Y7-229493 EATON ELECTRIC M22-R100KQ potenciômetro 100 Kohm

Referência: M22-R100K

Código: 229493

Número de catálogo: Y7-229493

Fabricante: EATON - MOELLER

Descrição:

M22-R100KQ potenciômetro 100 Kohm
Potenciômetro 22 mm R = 100 kOhm Anel de Titânio
Eaton Moeller® series M22 Potentiometer, Classical, M22, 22.5 mm, R 100 kΩ, P 0.5 W, Bezel: titanium
Potenciômetro, versão RMQ: Clássico, Referência do grupo de peças (por exemplo, DIL): M22, Diâmetro do furo de montagem: 22,5 mm, Unidade única, Descrição: 3 terminais de parafuso individuais, Precisão do valor da resistência: ± 10% (linear), Impedância: R= 100 kΩ, Potência nominal: P= 0,5 W, Grau de proteção: IP66, Bisel: titânio, Conexão SmartWire-DT: não, Normas: IEC/EN 60947, VDE 0660

Categorias:

  • Aparelhos elétricos de baixa tensão > Potenciômetro para dispositivos de comando
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 38,85 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series M22 Potentiometer
Catalog Number
229493
EAN
4015082294939
Product Length/Depth
70 mm
Product Height
29 mm
Product Width
29 mm
Product Weight
0.034 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
EN 60947-5
CSA Std. C22.2 No. 14-05
UL 508
VDE
CE
CSA File No.: 012528
VDE 0660
CSA Class No.: 3211-03
UL File No.: E29184
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL
IEC/EN 60947-5
IEC/EN 60947
CSA-C22.2 No. 94-91
CSA
Model Code
M22-R100K

Especificações do produto

Type
Potentiometer
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Screw connection
Fitted with:
3 individual screw terminals
Pollution degree
3
Accuracy
± 10 % (linear), Resistance value
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Connection to SmartWire-DT
No
Rated impulse withstand voltage (Uimp)
4000 V AC
Bezel color
Titanium
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of revolutions - max
1
Number of revolutions - min
1
Opening diameter
22.5 mm
Rated insulation voltage (Ui)
250 V
Rated operational current for specified heat dissipation (In)
0 A
Rated power
0.5 VA
Static heat dissipation, non-current-dependent Pvs
0.5 W
Design
Classical
Mounting position
As required
Overvoltage category
III
Degree of protection
IP66
NEMA Other
Power consumption
0.5 W
Lifespan, mechanical
25,000 Operations
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Resistance
100000 Ohm
Terminal capacity (solid)
0.5 - 1.5 mm²
Terminal capacity (stranded)
0.5 - 1.5 mm²
Tightening torque
0.5 Nm, Screw terminals

ETIM for 229493 Componentes industriais para Baixa Tensão (EC001027)

Nome da característicaResistência (EF002431)
Valor da característica100000 Ohm
Nome da característicaConsumo (potência em VA) (EF000346)
Valor da característica0.5 W
Nome da característicaDiâmetro do furo (intervalo) (EF000079)
Valor da característica22.5 mm
Nome da característicaNúmero de rotações (intervalo) (EF006943)
Valor da característica1
Nome da característicaAcabamento da conexão elétrica (EF003961)
Valor da característicaLigação com parafuso
Nome da característicaGrau de proteção (IP) (EF005474)
Valor da característicaIP66
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característicaOutro
