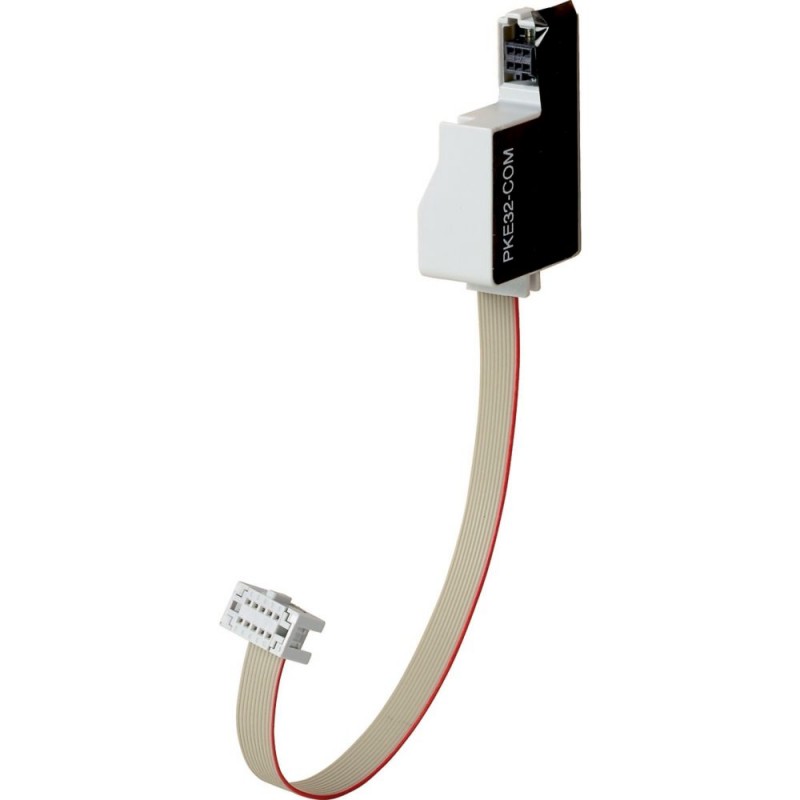

EATON - MOELLER PKE32-COM 168970 Y7-168970 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

PKE32-COM 168970 Y7-168970 EATON ELECTRIC Cabo de comunicação.

Referência: PKE32-COM

Código: 168970

Número de catálogo: Y7-168970

Fabricante: EATON - MOELLER

Descrição:

Cabo de comunicação.
Cabo de comunicação para SmartWire-DT
Eaton Moeller® series PKE32 Communication cable, PKE
Cabo de comunicação para conectar dispositivos básicos PKE com PKE-XTUA-... Blocos de disparo para partidas suaves DS7 com uma interface SmartWire-DT integrada (DS7-34DSX...) para monitoramento adicional (corrente do motor, status do interruptor, configurações do interruptor).

Categorias:

  • Aparelhos elétricos de baixa tensão > Acessórios para a tecnologia de comutação por baixa tensão
  • EATON - MOELLER > Chaves de proteção do motor eletrônico

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 44,52 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series PKE communication cable
Catalog Number
168970
EAN
4015081654611
Product Length/Depth
160 mm
Product Height
30 mm
Product Width
21 mm
Product Weight
0.007 kg
Compliances
CE
Model Code
PKE32-COM

Funcionalidades e Funções

Fitted with:
2 plugs
Functions
For connecting the PKE to DS7-SWD
Number Of Poles
Six-pole
Number Of Poles
Six-pole

Geral

Accessory/spare part type
Communication and measuring function
Product category
Accessories

Condições meteorológicas

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Comunicação

Connection to SmartWire-DT
Yes

Verificação do design

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 168970 Componentes industriais para Baixa Tensão (EC002498)

Nome da característicaTipo de acessório/peça de reposição (EF000215)
Valor da característicaComunicação e função de medição
Nome da característicaAcessório (EF013236)
Valor da característicaSim
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão

DATASHEET - PDF
