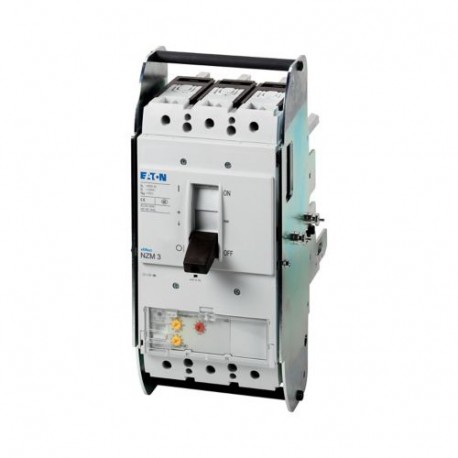

NZMH3-ME220-AVE 110855 Y7-110855 EATON ELECTRIC disjuntor motor, 3P, Iu: 220A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

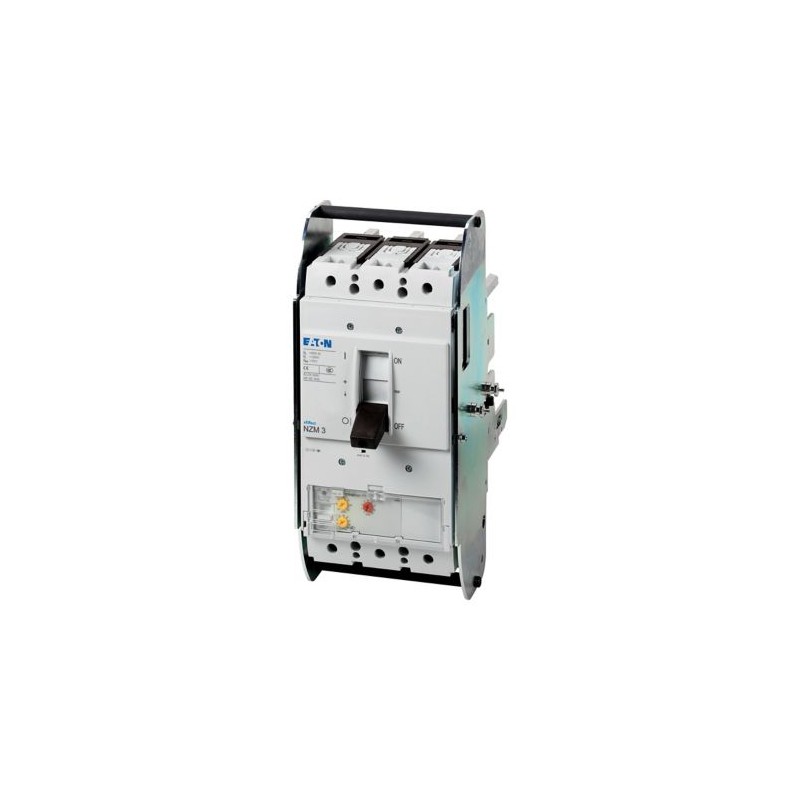

NZMH3-ME220-AVE 110855 Y7-110855 EATON ELECTRIC disjuntor motor, 3P, Iu: 220A

NZMH3-ME220-AVE

110855

Y7-110855

EATON-MOELLER

disjuntor motor, 3P, Iu: 220A

NZM Auto Intl., 3P, 220A, Removível

Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 220A, withdrawable unit, H3-ME220-AVE

Disjuntores NZM. -A série ME cobre todas as aplicações com apenas quatro tamanhos compactos e é adequada para o mercado IEC. A instalação é sempre flexível graças aos grupos de funções modulares. Com desbloqueio eletrónico para proteção do motor com sensibilidade a falhas de fase. Notas: IEC/EN 60947-4-1, IEC/EN 60947-2, medição RMS e memória térmica, ajuste de atraso de tempo ajustável para superar picos de corrente tr:2-20 a 6xIr, bem como infinito (sem liberação de sobrecarga)

Mais detalhes


Aparelhos elétricos de baixa tensão > Disjuntor de proteção do motor

NZM Molded Case Automatic Switches

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $3,242.90
Preço unitário: $3,242.90
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller series NZM molded case circuit breaker electronic
Catalog Number
110855
EAN
4015081103843
Product Length/Depth
260 mm
Product Height
346 mm
Product Width
185 mm
Product Weight
17.34 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947
IEC
Model Code
NZMH3-ME220-AVE

Dados técnicos - elétricos

Voltage rating
690 V - 690 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
202 A (690 V AC-3)
196 A (400 V AC-3)
Rated short-time withstand current (t = 0.3 s)
3.3 kA
Rated short-time withstand current (t = 1 s)
3.3 kA
Amperage Rating
220 A
Instantaneous current setting (Ii) - min
220 A
Instantaneous current setting (Ii) - max
3080 A
Overload current setting (Ir) - min
110 A
Overload current setting (Ir) - max
220 A
Short-circuit release non-delayed setting - min
440 A
Short-circuit release non-delayed setting - max
3080 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
33 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
9 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
143 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
74 kA
Rated operating power at AC-3, 230 V
55 kW
Rated operating power at AC-3, 400 V
110 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
60
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
2000 operations at 690 V AC-3
5000 operations at 415 V AC-1
3000 operations at 690 V AC-1
2000 operations at 400 V AC-3
2000 operations at 415 V AC-3
5000 operations at 400 V AC-1
Direction of incoming supply
As required

Dados técnicos - comunicação

Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
202 A (690 V AC-3)
196 A (400 V AC-3)
Rated short-time withstand current (t = 0.3 s)
3.3 kA
Rated short-time withstand current (t = 1 s)
3.3 kA
Amperage Rating
220 A
Instantaneous current setting (Ii) - min
220 A
Instantaneous current setting (Ii) - max
3080 A
Overload current setting (Ir) - min
110 A
Overload current setting (Ir) - max
220 A
Short-circuit release non-delayed setting - min
440 A
Short-circuit release non-delayed setting - max
3080 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
33 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
9 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
143 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
74 kA
Rated operating power at AC-3, 230 V
55 kW
Rated operating power at AC-3, 400 V
110 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
60
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
2000 operations at 690 V AC-3
5000 operations at 415 V AC-1
3000 operations at 690 V AC-1
2000 operations at 400 V AC-3
2000 operations at 415 V AC-3
5000 operations at 400 V AC-1
Direction of incoming supply
As required

Dados técnicos - mecânicos

Mounting Method
Withdrawable
Built-in device slide-in technique (withdrawable)
Degree of protection
IP20
IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side
IP66 (with door coupling rotary handle)
IP40 (with insulating surround)
Degree of protection (terminations)
IP10 (tunnel terminal)
IP00 (terminations, phase isolator and strip terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Electronic
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Lifespan, mechanical
15000 operations

ETIM for 110855 Low-voltage industrial controls and switchgear (EC000074)
Característica Valor
Overload release current setting (EF002336) 110 A
Adjustment range undelayed short-circuit release (EF007131) 220 A
With thermal overload protection (EF006233) true
Phase failure sensitive (EF007400) true
Switch off technique (EF007007) Electronic
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 220 A
Rated operation power at AC-3, 230 V (EF007025) 55 kW
Rated operation power at AC-3, 400 V (EF001364) 110 kW
Power loss (EF005387) None W
Type of electrical connection of main circuit (EF006819) Screw connection
Type of control element (EF006976) Rocker lever
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
With integrated auxiliary switch (EF001387) false
With integrated under voltage release (EF001390) false
Number of poles (EF001391) 3
Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) 130 kA
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 346 mm
Width (EF000008) 185 mm
Depth (EF000049) 260 mm

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
NZMH3-ME220-AVE Y7-110855 110855 DE_109670.pdf 833 Kbytes NZMH3-ME220-AVE Y7-110855 110855 DE_109670.pdf
