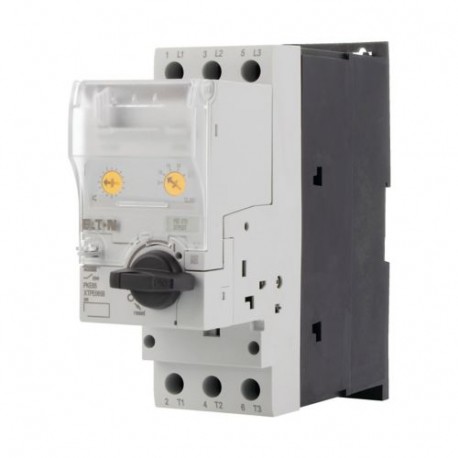

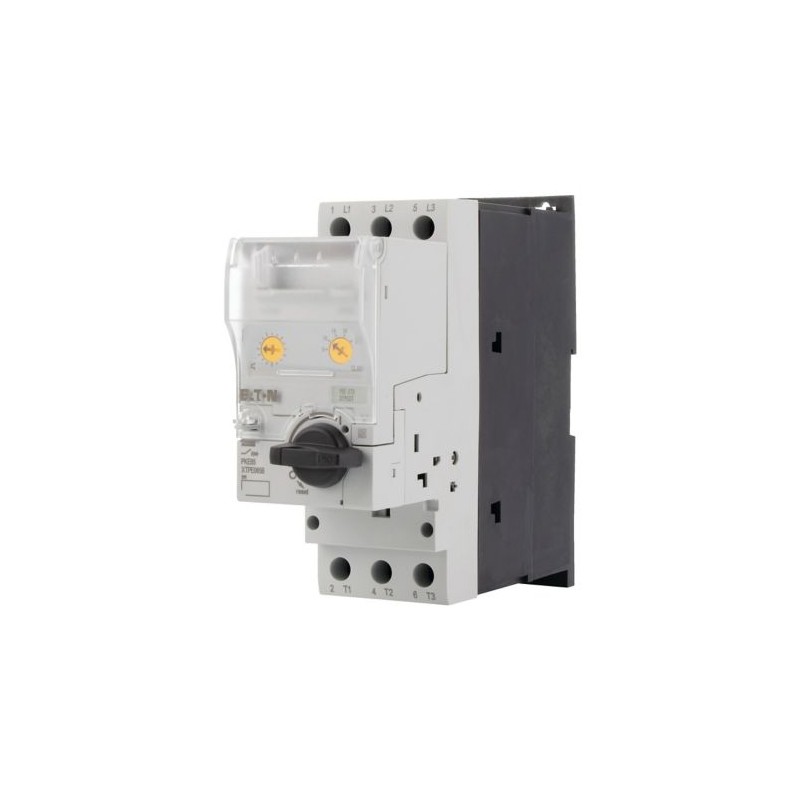

PKE65/XTU-65 138516 Y7-138516 EATON ELECTRIC interruptor XTPE065DCSNL proteção do motor, eletrônico, reg:. 1..
PKE65/XTU-65
138516
Y7-138516
EATON-MOELLER
interruptor XTPE065DCSNL proteção do motor, eletrônico, reg:. 16-65 A
Interruptor de proteção do motor eletrônico 3-Pole 8-32 A Appliance
Eaton Moeller® series PKE65 Motor-protective circuit-breaker, Complete device with standard knob, Electronic, 16 - 65 A, With overload release
Dispositivo completo do disjuntor de proteção do motor (dispositivo básico e unidade de controle eletrônico) de acordo com IEC60947-4-1, proteção eletrônica contra sobrecarga de amplo alcance (4:1), proteção contra falha de fase e desequilíbrio, classe de disparo ajustável, alta capacidade de interrupção de curto-circuito. Expansível com contato auxiliar, liberação de tensão, maçanetas de acoplamento de porta com limitação de corrente, acreditação ATEX
Aparelhos elétricos de baixa tensão > Disjuntor de proteção do motor
Chaves de proteção do motor eletrônico
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series PKE System-protective circuit-breaker
Catalog Number
138516
EAN
4015081352951
Product Length/Depth
187 mm
Product Height
162 mm
Product Width
55 mm
Product Weight
1.469 kg
Certifications
CE
CSA-C22.2 No. 60947-4-1-14
CSA
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 165628
UL
UL 60947-4-1
VDE 0660
IEC/EN 60947
CSA Class No.: 3211-05
IEC/EN 60947-4-1
CSA-C22.2 No. 60947-4-1-14
CSA
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 165628
UL
UL 60947-4-1
VDE 0660
IEC/EN 60947
CSA Class No.: 3211-05
IEC/EN 60947-4-1
Catalog Notes
This is a product for Environment A (Industrial). In environment B (household) this device may cause undesirable radio interference. In this case the user may be obliged to take appropriate measures.
Model Code
PKE65/XTU-65
Funcionalidades e Funções
Actuator type
Turn button
Features
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Fitted with:
Standard knob
Functions
Motor protection for heavy starting duty
Overload release
Motor protection
Overload release
Motor protection
Number of poles
Three-pole
Number of poles
Three-pole
Geral
Current flow times - min
For all combinations with an SWD activation, you need not adhere to the minimum current flow times and minimum cut-out periods.
900 (Class 15) AC-4 cycle operation, Main conducting paths
1000 (Class 20) AC-4 cycle operation, Main conducting paths
700 (Class 10) AC-4 cycle operation, Main conducting paths
500 (Class 5) AC-4 cycle operation, Main conducting paths
Note: Going below the minimum current flow time can cause overheating of the load (motor).
900 (Class 15) AC-4 cycle operation, Main conducting paths
1000 (Class 20) AC-4 cycle operation, Main conducting paths
700 (Class 10) AC-4 cycle operation, Main conducting paths
500 (Class 5) AC-4 cycle operation, Main conducting paths
Note: Going below the minimum current flow time can cause overheating of the load (motor).
Cut-out periods - min
≤ 500 ms, main conducting paths, AC-4 cycle operation
Degree of protection
IP20
Terminals: IP00
Terminals: IP00
Lifespan, electrical
50,000 operations (at 400V, AC-3)
Lifespan, mechanical
30,000 Operations (Main conducting paths)
Operating frequency
60 Operations/h
Overload release current setting - min
16 A
Overload release current setting - max
65 A
Overvoltage category
III
Pollution degree
3
Product category
Motor protective circuit breaker
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Suitable for
Also motors with efficiency class IE3
Temperature compensation
-5 - 40 °C to IEC/EN 60947, VDE 0660
-25 - 55 °C, Operating range
-25 - 55 °C, Operating range
Condições ambientais, mecânicas
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Condições meteorológicas
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Capacidades dos terminais
Terminal capacity (flexible with ferrule)
2 x (0.75 - 25) mm², ferrule to DIN 46228
1 x (0.75 - 35) mm², ferrule to DIN 46228
1 x (0.75 - 35) mm², ferrule to DIN 46228
Terminal capacity (solid)
1 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
Terminal capacity (solid/stranded AWG)
14 - 2
Stripping length (main cable)
14 mm
Tightening torque
3.3 Nm, Screw terminals, Main cable
1 Nm, Screw terminals, Control circuit cables
1 Nm, Screw terminals, Control circuit cables
Classificação elétrica
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
65 A
Rated operational power at AC-3, 220/230 V, 50 Hz
18.5 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
30 kW
Rated operational voltage (Ue) - min
690 V
Rated operational voltage (Ue) - max
690 V
Rated uninterrupted current (Iu)
65 A
Classificação de curto-circuito
Short-circuit current rating (group protection)
100 kA, 600 V High Fault, Fuse, SCCR (UL/CSA)
200 A, Class J, 600 V High Fault, max. Fuse, SCCR (UL/CSA)
200 A, Class J, 600 V High Fault, max. Fuse, SCCR (UL/CSA)
Short-circuit release
Trip block fixed 15.5 x Ir
± 20% tolerance, Trip blocks
Delayed approx. 60 ms, Trip blocks
Basic device fixed 15.5 x Iu, Trip Blocks
± 20% tolerance, Trip blocks
Delayed approx. 60 ms, Trip blocks
Basic device fixed 15.5 x Iu, Trip Blocks
Capacidade de comutação
Switching capacity
65 A, AC-3 up to 690 V
58 A, General use UL/CSA
58 A, General use UL/CSA
Classificação do motor
Assigned motor power at 115/120 V, 60 Hz, 1-phase
3 HP
Assigned motor power at 200/208 V, 60 Hz, 3-phase
15 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
10 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase
15 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
40 HP
Assigned motor power at 575/600 V, 60 Hz, 3-phase
40 HP
Comunicação
Connection
Screw terminals
Verificação do design
Equipment heat dissipation, current-dependent Pvid
21.6 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
7.2 W
Rated operational current for specified heat dissipation (In)
65 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Configuração de corrente da proteção contra sobrecargas (EF002336) | 16 A |
| Faixa de ajuste da disparo em curto-circuito não retardada (EF007131) | 1008 A |
| Com proteção térmica (EF006233) | Não |
| Sensível à falha de fase (EF007400) | Não |
| Técnica de disparo (EF007007) | Eletrónico |
| Tensão nominal de operação (EF001435) | 690 V |
| Corrente permanente nominal Iu (EF001389) | 65 A |
| Potência de operação nominal em AC-3, 230 V (EF007025) | 18.5 kW |
| Potência de operação nominal em AC-3, 400 V (EF001364) | 30 kW |
| Tipo de conexão elétrica do circuito principal (EF006819) | Ligação com parafuso |
| Tipo de elemento de controlo (EF006976) | Botão rotativo |
| Construção do dispositivo (EF008240) | Técnica de instalação fixa para dispositivo embutido |
| Com interruptor auxiliar integrado (EF001387) | Não |
| Com passagem de subtensão integrada (EF001390) | Não |
| Número de polos (EF001391) | 3 |
| Capacidade de interrupção nominal de curto-circuito Icu a 400 V, CA (EF007049) | 50 kA |
| Grau de proteção (IP) (EF005474) | IP20 |
| Altura (EF000040) | 162 mm |
| Largura (EF000008) | 55 mm |
| Profundidade (EF000049) | 187 mm |
