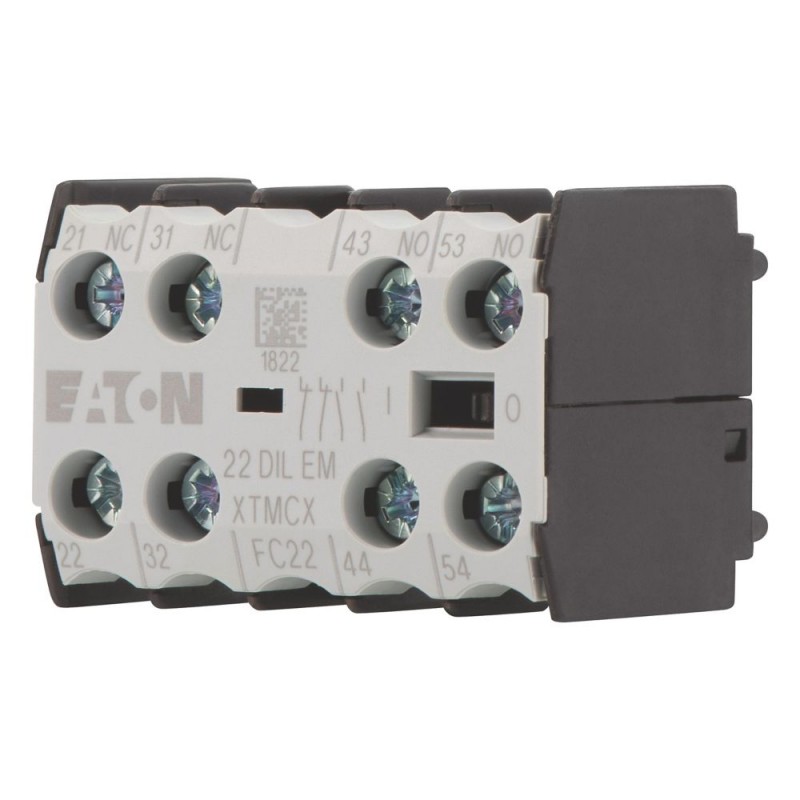

22DILEM 010112 Y7-10112 EATON ELECTRIC interruptor XTMCXFC22 Auxiliar, 2NA + 2NF Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

22DILEM 010112 Y7-10112 EATON ELECTRIC interruptor XTMCXFC22 Auxiliar, 2NA + 2NF

22DILEM

010112

Y7-10112

EATON-MOELLER

5

interruptor XTMCXFC22 Auxiliar, 2NA + 2NF

Bloco de contato auxiliar 2 NO + 2 NC Conexão de montagem frontal para

Eaton Moeller® series DILEM Auxiliary contact module, 4 pole, 2 N/O, 2 NC, Front fixing, Screw terminals, DILE(E)M

Módulo de contato auxiliar, com contatos opostos intertravados, Elementos de comutação de acordo com EN 50012, Elementos de comutação de acordo com EN 50012 são preferidos., As combinações da versão E correspondem à EN 50011 e são preferidas., Função: para aplicações padrão, 4 polos, Tecnologia de conexão: Terminais de parafuso, Corrente nominal de operação AC-15 220 V 230 V 240 V: Ie= 4 A, Corrente nominal de operação AC-15 380 V 400 V 415 V: Ie= 2 A, Contatos N/O = Normalmente aberto: 2 N/A, Contatos N/C = Normalmente fechado: 2 NF, Tipo de montagem: Montagem frontal, Para uso com: DILEM-10(-G)(...), DILEM-4(-G)(...), DILEEM-10(-G)(...), DILEM12-10(-G)(...) , Instruções: Contatos opostos intertravados de acordo com IEC/EN 60947-5-1 apêndice L, dentro dos módulos de contato auxiliares, também para os contatos auxiliares integrados do DILER, DILE(E)M, contatos auxiliares usados como contatos de espelho de acordo com IEC/EN 60947-4-1 Apêndice F (não abertura tardia N/C)

Mais detalhes


Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares

Contatores até 170A

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $99.00
Preço unitário: $19.80
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

geralmente comprados juntos

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series DILEM Accessory Auxiliary contact module
Catalog Number
010112
EAN
4015080101123
Product Length/Depth
36 mm
Product Height
32 mm
Product Width
45 mm
Product Weight
0.04 kg
Certifications
CSA Class No.: 3211-03
CSA File No.: 012528
IEC/EN 60947
UL
UL 508
IEC/EN 60947-4-1
UL Category Control No.: NKCR
UL File No.: E29184
VDE 0660
CSA
CSA-C22.2 No. 14-05
CE
Model Code
22DILEM

Funcionalidades e Funções

Electric connection type
Screw connection
Features
Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)
Fitted with:
Interlocked opposing contacts
Functions
For standard applications
Number of poles
Four-pole

Geral

Lifespan, mechanical
20,000,000 Operations (DC operated)
200,000 Operations (at 240 V, AC-15)
10,000,000 Operations (AC operated)
150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A)
Model
Top mounting
Mounting method
Front fastening
Mounting position
As required (except vertical with terminals A1/A2 at the bottom)
Operating frequency
9000 Operations/h
Overvoltage category
III
Pollution degree
3
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Shock resistance
10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
8 g, N/C contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Condições meteorológicas

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Capacidade dos terminais

Terminal capacity (flexible with ferrule)
2 x (0.75 - 1.5) mm²
1 x (0.75 - 1.5) mm²
Terminal capacity (solid)
2 x (0.75 - 2.5) mm²
1 x (0.75 - 2.5) mm²
Terminal capacity (solid/stranded AWG)
Single 18 – 14, double 18 – 14
Screwdriver size
2, Terminal screw, Pozidriv screwdriver
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
Tightening torque
1.2 Nm, Screw terminals

Classificação elétrica

Rated operational voltage (Ue) at AC - max
600 V
Rated insulation voltage (Ui)
690 V
Rated operational current (Ie)
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
4 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
2 A
Rated operational current (Ie) at AC-15, 500 V
1.5 A
Safe isolation
300 V AC, Between auxiliary contacts, According to EN 61140
300 V AC, Between coil and auxiliary contacts, According to EN 61140

Classificação de curto-circuito

Short-circuit protection rating
10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts
Short-circuit protection rating without welding
6 A gG/gL, 500 V, Max. Fuse, Contacts

Corrente térmica convencional

Conventional thermal current ith of auxiliary contacts (1-pole, open)
10 A

Capacidade de comutação

Switching capacity (auxiliary contacts, general use)
10 A, 600 V AC, (UL/CSA)
0.5 A, 250 V DC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
A600, AC operated (UL/CSA)
P300, DC operated (UL/CSA)

Contactos

Control circuit reliability
< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
2

Verificação do design

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.24 W
Rated operational current for specified heat dissipation (In)
4 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 010112 Componentes industriais para Baixa Tensão (EC000041)
Característica Valor
Número de contatos como inversores (EF008257) 0
Número de contatos como contato normalmente aberto (EF008256) 2
Número de contatos como contato normalmente fechado (EF008255) 2
Número de comutadores de sinal de erro (EF007613) 0
Corrente nominal de operação Ie em AC-15, 230 V (EF001385) 4 A
Acabamento da conexão elétrica (EF003961) Ligação com parafuso
Modelo (EF000010) Clip-on
Método de montagem (EF000003) Fixação frontal
Suporte da lâmpada (EF000048) Nenhum

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
22DILEM Y7-10112 010112 EN_230260.pdf 1 Mbytes 22DILEM Y7-10112 010112 EN_230260.pdf
