20DILE
010208
Y7-10208
EATON-MOELLER
1

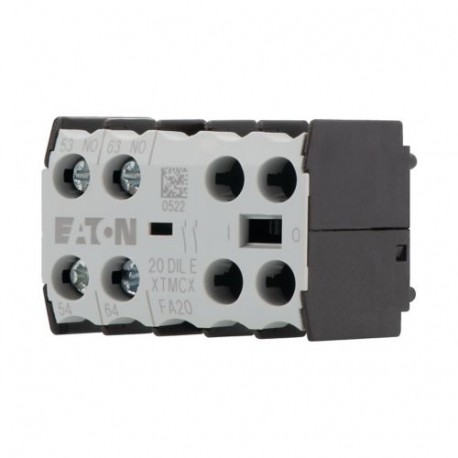

Contactar XTMCXFA20 aux. mini-2NA
Bloco de contato auxiliar 2 SEM conexão de montagem frontal para
Eaton Moeller® series DILE Auxiliary contact module, 2 pole, 2 N/O, Front fixing, Screw terminals, DILE(E)M, DILER
Módulo de contato auxiliar, com contatos opostos intertravados, Elementos de comutação de acordo com EN 50005, Elementos de comutação de acordo com EN 50012 são preferidos., As combinações da versão E correspondem à EN 50011 e são preferidas., Função: para aplicações padrão, 2 polos, Tecnologia de conexão: Terminais de parafuso, Corrente nominal de operação AC-15 220 V 230 V 240 V: Ie= 4 A, Corrente nominal de funcionamento AC-15 380 V 400 V 415 V: Ie= 2 A, Contactos N/O = Normalmente aberto: 2 N/A, Tipo de montagem: Montagem frontal, Para utilização com: DILEM-10(-G)(...), DILEM-01(-G)(...), DILEM-4(-G)(...), DILER40(-G), DILER31(-G), DILER22, DILEEM-10(-G)(...), DILEEM-01(-G)(...) , DILEM12-10(-G)(...), DILEM12-01(-G)(...), Instruções: Contactos opostos interligados de acordo com IEC/EN 60947-5-1 apêndice L, dentro dos módulos de contato auxiliares, também para os contatos auxiliares integrados do DILE(E)M, Contatos auxiliares usados como contatos de espelho de acordo com IEC/EN 60947-4-1 Apêndice F (sem abertura tardia N/C), Número de código e versão de combinação Número distintivo: 60 E, 51, 42
Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares
Contatores até 170A
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
| Product Name | Eaton Moeller® series DILE Accessory Auxiliary contact module |
| Catalog Number | 010208 |
| EAN | 4015080102083 |
| Product Length/Depth | 36 mm |
| Product Height | 32 mm |
| Product Width | 45 mm |
| Product Weight | 0.03 kg |
| Certifications | CE VDE 0660 CSA Class No.: 3211-03 CSA File No.: 012528 CSA-C22.2 No. 14-05 UL 508 IEC/EN 60947 UL IEC/EN 60947-4-1 UL File No.: E29184 UL Category Control No.: NKCR CSA |
| Model Code | 20DILE |
| Electric connection type | Screw connection |
| Features | Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L) |
| Fitted with: | Switching elements according to EN 50005 Interlocked opposing contacts |
| Functions | For standard applications |
| Number of poles | Two-pole |
| Lifespan, mechanical | 20,000,000 Operations (DC operated) 10,000,000 Operations (AC operated) 200,000 Operations (at 240 V, AC-15) 150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A) |
| Model | Top mounting |
| Mounting method | Front fastening |
| Mounting position | As required (except vertical with terminals A1/A2 at the bottom) |
| Operating frequency | 9000 Operations/h |
| Overvoltage category | III |
| Pollution degree | 3 |
| Protection | Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274) |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Shock resistance | 10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 8 g, N/C contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms |
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 50 °C |
| Ambient operating temperature (enclosed) - min | -25 °C |
| Ambient operating temperature (enclosed) - max | 40 °C |
| Ambient storage temperature - min | -40 °C |
| Ambient storage temperature - max | 80 °C |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
| Terminal capacity (flexible with ferrule) | 2 x (0.75 - 1.5) mm² 1 x (0.75 - 1.5) mm² |
| Terminal capacity (solid) | 2 x (0.75 - 2.5) mm² 1 x (0.75 - 2.5) mm² |
| Terminal capacity (solid/stranded AWG) | Single 18 – 14, double 18 – 14 |
| Screwdriver size | 2, Terminal screw, Pozidriv screwdriver 0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver |
| Tightening torque | 1.2 Nm, Screw terminals |
| Rated operational voltage (Ue) at AC - max | 600 V |
| Rated insulation voltage (Ui) | 690 V |
| Rated operational current (Ie) | 1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series) 0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series) 2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series) 2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series) |
| Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V | 4 A |
| Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V | 2 A |
| Rated operational current (Ie) at AC-15, 500 V | 1.5 A |
| Safe isolation | 300 V AC, Between auxiliary contacts, According to EN 61140 300 V AC, Between coil and auxiliary contacts, According to EN 61140 |
| Short-circuit protection rating | 10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts |
| Short-circuit protection rating without welding | 6 A gG/gL, 500 V, Max. Fuse, Contacts |
| Conventional thermal current Ith of auxiliary contacts (1-pole, open) | 10 A |
| Switching capacity (auxiliary contacts, general use) | 0.5 A, 250 V DC, (UL/CSA) 10 A, 600 V AC, (UL/CSA) |
| Switching capacity (auxiliary contacts, pilot duty) | A600, AC operated (UL/CSA) P300, DC operated (UL/CSA) |
| Code number | 60E 51 in combination with DILER-31(-G) 42 in combination with DILER-22 |
| Control circuit reliability | < 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA) |
| Number of contacts (change-over contacts) | 0 |
| Number of contacts (normally closed contacts) | 0 |
| Number of contacts (normally open contacts) | 2 |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0.24 W |
| Rated operational current for specified heat dissipation (In) | 4 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Característica | Valor |
|---|---|
| Número de contatos como inversores (EF008257) | 0 |
| Número de contatos como contato normalmente aberto (EF008256) | 2 |
| Número de contatos como contato normalmente fechado (EF008255) | 0 |
| Número de comutadores de sinal de erro (EF007613) | 0 |
| Corrente nominal de operação Ie em AC-15, 230 V (EF001385) | 4 A |
| Acabamento da conexão elétrica (EF003961) | Ligação com parafuso |
| Modelo (EF000010) | Clip-on |
| Método de montagem (EF000003) | Fixação frontal |
| Suporte da lâmpada (EF000048) | Nenhum |
| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| 20DILE Y7-10208 010208 PT_010208.pdf | 113 Kbytes |
![]() |
