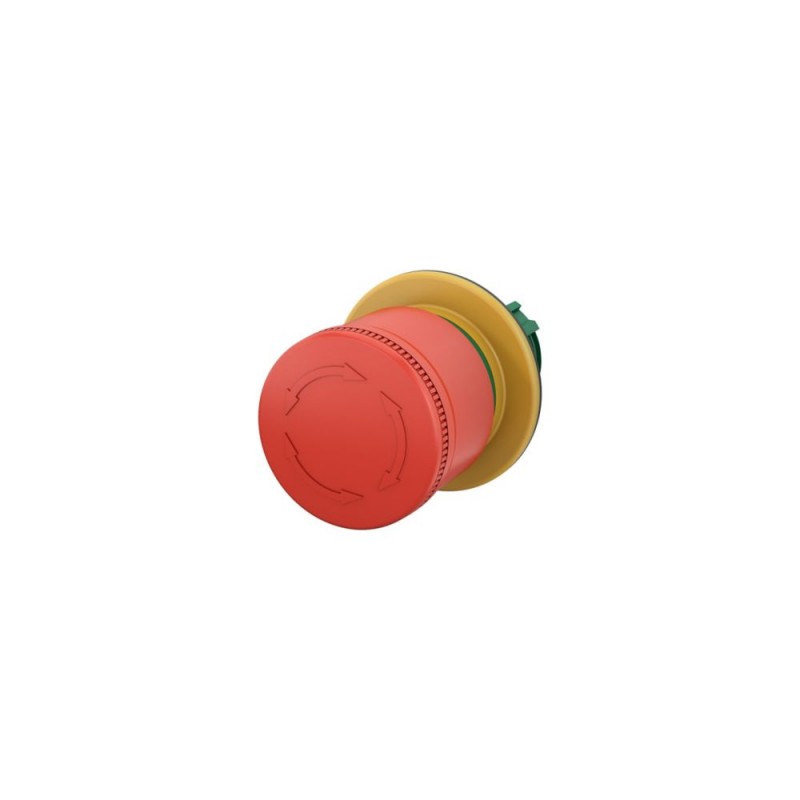

EATON - MOELLER M30-PVT30 197544 Y7-197544 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M30-PVT30 197544 Y7-197544 EATON ELECTRIC Botão de Parada de Emergência Mini Desbloqueio de torção

Referência: M30-PVT30

Código: 197544

Número de catálogo: Y7-197544

Fabricante: EATON - MOELLER

Descrição:

Botão de Parada de Emergência Mini; Desbloqueio de torção
Eaton Moeller® series M30 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom-shaped, Turn-to-release function M30-PVT30
Botão de paragem de emergência/desconexão de emergência, Gama de produtos: RMQ-Titan, Unidade única, Desenho: Em forma de cogumelo, Diâmetro: 30 mm, Iluminação: Não iluminado, Função de desbloqueio rotativo, Descrição: Inviolável de acordo com a norma ISO 13850/EN 418, Cor da cabeça em forma de cogumelo: Vermelho, Cor da base: amarelo, Grau de protecção: IP65, IP66, IP69, Ligação SmartWire-DT: não, Dimensões frontais: 35, Instruções: Número máximo de contatos: quatro M22-(C)K01, ... 10 ou dois M22-(C)K02, ... 20, … 11, Normas: EN 50581:2012, EN 60947-5-1:2017, EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017, EN ISO 13850:2015, Diretiva de Máquinas 2006/42/EC

Categorias:

  • Aparelhos elétricos de baixa tensão > Elemento frontal para botão de cogumelo
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 18,84 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series M30 Emergency stop/emergency switching off pushbutton
Catalog Number
197544
EAN
4015081942602
Product Length/Depth
30 mm
Product Height
32 mm
Product Width
30 mm
Product Weight
0.03 kg
Certifications
CCC
CE
EN ISO 13850
EN 50581
EN 60947-5-1
EAC
CSA
Machines 2006/42/EG
Model Code
M30-PVT30

Especificações do produto

Type
Controlled stop pushbutton/emergency-stop button
Actuator color
Red
Features
Tamper-proof (according to ISO 13850, EN 418)
Actuator function
Switching function latching
Turn-to-release
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Operating frequency
600 Operations/h
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
No
Base color
Yellow
Actuating force
50 N
Actuator diameter
30 mm
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter cap
30 mm
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
30.5 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Illumination
Non-illuminated
Bezel color
Other
Shock resistance
50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Bezel material
Other
Design
Classical
Mushroom-shaped
Mounting position
As required
Degree of protection
NEMA 4X
IP65
Front element type
High
Lens type
Round
Lifespan, mechanical
60,000 Operations
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
RMQ-Titan
Size
Front dimensions: 35 mm
Supply voltage lamp
0 V
Suitable for
Emergency stop
Unlocking method
Turn-release

ETIM for 197544 Componentes industriais para Baixa Tensão (EC001038)

Nome da característicaCor do botão (EF000190)
Valor da característicaVermelho
Nome da característicaForma de lente (EF006253)
Valor da característicaRedondo
Nome da característicaDiâmetro da tampa (EF001423)
Valor da característica30 mm
Nome da característicaDiâmetro do furo (intervalo) (EF000079)
Valor da característica30.5 mm
Nome da característicaLargura da abertura (EF004565)
Valor da característica0 mm
Nome da característicaAltura da abertura (EF004778)
Valor da característica0 mm
Nome da característicaGrau de proteção (IP) (EF005474)
Valor da característicaIP65
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característica4X
Nome da característicaTipo de botão (EF001546)
Valor da característicaAlto
Nome da característicaAdequado para iluminação (EF001142)
Valor da característicaNão
Nome da característicaCom iluminação (EF003829)
Valor da característicaNão
Nome da característicaTensão de alimentação da lâmpada (EF006522)
Valor da característica0 V
Nome da característicaFunção de comutação de encaixe (EF007447)
Valor da característicaSim
Nome da característicaRetorno por mola/tátil (EF001407)
Valor da característicaNão
Nome da característicaCom anel frontal (EF006014)
Valor da característicaNão
Nome da característicaMaterial do anel frontal (EF005972)
Valor da característicaOutro
Nome da característicaCor do anel frontal (EF002429)
Valor da característicaOutro
Nome da característicaAdequado para paragem de emergência (EF001433)
Valor da característicaSim
Nome da característicaMétodo de desbloqueio (EF001403)
Valor da característicaDesbloqueio por rotação
