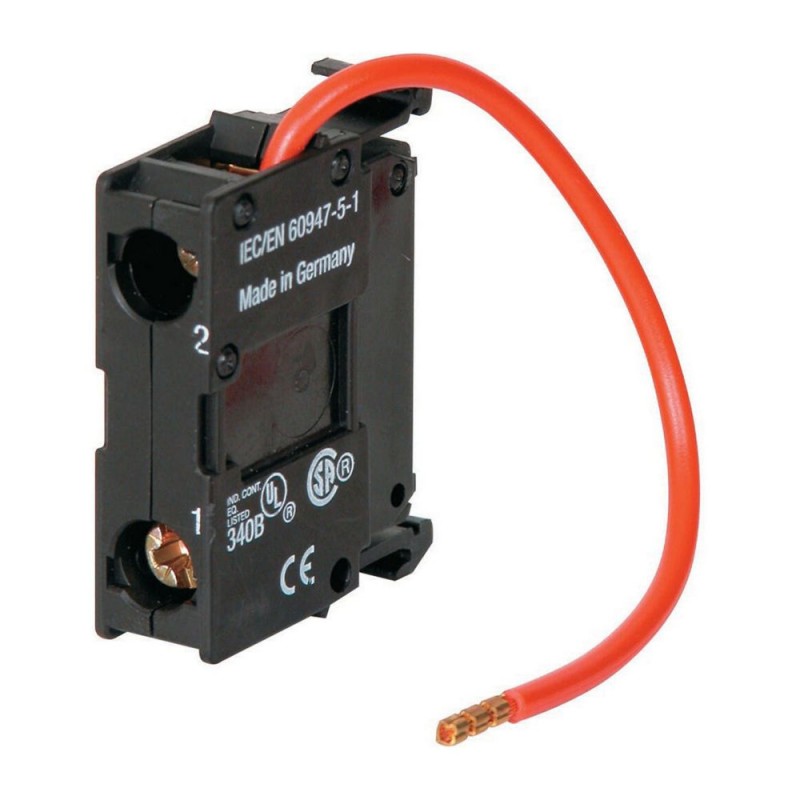

M22-XLED230-T 231080 M22-XLED230-TQ EATON ELECTRIC TQ-M22-XLED230 elemento de verificação de teste. lâmpadas
M22-XLED230-T
231080
M22-XLED230-TQ
EATON-MOELLER
10
TQ-M22-XLED230 elemento de verificação de teste. lâmpadas
Elemento da série 85-264 VAC para LEDs de 12-30 V
Eaton Moeller® series M22 Series element, 85-264VAC, for LED 12-30V
Disjuntores de baixa tensão > Acessórios para dispositivos de controle
Auxiliares de controle e sinalização
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲geralmente comprados juntos
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
231080
EAN
4015082310806
Product Length/Depth
37 mm
Product Height
30 mm
Product Width
10 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
EN 60947-5
UL 508
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
VDE
UL Category Control No.: NKCR
UL
UL File No.: E29184
CSA File No.: 012528
CSA Class No.: 3211-03
CSA
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
CE
IEC/EN 60947-5
UL 508
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
VDE
UL Category Control No.: NKCR
UL
UL File No.: E29184
CSA File No.: 012528
CSA Class No.: 3211-03
CSA
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
CE
IEC/EN 60947-5
Catalog Notes
LED test elements
Model Code
M22-XLED230-T
Especificações do produto
Accessory/spare part type
Accessory
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Connection to SmartWire-DT
No
Degree of protection
IP20
Functions
For de-coupled function test (lamp test)
Electrical accessory type
Resistor block
Rated operational voltage
85 - 264 V AC
Mechanical accessory type
Other
Voltage rating
85-264 V
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
80 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 23 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| M22-XLED230-T M22-XLED230-TQ 231080 ES_231078.pdf | 988 Kbytes |
|
