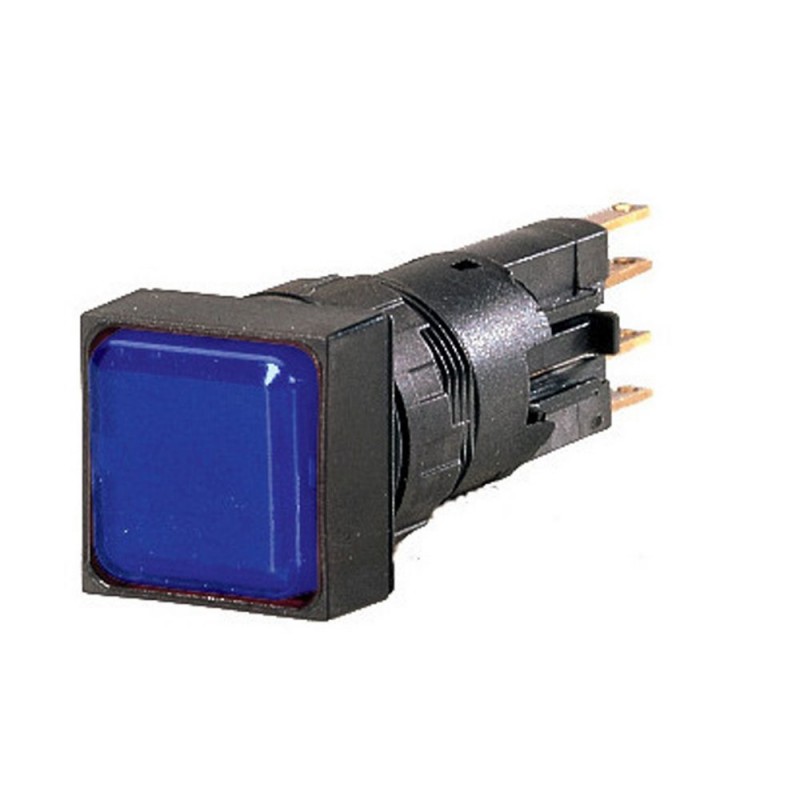

EATON - MOELLER Q18LF-BL 088270 Y7-88270 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

Q18LF-BL 088270 Y7-88270 EATON ELECTRIC Lâmpada plana, Azul

Referência: Q18LF-BL

Código: 088270

Número de catálogo: Y7-88270

Fabricante: EATON - MOELLER

Descrição:

Lâmpada plana, Azul
Luz indicadora de descarga 16 mm 18x18 mm Azul
Eaton Moeller® series RMQ16 Indicator light, flush, blue Q18LF-BL
Luz indicadora, gama de produtos: RMQ16, unidade única, design: plano, descrição: sem elementos de luz, com base, W2x4,6d; 30 V, 1 W, Cor da lente: Azul, Grau de proteção: IP65, Conexão SmartWire-DT: não, Dimensões frontais: Dimensões frontais 18 × 18 mm

Categorias:

  • Aparelhos elétricos de baixa tensão > Elemento frontal para luz indicadora
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Solicite um orçamento e verificaremos a disponibilidade das unidades. Caso não estejam disponíveis, um dos nossos técnicos procurará uma solução alternativa.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series RMQ16 Indicator light
Catalog Number
088270
Packing Unit
Pack
EAN
4015081840717
Quantity
10
Gross Weight
0.105 kg
Length
75 mm
Width
68 mm
Height
65 mm
Volume
331.5 cm³
ERP Name
SAP-UNITY
Product Length/Depth
59 mm
Product Height
18 mm
Product Width
18 mm
Product Weight
0.009 kg
Certifications
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CSA Class No.: 3211-03
CE
CSA File No.: 46552
UL Category Control No.: NKCR
UL
IEC/EN 60947
UL 508
CSA
UL File No.: E29184
Model Code
Q18LF-BL

Especificações do produto

Type
Indicator lights
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
LED W2x4, 6d, max. 30 V, 1 W
Pollution degree
3
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Connection to SmartWire-DT
No
Rated impulse withstand voltage (Uimp)
800 V AC
Bezel color
Black
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Bezel material
Plastic
Terminal capacity
0.5 - 1.0 mm²
Lens color
Blue
Design
Flat
Mounting position
As required
Terminal size
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
2.8 x 0.8 mm to DIN 46244, Blade terminal
Overvoltage category
III
Degree of protection
NEMA 1
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient operating temperature (enclosed) - min
25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
16 mm
Opening height
16 mm
Rated insulation voltage (Ui)
250 V
Rated operational current for specified heat dissipation (In)
0 A
Rated operational voltage (Ue) at AC - max
24 V
Static heat dissipation, non-current-dependent Pvs
0 W
Suitable for number of built-in signal lights
1
Width opening
0 mm
Product category
RMQ16
Size
Front dimensions: 18 x 18 mm
Degree of protection (front side)
IP65
Lens type
Square
Flat

ETIM for 088270 Componentes industriais para Baixa Tensão (EC000223)

Nome da característicaAdequado para o número de luzes de sinalização incorporadas (EF006669)
Valor da característica1
Nome da característicaCor da lente (EF000207)
Valor da característicaAzul
Nome da característicaForma de lente (EF006253)
Valor da característicaQuadrado
Nome da característicaDiâmetro do furo (intervalo) (EF000079)
Valor da característica16 mm
Nome da característicaLargura da abertura (EF004565)
Valor da característica0 mm
Nome da característicaAltura da abertura (EF004778)
Valor da característica16 mm
Nome da característicaCom anel frontal (EF006014)
Valor da característicaSim
Nome da característicaMaterial do anel frontal (EF005972)
Valor da característicaPlástico
Nome da característicaCor do anel frontal (EF002429)
Valor da característicaPreto
Nome da característicaTipo de lente (EF008343)
Valor da característicaPlano
Nome da característicaGrau de proteção (IP), frente (EF003118)
Valor da característicaIP65
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característica1
