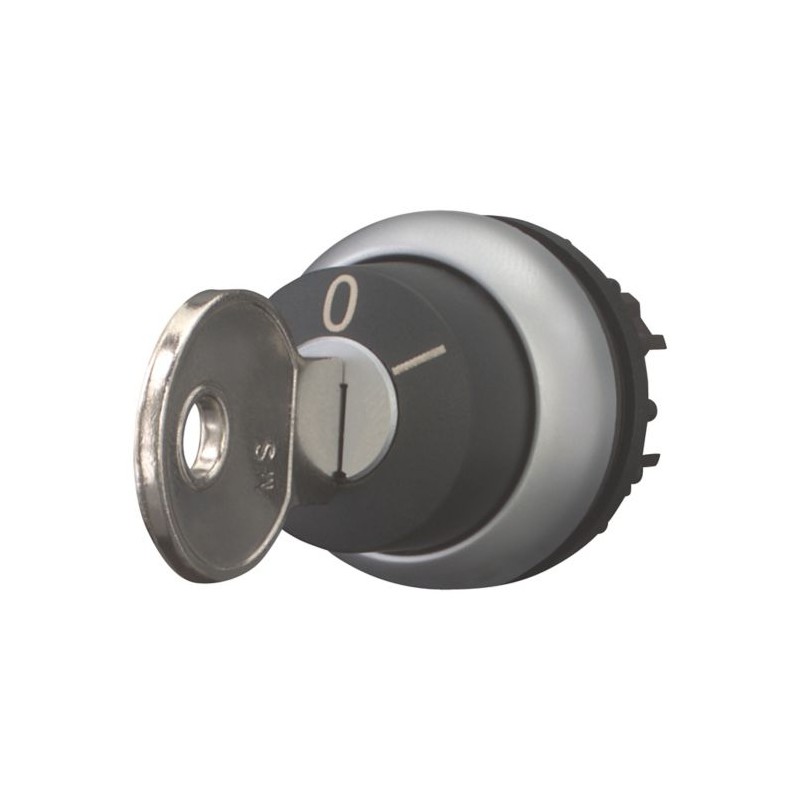

EATON - MOELLER M22-WRS-MS2 111778 Y7-111778 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

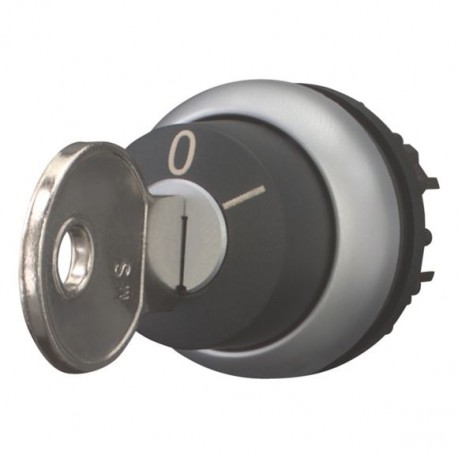

M22-WRS-MS2 111778 Y7-111778 EATON ELECTRIC M22-WRS-MS2Q seletor de chave 2 posições, bloqueando

Referência: M22-WRS-MS2

Código: 111778

Número de catálogo: Y7-111778

Fabricante: EATON - MOELLER

Descrição:

M22-WRS-MS2Q seletor de chave 2 posições, bloqueando
Chave Seletor Intertravamento 2 Posições Chave MS2 Anel Titânio
Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS2, Key withdrawable: 0, I, Bezel: titanium
Atuador acionado por chave, linha de produtos: RMQ-Titan, unidade única, projeto: operado por chave, mantido, não adequado para sistemas de chave mestra, 2 posições, mecanismo de travamento: MS2, I, grau de proteção: IP66, moldura: titânio, conexão com SmartWire-DT: sim, com conexões SWD-RMQ, instruções: permanecer na função de reentrada/posição de mola, pode ser alterado com peças codificadas M22-XC-Y, Remoção de chave conversível com adaptadores de codificação M22-XC-..., Com 1 chave, Padrões: IEC/EN 60947, VDE 0660, grau de proteção: IP66

Categorias:

  • Aparelhos elétricos de baixa tensão > Elemento frontal para interruptor seletor
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 37,73 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço
Envio em estoque amanhã. 1 Unidades.

Mais unidades, prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111778
EAN
4015081113286
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Compliances
CE Marked
Certifications
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 14-05
UL 508
CSA Std. C22.2 No. 94-91
VDE
UL File No.: E29184
CSA Class No.: 3211-03
UL Category Control No.: NKCR
IEC/EN 60947
VDE 0660
CE
CSA
CSA-C22.2 No. 94-91
CSA File No.: 012528
IEC/EN 60947-5
UL
CSA-C22.2 No. 14-05
Model Code
M22-WRS-MS2

Especificações do produto

Type
Key-operated button
Accessories
1 key included with supplied equipment.
Actuator color
Black
Actuator function
Switching function latching
Key withdrawable in position 0
Maintained
Key withdrawable in position 1
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Operating frequency
100 Operations/h
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Actuator type
Key
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
22.5 mm
Opening height
0 mm
Operating torque
0.5 Nm
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Switching angle
60 °
Width opening
0 mm
Bezel color
Titanium
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Color
Black
Key code
MS2
Bezel material
Plastic
Design
Key operated
Mounting position
As required
Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Indicator color
Other
Lens type
Round
Lifespan, mechanical
100,000 Operations
Number of switch positions
2
Product category
RMQ-Titan

ETIM for 111778 Componentes industriais para Baixa Tensão (EC000222)

Nome da característicaNúmero de posições do interruptor (EF000231)
Valor da característica2
Nome da característicaTipo de elemento de controlo (EF006976)
Valor da característicaChave
Nome da característicaAdequado para iluminação (EF001142)
Valor da característicaNão
Nome da característicaCor do elemento de atuação (EF007167)
Valor da característicaPreto
Nome da característicaCor da tampa da luz indicadora (EF007165)
Valor da característicaOutro
Nome da característicaForma de lente (EF006253)
Valor da característicaRedondo
Nome da característicaDiâmetro do furo (intervalo) (EF000079)
Valor da característica22.5 mm
Nome da característicaLargura da abertura (EF004565)
Valor da característica0 mm
Nome da característicaAltura da abertura (EF004778)
Valor da característica0 mm
Nome da característicaFunção de comutação de encaixe (EF007447)
Valor da característicaSim
Nome da característicaRetorno por mola/tátil (EF001407)
Valor da característicaNão
Nome da característicaCom anel frontal (EF006014)
Valor da característicaSim
Nome da característicaMaterial do anel frontal (EF005972)
Valor da característicaPlástico
Nome da característicaCor do anel frontal (EF002429)
Valor da característicaTitânio
Nome da característicaGrau de proteção (IP), frente (EF003118)
Valor da característicaIP66
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característica4X, 13
