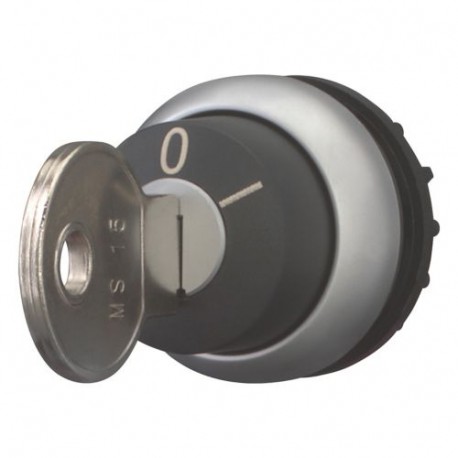

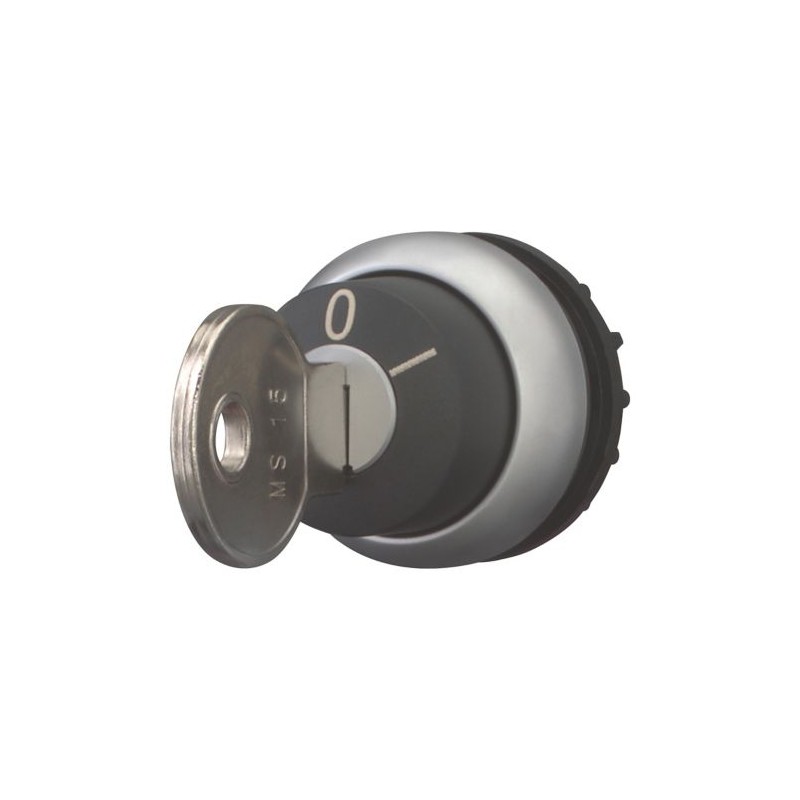

M22-WRS-MS15 111777 Y7-111777 EATON ELECTRIC M22-WRS-MS15Q seletor de chave 2 posições, bloqueando Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-WRS-MS15 111777 Y7-111777 EATON ELECTRIC M22-WRS-MS15Q seletor de chave 2 posições, bloqueando

M22-WRS-MS15

111777

Y7-111777

EATON-MOELLER

M22-WRS-MS15Q seletor de chave 2 posições, bloqueando

Chave Seletor Intertravamento 2 Posições Chave MS15 Anel

Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS15, Key withdrawable: 0, I, Bezel: titanium

Atuador com chave, Programa de produtos: RMQ-Titan, Unidade única, Design: Operado por chave, Manutenção, Não adequado para sistemas de chave mestra, 2 polos, Mecanismo de travamento: MS15, I, Grau de proteção: IP66, Luneta: titânio, Conexão SmartWire-DT: sim, com conexões SWD-RMQ, Instruções: Função de fixação/retorno por mola, pode ser alterada com peças de codificação M22-XC-Y, Extração de chave conversível com adaptadores de codificação M22-XC-..., Com 1 chave, Normas: IEC/EN 60947, VDE 0660, Grau de proteção: IP66

Mais detalhes


Aparelhos elétricos de baixa tensão > Elemento frontal para interruptor seletor

Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $55.61
Preço unitário: $55.61
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111777
EAN
4015081113279
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
EN 60947-5
UL 508
IEC 60947-5
VDE
CSA-C22.2 No. 14-05
VDE 0660
UL
UL File No.: E29184
CSA File No.: 012528
CE
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
IEC/EN 60947
UL Category Control No.: NKCR
DNV
GL
LR
Model Code
M22-WRS-MS15

Especificações do produto

Type
Key-operated button
Accessories
1 key included with supplied equipment.
Actuator color
Black
Actuator function
Key withdrawable in position 1
Maintained
Key withdrawable in position 0
Switching function latching
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Operating frequency
100 Operations/h
Pollution degree
3
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Connection to SmartWire-DT
With SWD-RMQ connections
Yes
Actuator type
Key
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
22.5 mm
Opening height
0 mm
Operating torque
0.5 Nm
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Switching angle
60 °
Width opening
0 mm
Bezel color
Titanium
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Key code
MS15
Bezel material
Plastic
Design
Key operated
Classical
Mounting position
As required
Overvoltage category
III
Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Indicator color
Other
Lens type
Round
Lifespan, mechanical
100,000 Operations
Number of switch positions
2
Size
Front diameter: 29.7 mm
Product category
RMQ-Titan

ETIM for 111777 Low-voltage industrial controls and switchgear (EC000222)
Característica Valor
Number of switch positions (EF000231) 2
Type of control element (EF006976) Key
Suitable for lighting (EF001142) false
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) true
Spring-return (EF001407) false
With front ring (EF006014) true
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-WRS-MS15 Y7-111777 111777 EN_289241.pdf 3 Mbytes M22-WRS-MS15 Y7-111777 111777 EN_289241.pdf
