EATON - MOELLER M22-WJ4-2P 110836 Y7-110836 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

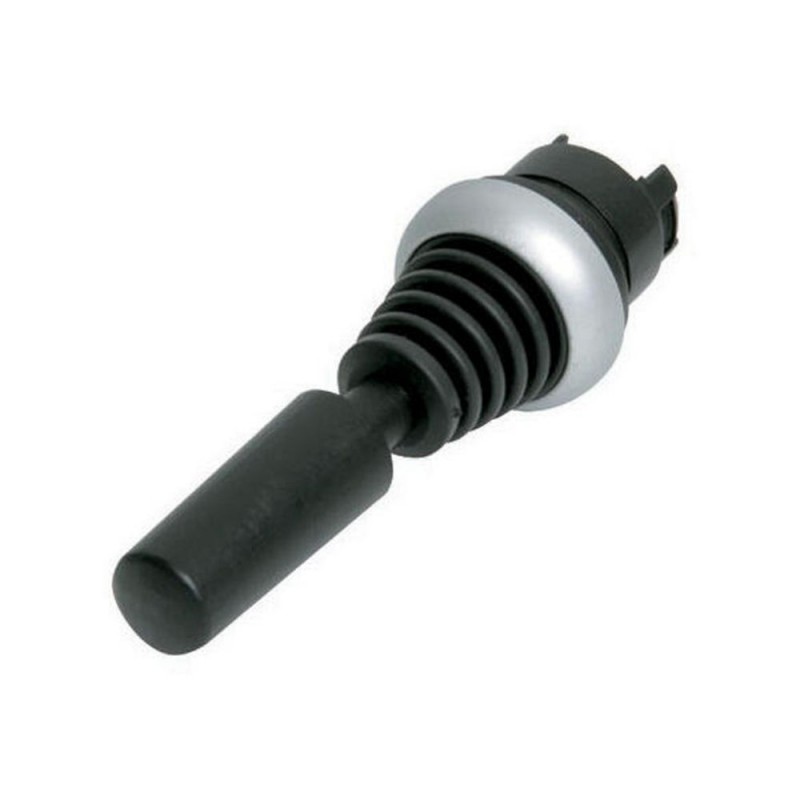

M22-WJ4-2P 110836 Y7-110836 EATON ELECTRIC M22-WJ4-2PQ Joystick

Referência: M22-WJ4-2P

Código: 110836

Número de catálogo: Y7-110836

Fabricante: EATON - MOELLER

Descrição:

M22-WJ4-2PQ Joystick
Joystick Return 4 posições 2 pontos de operação Titanium Ring
Eaton Moeller® series M22 Joystick, with 2 operating points per operating direction, With plastic shaft, 4 positions, Bezel: titanium, momentary
Joystick, Gama de produtos: RMQ-Titan, Unidade única, Descrição: com 2 pontos de operação por direção de operação, Com eixo de plástico, 4 posições, Grau de proteção: IP66, Moldura: titânio, Conexão SmartWire-DT: não, Dimensões frontais: - N/A -, Função: momentânea, Instruções: Estes joysticks são combinados com contatos normais normalmente abertos M22-K10 e NÃO contatos de fabricação antecipada M22-K10P., Padrões: IEC/EN 60947, VDE 0660

Categorias:

  • Aparelhos elétricos de baixa tensão > Interruptor de controle, joystick
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 57,24 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
110836
EAN
4015081103676
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Certifications
IEC/EN 60947
VDE 0660
Catalog Notes
These joysticks are combined with normal normally open contacts M22-K10 and NO early-make contacts M22-K10P.
Model Code
M22-WJ4-2P

Especificações do produto

Special features
2 operating points
Type
Joystick
Accessories
Plastic shaft
Product Category
RMQ-Titan
Actuator function
Momentary
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Retraction in 0-position
2 operating points per operating direction
Plastic shaft
Operating frequency
2000 Operations/h
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
No
Actuating force
5 N
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Joystick length
75 mm
Number of actuation directions
4
Number of contacts (normally closed) per actuation direction
0
Number of contacts (normally open) per actuation direction
0
Number of make-and-break contacts per direction
0
Number of switch levels
2
Opening diameter
22.5 mm
Rated operational current (Ie) at AC-21, 400 V, 415 V
0 A
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Bezel color
Titanium
Bezel material
Plastic
Mounting position
As required
Number of positions
4
Degree of protection
IP66
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

ETIM for 110836 Componentes industriais para Baixa Tensão (EC000632)

Nome da característicaCorrente nominal de operação em AC-21, 400 V (EF002417)
Valor da característica0 A
Nome da característicaMontagem central, diâmetro do furo (EF002424)
Valor da característica22.5 mm
Nome da característicaComprimento do joystick (EF006524)
Valor da característica75 mm
Nome da característicaNúmero de direções de atuação (EF002425)
Valor da característica4
Nome da característicaNúmero de posições do interruptor (EF000231)
Valor da característica2
Nome da característicaNúmero de contatos normalmente abertos por direção de atuação (EF002427)
Valor da característica0
Nome da característicaNúmero de contatos normalmente fechados por direção de atuação (EF008263)
Valor da característica0
Nome da característicaNúmero de contatos de abrir e fechar por direção (EF005599)
Valor da característica0
Nome da característicaCom retorno automático para a posição 0 (EF002428)
Valor da característicaSim
Nome da característicaBloqueio na posição 0 (EF006283)
Valor da característicaNão
Nome da característicaCodificador (EF005666)
Valor da característicaNão
Nome da característicaSinal de saída analógica configurável (EF003236)
Valor da característicaNão
Nome da característicaCom anel frontal (EF006014)
Valor da característicaSim
Nome da característicaMaterial do anel frontal (EF005972)
Valor da característicaPlástico
Nome da característicaCor do anel frontal (EF002429)
Valor da característicaTitânio
Nome da característicaGrau de proteção (IP) (EF005474)
Valor da característicaIP66
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característica4X, 13
